Beverage Air SPE72HC-30M-STL 72'' 3 Door Counter Height Mega Top Refrigerated Sandwich / Salad Prep Table
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air SPE72HC-30M-STL Specifications
Refrigerator Capacity | 20.02 cu. ft. |
---|---|
Nominal Width | 72 Inches |
Access Type | Doors |
Top Type | Mega Top |
Compressor Style | Side / Rear Breathing |
Construction | Stainless and Galvanized Steel |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Certifications | cULus |
Number of Doors | 3 |
Capacity | 19 - 32 cu. ft. |
Sections | 3 |
Style | Counter Height |
Voltage | 115 Volts |
Width (in) | 72 |
Height (in) | 62 |
Depth (in) | 38.38 |
Weight | 464.00 |

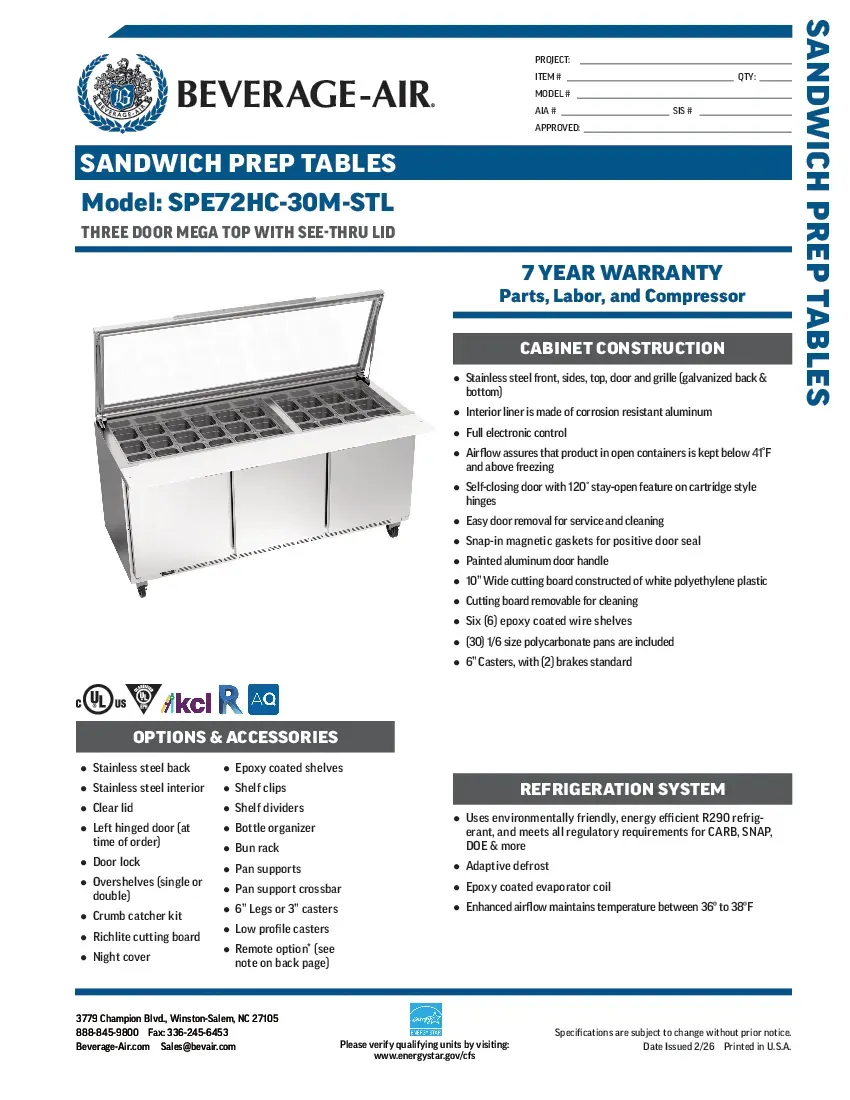

Additional Information on Beverage Air SPE72HC-30M-STL
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air SPE72HC-30M-STL Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air SPE72HC-30M-STL Description
Mega Top Refrigerated Counter, with see-thru lid, three-section, 72"W, 20.02 cu. ft. capacity, (3) doors, stainless steel top with opening for (30) 1/6 size pans, 10" cutting board, (6) shelves, stainless steel exterior top, front, sides & doors, galvanized steel exterior bottom and back, aluminum interior, rear-mounted self-contained refrigeration, (pans furnished are 4" deep, tops will accommodate 6" deep pans) R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAEstablishments that want to streamline their sandwich or salad production will find the Beverage Air SPE72HC-30M-STL Elite Series™ Mega Top Refrigerated Counter to be an excellent choice. With three refrigerated undercounter reach-in sections and 30 1/6 pans chilled beneath a single see-thru lid, this prep table will make salad and/or sandwich production very space-efficient and ergonomic.
The worktop consists of a cutting board that runs the full width of the unit providing plenty of space to do prep work. The cutting board is easily removed for cleaning. The refrigerated pan storage area does not run the full width of the work area providing space for sauces and ingredients that don’t need refrigeration. The pans included with this refrigerated counter are made from durable, easy-to-clean white polyethylene plastic.
Each reach-in cabinet has two epoxy-coated steel wire shelves to make the best use of the space and organize items. The liners of these refrigerators are made from corrosion-resistant aluminum that is easy to clean and maintain. The stainless steel doors lock in the cold air with snap-in gaskets that can be removed easily for maintenance or cleaning. The interior of each refrigerator is subjected to enhanced airflow which keeps the temperature between 36º and 38ºF.
At the bottom of the unit is the refrigeration system, this bottom-mounted design saves space and provides efficient cooling. The self-contained refrigeration system has a ¼ HP compressor that provides 1549 BTU/hr of cooling with hydrocarbon-based R290 refrigerant which is compliant to all modern environmental codes. The refrigeration system features full electronic control to efficiently control the temperature and a condensate evaporator that eliminates the need for a floor drain.
This unit ships from the factory with an 8’ power cable that terminates in a 5-15P plug to connect it to a standard 115v/60/1-ph power outlet.
This durable Beverage Air SPE72HC-30M-STL Elite Series? Mega Top Refrigerated Counter is equipped with a state-of-the-art refrigerated functionality. This worktable is 37.63 inches tall, 72 inches wide, and 37.88 inches deep.
- SPE Elite Series - Mega Top with See-Thru Lid
- Fifty percent greater pan capacity than the all around standard prep table.
- Features enhanced refrigeration system and new and improved grille system for better airflow and less temperature gradient.
- Improved design provides better airflow management and uniform temperature distribution throughout the cabinet. Pans are cooled from the bottom, eliminating the necessity of air blanket.
- Airflow assures that product in open containers is kept below 41°F and above freezing. This translates into increased product shelf life, higher quality food, better food appearance, fresher product and a reduction of bacteria build-up to combat food-borne illnesses.
- Cabinet Construction
- Cabinet back and bottom are constructed of galvanized steel.
- Interior liner is made of aluminum for superior resistance to corrosion.
- Six-inch casters, 2 with brakes, are standard. Legs are available as an option.
- A plug in type vinyl magnetic gasket is attached to each door for positive seal.
- Removable hoods and insulated lid assemblies are made of matching stainless steel.
- Cabinet insulation is CFC free foamed-in-place polyurethane of two-inch minimum thickness.
- Exterior construction includes heavy-duty stainless steel finish on front, sides, top, door(s) and grille.
- Cutting board supplied with cabinet is 10” wide constructed of high-density white polyethylene plastic. It is readily removable for cleaning.
- Two epoxy-coated steel wire shelves per section are supplied as standard. Pans furnished are 4” deep and made of polycarbonate plastic.
- Doors are mounted to face of cabinet on cartridge style hinges permitting them to self close under their own weight. Hinges also allow doors to stay open 120° and permit easy door removal for service and cleaning if required.
- Door handle is made from extruded aluminum with a black anodized finish. It is contoured to permit easy opening of doors with fingers from both top and bottom of handle.
- See-Thru Lid Construction
- Features 1-piece hinge with hydraulic lift. Self-closing lid features variable set points for height variations.
- Note: If sides are exposed to customer, side guards are required.
- Refrigeration System
- More robust refrigeration system provides added capacity and efficiency.
- Automatic condensate evaporator is provided to eliminate the need of floor drains.
- Recirculated, forced air from evaporator is moved under pans, which are recessed 2” from top of cabinet.
- Forced air over the condenser is drawn through grille under door as well as the back and bottom of cabinet.
- Systems are designed using CFC free R134a refrigerant and capillary tube between condenser and evaporator.
- Available Options
- Night covers
- Shelf dividers
- Dressing holder
- Crumb catchers
- Solid/tubular tray slides
- Composite cutting boards
- Overshelf-side guard kit with LED lighting
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
