Beverage Air SPE48HC-18M-STL 48'' 2 Door Counter Height Mega Top Refrigerated Sandwich / Salad Prep Table
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air SPE48HC-18M-STL Specifications
Refrigerator Capacity | 13.01 cu. ft. |
---|---|
Nominal Width | 48 Inches |
Access Type | Doors |
Top Type | Mega Top |
Compressor Style | Side / Rear Breathing |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Certifications | cULus |
Number of Doors | 2 |
Capacity | 12 - 18 cu. ft. |
Sections | 2 |
Style | Counter Height |
Voltage | 115 Volts |
Width (in) | 48 |
Height (in) | 59.75 |
Depth (in) | 38.38 |
Weight | 338.00 |

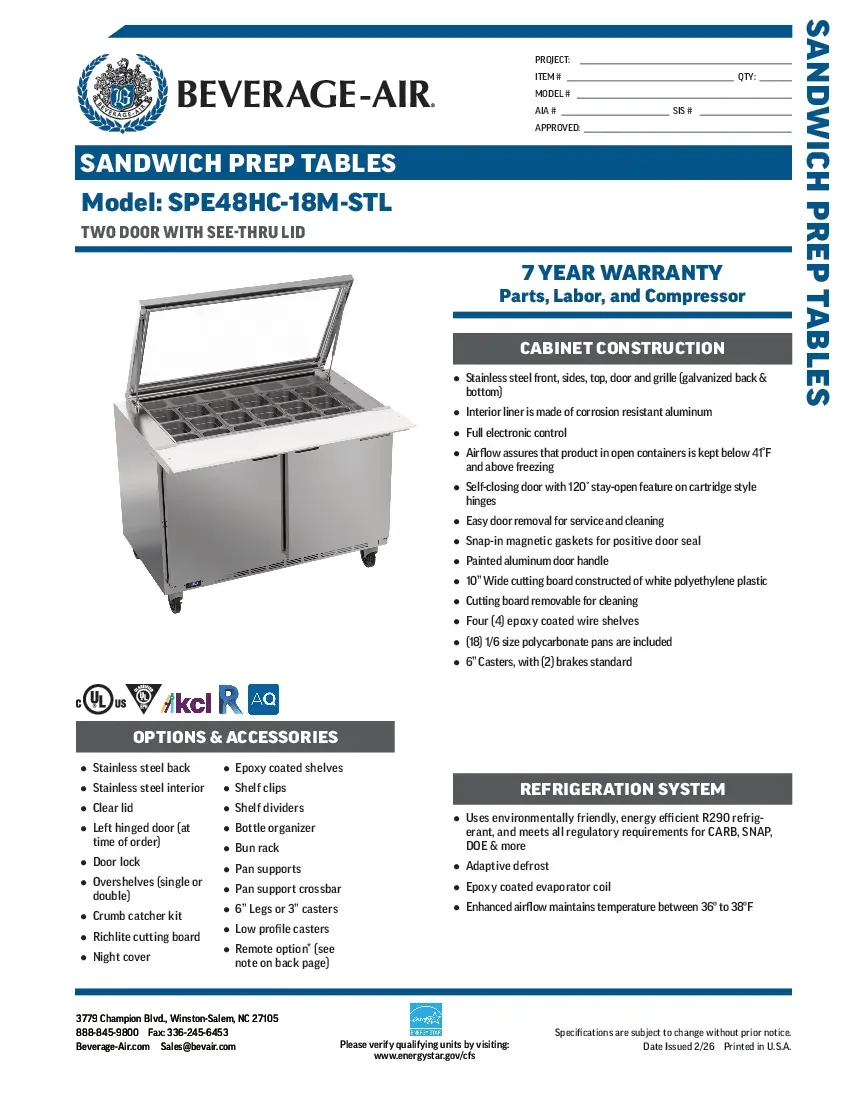

Additional Information on Beverage Air SPE48HC-18M-STL
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air SPE48HC-18M-STL Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air SPE48HC-18M-STL Description

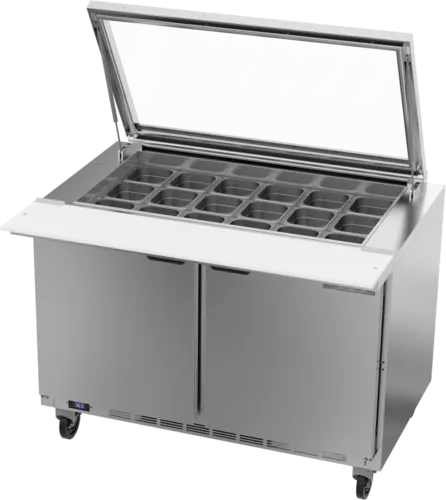

Mega Top Refrigerated Counter, with see thru-lids, two-section, 48"W, 13.01 cu. ft., (2) doors, (4) shelves, stainless steel top with opening for (18) 1/6 size pans, 10" cutting board, stainless steel exterior, aluminum interior, rear-mounted self-contained refrigeration, (pans furnished are 4" deep, tops will accommodate 6" deep pans) R290 Hydrocarbon refrigerant, 1/6 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAIf your establishment makes a lot of salads or sandwiches you can’t go wrong with the Beverage Air SPE48HC-18M-STL Elite Series™ Mega Top. With a clear lid providing a clear view of the eighteen ⅙ pans while extra ingredients can be stored in the refrigerated reach-in sections. The reach-in sections offer 13.01 cu. ft. of easy-to-access refrigerated storage. The worktop features a 10“ deep cutting board that runs the full width of the unit providing plenty of space to work on sandwiches. The eighteen ⅙ size pans in the cold bunker are kept nice and cool with enhanced airflow
The self-closing stainless steel doors on the reach-in sections are field reversible giving you the option to reconfigure them to best suit where it will be placed. Four epoxy-coated wire shelves are included to organize the items. Users will find the 120˚ stay-open feature handy since it will free up both their hands to access multiple items easily. An airtight seal is ensured by magnetic door gaskets.
The refrigeration system is self-contained and located at the bottom of the unit to save space. A ⅙ HP compressor that produces 1094 BTU/hr provides plenty of cooling to efficiently maintain a safe temperature. The evaporator coil features an epoxy coating which will keep the refrigerator running efficiently for many years with minimal maintenance. This along with the full electronic controls on the unit make maintaining the internal temperature from 36ºF to 38ºF efficient and reliable. Eco-friendly R290 hydrocarbon refrigerant has a low impact on the environment and it meets all regulations while proving safe sustainable cooling. The non-electric defrost cycle is non-electric and eliminates downtime.
For convenience, this refrigerated station is mounted on 6” casters allowing it to be easily moved when necessary. To keep it fixed in place the front casters are locking. The unit is easy to attach to a standard 115v/60/1-ph power source with its factory wired 8’ power cord with NEMA 5-15P plug set.
This handy Beverage Air SPE48HC-18M-STL Elite Series? Mega Top Refrigerated Counter chills food to safe temperatures while you prep items for service. This worktable is 37.63 inches tall, 48 inches wide, and 37.88 inches deep.
- SPE Elite Series - Mega Top with See-Thru Lid
- Fifty percent greater pan capacity than the all around standard prep table.
- Features enhanced refrigeration system and new and improved grille system for better airflow and less temperature gradient.
- Improved design provides better airflow management and uniform temperature distribution throughout the cabinet. Pans are cooled from the bottom, eliminating the necessity of air blanket.
- Airflow assures that product in open containers is kept below 41°F and above freezing. This translates into increased product shelf life, higher quality food, better food appearance, fresher product and a reduction of bacteria build-up to combat food-borne illnesses.
- Cabinet Construction
- Cabinet back and bottom are constructed of galvanized steel.
- Interior liner is made of aluminum for superior resistance to corrosion.
- Six-inch casters, 2 with brakes, are standard. Legs are available as an option.
- A plug in type vinyl magnetic gasket is attached to each door for positive seal.
- Removable hoods and insulated lid assemblies are made of matching stainless steel.
- Cabinet insulation is CFC free foamed-in-place polyurethane of two-inch minimum thickness.
- Exterior construction includes heavy-duty stainless steel finish on front, sides, top, door(s) and grille.
- Cutting board supplied with cabinet is 10” wide constructed of high-density white polyethylene plastic. It is readily removable for cleaning.
- Two epoxy-coated steel wire shelves per section are supplied as standard. Pans furnished are 4” deep and made of polycarbonate plastic.
- Doors are mounted to face of cabinet on cartridge style hinges permitting them to self close under their own weight. Hinges also allow doors to stay open 120° and permit easy door removal for service and cleaning if required.
- Door handle is made from extruded aluminum with a black anodized finish. It is contoured to permit easy opening of doors with fingers from both top and bottom of handle.
- See-Thru Lid Construction
- Features 1-piece hinge with hydraulic lift. Self-closing lid features variable set points for height variations.
- Note: If sides are exposed to customer, side guards are required.
- Refrigeration System
- More robust refrigeration system provides added capacity and efficiency.
- Automatic condensate evaporator is provided to eliminate the need of floor drains.
- Recirculated, forced air from evaporator is moved under pans, which are recessed 2” from top of cabinet.
- Forced air over the condenser is drawn through grille under door as well as the back and bottom of cabinet.
- Systems are designed using CFC free R134a refrigerant and capillary tube between condenser and evaporator.
- Available Options
- Night covers
- Shelf dividers
- Dressing holder
- Crumb catchers
- Solid/tubular tray slides
- Composite cutting boards
- Overshelf-side guard kit with LED lighting
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
