Beverage Air MMR23HC-1-B 27'' Black 1 Section Swing Refrigerated Glass Door Merchandiser
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air MMR23HC-1-B Specifications
Hinge Location | Right |
---|---|
Brand | Beverage Air |
Refrigerant Type | R-290 |
Number of Doors | 1 |
Made in | USA |
Certifications | cULus |
Door Style | Swing |
Capacity | 11 -30 cu. ft. |
Door Type | Glass |
Sections | 1 |
Voltage | 115 Volts |
Width (in) | 27 |
Height (in) | 78 |
Depth (in) | 33.63 |
Weight | 352.00 |

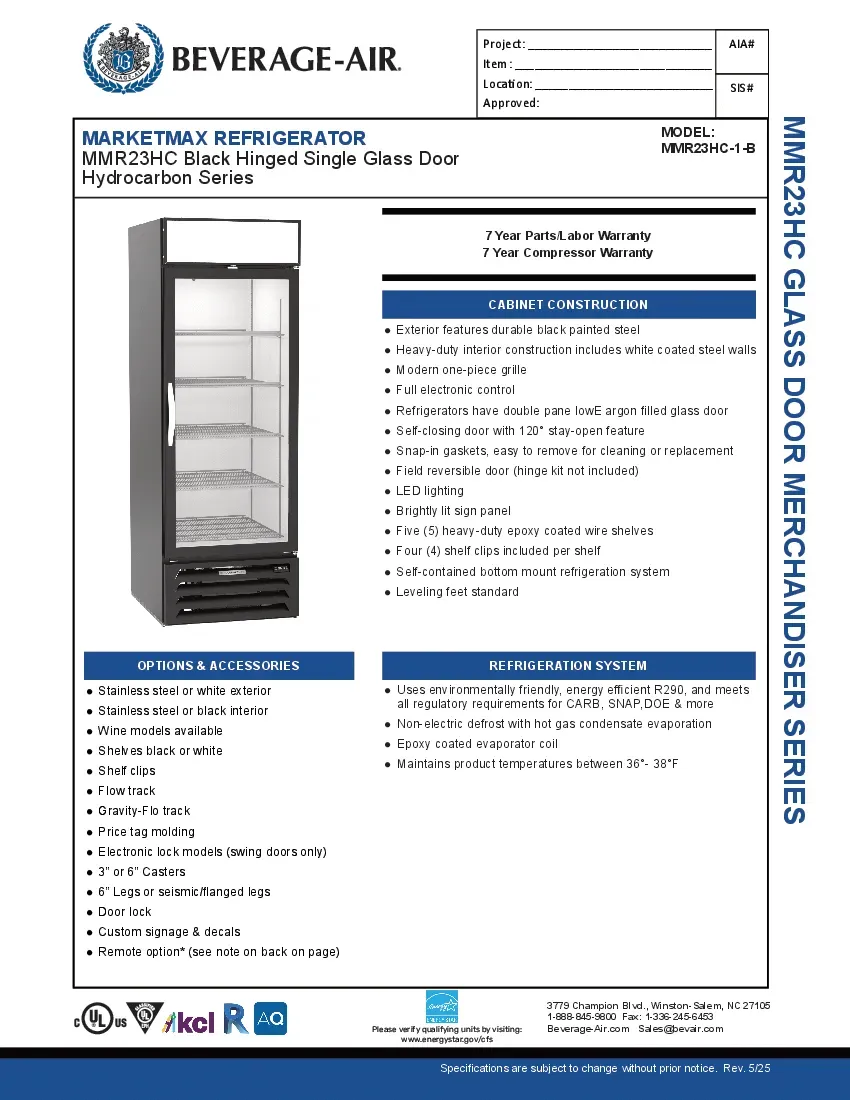

Additional Information on Beverage Air MMR23HC-1-B
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air MMR23HC-1-B Certifications

cULus
UL (Underwriters Laboratories) approval for the US and Canada

UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air MMR23HC-1-B Description
The MMR23HC-1-B MarketMax™ Refrigerated Merchandiser from Beverage Air is a space-efficient floor model with 23.1 cu. ft. of storage capacity. The exterior is finished in a durable black coating that will match your establishment’s decor and will maintain its looks for years to come. The interior comes with 5 epoxy coated wire shelves.
Products inside are easily seen and can grab customers’ attention with a well-lit interior. Fogging is never an issue since the triple-pane LowE glass door is filled with argon gas. The triple-pane construction offers superior insulation and the door is sealed with snap-in gaskets for ease of maintenance and cleaning. The door can be opened to 120º and will automatically stay open allowing for easier handling of the products inside.
The self-contained refrigeration system is located at the base of the refrigerator, a functional one-piece grille protects internal components while providing plenty of air for cooling. The ¼ HP compressor unit uses R290 Hydrocarbon refrigerant that complies with modern environmental standards while providing efficient cooling. The evaporator coil is coated in epoxy for durability and provides 1480 BTU/hr of cooling performance. The refrigerator is maintained at a temperature between 36°F and 38°F to keep products safe. The electronic control makes sure the temperature is maintained efficiently and an automatic electric defrost reduces downtime.
This freezer ships from the factory with an 8-foot power cord and plug set. The NEMA included 5-15P plug is designed for use with standard 115v/60/1-ph power at 3.0 amps of peak current draw.
Standard Features:
- Cabinet Construction
- Field reversible door
- Full electronic control
- LED lighting, standard
- Modern one-piece grille
- Brightly lighted sign panel
- Anti-microbial door handle
- Whisper quiet refrigeration system
- Four (4) shelf clips included per shelf
- Five (5) heavy duty epoxy coated wire shelves
- Self-contained bottom mount refrigeration system
- Refrigerator product temperatures from 36°F to 38°F
- Refrigerator have double pane lowE argon filled glass doors
- Snap-in gaskets, easy to remove for cleaning or replacement
- 120º stay open door feature, with automatic stay open feature
- Heavy duty interior construction includes white coated steel walls
- Exterior finish is heavy duty steel with a black baked on durable coating
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Remote
- Door locks
- Wine Racks
- Electronic lock models
- Custom signage & decals
- Wine temperature models
- 3” and 6” casters or 6” legs
- Black or stainless steel interior options
- White or stainless steel exterior options
