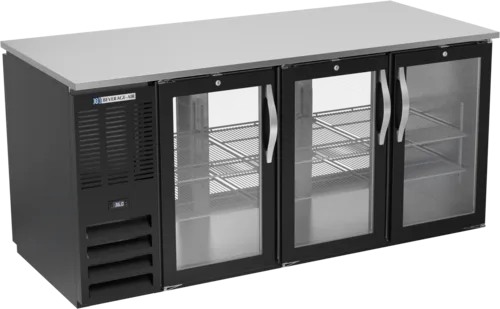

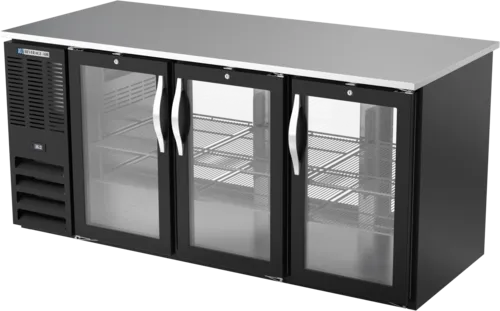

Beverage Air BB72HC-1-G-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet

Refrigerated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) glass doors with locks, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, galvanized steel interior with stainless steel floor, black exterior finish, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The BB72HC-1-G-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet from Beverage Air is a great option if you want your refrigerated back bar storage to do more than just keep beverages cool. This pass-thru unit has three glass doors on either side giving customers and users a clear view of what’s available. Doors on either side make serving and restocking much more convenient. This back bar refrigerator offers 22.1 cu. ft. of storage space and can hold three ½ kegs.

The doors are self-closing to prevent them from being left ajar. Two epoxy-coated wire shelves are included in each section to maximize the use of space while organizing items. To keep the doors’ seals airtight, magnetic door gaskets are included. When workers need to access multiple items they can activate the stay-open feature allowing them to use both hands. The forced-air refrigeration system provides balanced cooling that can quickly make the mercury plummet.

The side-mounted refrigeration system in this unit provides efficient cooling and can be ordered on either the left or right. The ⅓ HP compressor produces 1942 BTU/hr of cooling capacity. An epoxy coated-coated evaporator coil will make sure the refrigeration system will provide efficient cooling for many years. The temperature is maintained at between 36ºF and 38ºF efficiently by the fully electronic controls. This unit defrosts automatically with a non-electric system to eliminate downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.

Power is provided to the unit with the 8’ power cord that comes prewired from the factory with a NEMA 5-15P plug set for use with a standard outlet with 115v/60/1-ph power at 3.1 amps.

With this state-of-the-art Beverage Air BB72HC-1-G-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet, you can keep your bar free of clutter. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

• Cabinet Construction
  • LED lighting
  • Self-closing doors
  • Full electronic control
  • Field reversible doors
  • Galvanized sub-top standard
  • Black or stainless steel exterior
  • Heavy duty stainless steel floor
  • Stay-open feature & lock standard
  • Two (2) epoxy coated shelves per section, standard
  • Magnetic door gaskets provide positive door sealing
  • Interior construction utilizes galvanized steel on walls and ceiling
  • Compressor available on left or right, specify at time of unit order
• Refrigeration System
  • Epoxy coated evaporator coil
  • Automatic, non-electric evaporator
  • Balanced forced-air refrigeration system provides rapid chilling of product
  • Refrigeration system uses R290 refrigerant to comply with all environmental concerns
• Options & Accessories
  • Wire shelf dividers
  • 2” Stainless steel top
  • Foot pedal door opener
  • Solid or sliding glass doors
  • Food rated models available
  • 3”-6” casters or 6” black legs
  • Wine model (40º-60º models)
• Electrical Connection
  • Units pre-wired at factory and include 8’ long cord and plug set.
