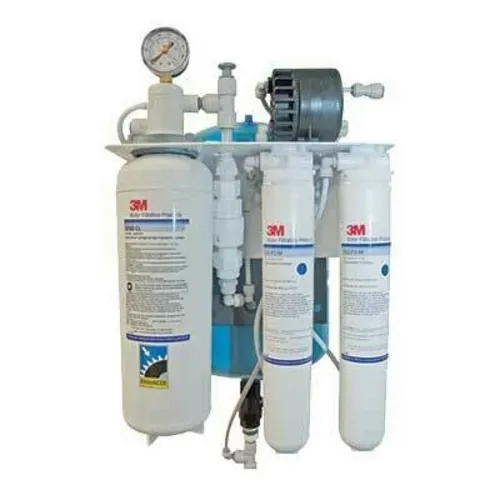

Vulcan V3MRO-2 Reverse Osmosis Water Filtration System
MPN#: V3MRO-2
Calculate
Vulcan V3MRO-2 Specifications
| Brand | Vulcan |
|---|---|
| Made in | USA |
Additional Information on Vulcan V3MRO-2
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan V3MRO-2 Description
Reverse Osmosis Water Filtration System, up to 200 gpd capacity (double combi units), minimum 60 psi/maximum 125psi, minimum 40°/maximum 100°, Common treatment for sediment, chloramines, chlorine, chloride, hardness & TDS reduction, integrated pump & storage tank, includes: wall-mount bracket, quick disconnect plumbing & special installation fittings kit for Vulcan Combi Oven/Steamers with standard 3/4" water lines & spray hose
Reverse Osmosis Water Filtration System, up to 200 gpd capacity, minimum 60 psi/maximum 125psi, minimum 40°/maximum 100°, Common treatment for sediment, chloramines, chlorine, scale, hardness & TDS reduction, integrated pump & storage tank, includes: steel bracket, wall-mount, quick disconnect plumbing, cleaning bypass assembly, water test strips & connection fittings for Vulcan Combi Oven/Steamers with standard 3/4" water lines
Standard Features:
Standard Features:
- System incorporates non-electric pump.
- System incorporates reverse osmosis technology.
- System includes an integrated water storage tank.
- RO membrane is a thin film composite (TFC) type.
- Compact design allows for installation in tight areas.
- System is wall mountable with a steel bracket design.
- System wetted materials are FDA CFR-21 and/or NSF compliant.
- Integrated pump requires no power; operates on incoming water pressure.
- Includes connection fittings for standard 3⁄4" water lines of a Vulcan Combi.
- System incoming water pressure must be between 60 and 100 psig or external pump is required.
- System minimum incoming water temperature of 40°F (4.4°C) and a maximum of 100°F (37.8°C).
- Cartridge interconnect system allows for quick and easy cartridge change-outs. No spills, no mess.
- Sanitary Quick Change (SQC) encapsulated cartridges reduce media contamination during change-outs.
- System minimum incoming water pressure of 60 psi (414 kPa) and a maximum of 125 psi (689 kPa) + 15%.
- System contains integrated pre-filtration for the reduction of sediment, chloramines and chlorine taste and odor.
Specifications
The Vulcan Reverse Osmosis Water Filtration System, by 3M™, is designed to reduce many of the water contaminants that can cause scale build-up and corrosion. Production capacity of 100 gpd (V3MRO-1) or 200 gpd (V3MRO-2) with integrated pump & storage tank. For common treatment and reduction of sediment, chloramines, chlorine, scale, hardness & TDS, via carbon and membrane filters. Includes: steel mounting bracket, wall-mount capable, quick disconnect plumbing, cleaning bypass assembly, & connection fittings for standard 3⁄4" water lines of Vulcan Combi Oven/Steamers. Incoming water pressure and temperature to filtration: Minimum 60 psi/ maximum 125psi, minimum 40°F/maximum 100°F. Minimum 60 psi (413.6 kPa) feedwater pressure required. RO production rates listed are at a water pressure and temperature of 50 PSI and 77°F producing water at atmosphere.
