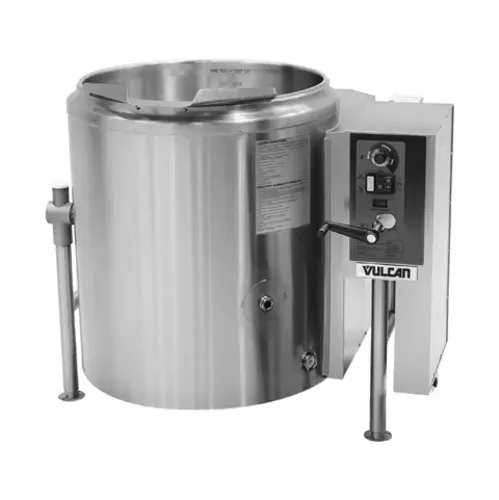

Vulcan K40GLT Tilting Kettle

• Embossed gallon/liter markings.
• 50 psi (3.4 kg/cm2) steam jacket rating.
• One year limited parts and labor warranty.
• Kettle tilts forward 95° to completely empty.
• Tubular stainless steel legs with flanged feet.
• Elevation from sea level to 8,999 feet standard.
• Bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).
• Gas self-contained, stainless steel, 2⁄3 jacketed floor mounted tilting steam kettle.
• Stainless steel enclosure for “water resistant” controls, self-locking tilt mechanism and faucet bracket.
• Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
• Controls include a power switch, power “on” light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and lower water shut-off.

Options

• Correction facility package:
  • Controls protected with lockable cover.
  • Security type fasteners with tack welds.
• Second year extended limited parts and labor warranty.
• Stainless steel protector for the draw-off valve with chain.
• Two inch bolt on plug tangent draw-off valve with perforated strainer.
• Two inch bolt on compression tangent draw-off valve with perforated strainer.
• Three inch bolt on compression tangent draw-off valve with perforated strainer increases height of kettle.

Accessories (Packaged & Sold Separately)

• Pouring lip strainer.
• Stainless steel 48" whip.
• Double pantry pot filler with lead-free vacuum breaker.
• (12") (18" double jointed) single pantry lead-free faucet.
• (12") (18" double jointed) double pantry lead-free faucet.
• Double pantry washdown hose with lead-free vacuum breaker.
• Solid disk to prevent food from entering the draw-off tube during cooking.
• Double pantry washdown hose with 16" add-on lead-free faucet with vacuum breaker.
• Spring assist hinged stainless steel cover with condensate ring and drop down lift handle.
• Clean-up kit, includes draw-off brush, clean-up brush and paddle scrapper with 40" handle.
• Perforated stainless steel basket assembly (single – 20 gallon) (triple – 20 through 60 gallon).

Specifications
Gas self-contained, stainless steel fully insulated, 2⁄3 jacketed floor mounted tilting steam kettle. Ellipsoidal bottom kettle liner formed and fully welded type 316 and type 304 stainless steel exterior with (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater) heavy bar rim, embossed gallon/liter markings. 50 psi (3.4 kg/cm2) steam jacket rating. Stainless steel splash proof enclosure for controls, self-locking tilt mechanism and faucet bracket. Controls include a power switch, power “on” light, solid state temperature control with graduated warm, simmer and boil setting, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off. Gas control with combination gas valve, flame failure and gas type is field convertible. High efficiency Power Burner Heating System (64% to 68% efficiency). Kettle tilts forward 95° to completely empty. Tubular stainless steel legs with removable section and flanged feet. Steam jacket permanently filled with treated, distilled water. 110-120V, 50-60 Hz, 5A, with 6 foot cord and three-prong grounding plug. UL Certified to ANSI Z83.11/CSA 1.8. Certified to NSF Standard #4. Meets ASME. Span Gas Technology enables field adjustable to propane gas.
