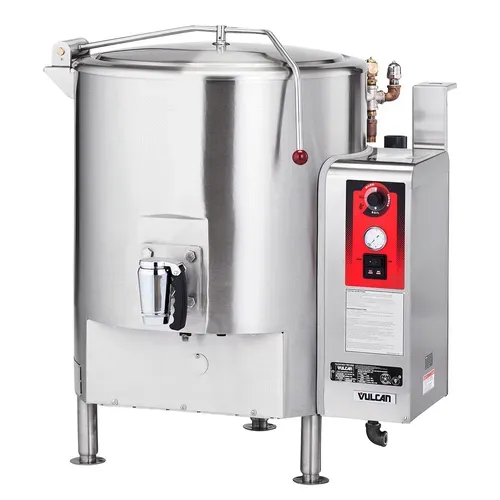

Vulcan GS60E Fully Jacketed Stationary Kettle
1/2
Vulcan GS60E Specifications
BTU | 135,000 BTU |
---|---|
Installation Type | Floor Model |
Kettle Jacket | Full |
Type | Single Kettle |
Brand | Vulcan |
Made in | USA |
Power Type | Gas |
Base | Quad-Leg |
Category | Kettle, Gas |
Capacity | 60 Gallon |
Material | Stainless Steel |
Style | Stationary |
Width (in) | 58.5 |
Height (in) | 39 |
Depth (in) | 48 |
Weight | 819.00 |
Additional Information on Vulcan GS60E
vulcan-gs60e.specsheet.pdf parts-catalog.pdf parts-list.pdf warranty-sheet.pdf owner-s-manual.pdf vulcan-gs60e.specsheet.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan GS60E Description
Fully Jacketed Stationary Kettle, Gas, 60-gallon capacity, spring assisted hinged cover with heavy duty pivot assembly, 2" plug draw-off valve with perforated strainer, graduated measuring rod, faucet bracket, stainless steel construction with 316 series stainless steel liner, flanged feet, electric ignition, 135,000 BTUFully Jacketed Stationary Kettle, Gas, 60-gallon capacity, spring assisted hinged cover with heavy duty pivot assembly, 2" plug draw-off valve with perforated strainer, graduated measuring rod, faucet bracket, stainless steel construction with 316 series stainless steel liner, flanged feet, electric ignition, 135,000 BTU, Commercial Gas Kettles
Standard Features:
- Faucet bracket.
- Draw-off opening strainer.
- Graduated measuring rod.
- Kettle fully steam jacketed.
- 316 Series stainless steel liner.
- One year limited parts and labor warranty.
- Second year extended limited parts and labor warranty.
- Mounted on stainless steel 2" diameter legs with adjustable flange feet.
- Thermostat with a combination gas control valve and electronic ignition.
- Reinforced hinged stainless steel cover with condensate ring and drop down lift handle.
- Vacuum pressure relief valve. 15 PSI relief valve. Low water cut-off control. Pressure limit switch and pressure gauge.
- Kettle interior bottom sloped to front for smooth product flow through a mounted, tapered, plug type food product draw-off valve of standard 2" diameter.
Options
- Three inch compression tangent draw-off valve with perforated strainer.
- Security facility package.
- Security type fasteners with tack welds.
- Stainless steel step over draw-off valve with chain.
Accessories (Packaged & Sold Separately)
- Heat deflector shield.
- Stainless steel 48" whip.
- Perforated stainless steel triple basket assembly.
- Double pantry pot filler lead-free with vacuum breaker.
- (12") (18" double jointed) single pantry lead-free faucet.
- (12") (18" double jointed) double pantry lead-free faucet.
- Double pantry washdown hose lead-free with vacuum breaker.
- Double pantry washdown hose with 16" add-on lead-free faucet with vacuum breaker.
- Clean-up kit, includes draw-off brush, clean-up brush and paddle scrapper with 40" handle.
Specifications
Gas fully jacketed stationary kettle. Kettle is mounted on 2" diameter legs with adjustable flanged feet. The kettle liner is constructed out of 316 Series stainless steel. Spring assist hinged stainless steel cover with condensate ring and drop down lift handle. The dish shaped interior bottom is sloped to the front for a smooth product flow through a mounted, tapered, 2" plug type food product draw-off valve. Drawoff includes opening strainer. Graduated measuring rod. Furnished standard with a 15 PSI relief valve, vacuum relief valve, thermostat with a combination gas control valve and electronic ignition, low water cut-off control and a pressure limit switch and pressure gauge. CSA design certified. Classified by UL to NSF Standard #4. Meets ASME code.
