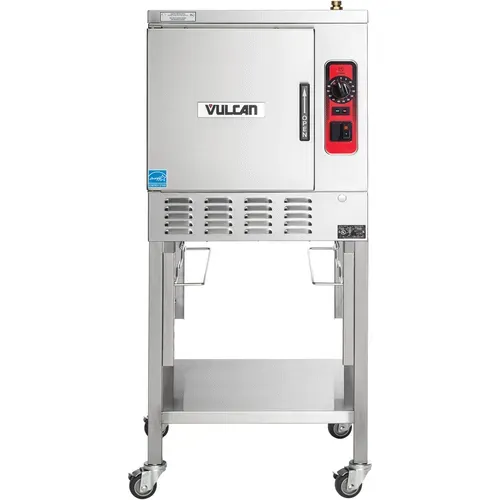

Vulcan C24EA3-LWE Convection Steamer
MPN#: C24EA3-LWE
Free Freight?
Quick Ship
Energy Star ?Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$12,254.00
Lowest Price Guarantee
Chat Now
Chat Now
Calculate
Product Protection
Starting at
Vulcan C24EA3-LWE Specifications
| Pan Capacity | 3 Pans |
|---|---|
| Type | Convection Steamers |
| Steam Source | Steam Generator |
| Brand | Vulcan |
| Number of Compartments | 1 |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | cULus |
| Power Type | Electric |
| Controls | Manual |
| Category | Steamer, Convection Countertop |
| Heat | Electric |
| Material | Stainless Steel |
| Style | Countertop |
| Voltage | 208-240 Volts |
| Width (in) | 24 |
| Height (in) | 19.5 |
| Depth (in) | 33 |
Additional Information on Vulcan C24EA3-LWE
certifiedplusinstallation.pdf
service-manual.pdf
owner-s-manual.pdf
parts-list.pdf
sell-sheet.pdf
warranty-sheet.pdf
vulcan-c24ea3-lwe.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan C24EA3-LWE Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Vulcan C24EA3-LWE Description
Convection Steamer, countertop, electric, 1 compartment, 24" wide, (3) 12" x 20" x 2-1/2" pans capacity, low water energy smart steam control, high output stainless steel steam generator with Smart Drain System (timed drain) & Powerflush, staged water fill, professional controls with 60-minute timer, buzzer & constant steam feature, cook/ready lights & power switch, split water line, stainless steel interior & exterior, leveling feet, UL EPH Classified, cULus Listed, ENERGY STAR®
Convection Steamer, countertop, electric, 1 compartment, 24" wide, (3) 12" x 20" x 2-1/2" pans capacity, low water energy smart steam control, high output stainless steel steam generator with Smart Drain System (timed drain) & Powerflush, staged water fill, professional controls with 60-minute timer, buzzer & constant steam feature, cook/ready lights & power switch, split water line, stainless steel interior & exterior, leveling feet, UL EPH Classified, cULus Listed, ENERGY STAR®, Countertop Convection Steamers
Standard Features:
- Leveling feet.
- Cord strain relief.
- High output stainless steel steam generator.
- 60-Minute timer with constant steam setting.
- Smart Drain System (timed drain) with PowerFlush.
- Illuminated power switch with cook and ready lights.
- Split water line connection. 1 1⁄2" NPT drain connection.
- Heavy duty door and door latch mechanisms with gasket guard.
- Low Water Energy (LWE) Smart Steam control - ENERGY STAR® certified.
- Stainless steel exterior and cooking compartment with curved interior corners.
- Shipped for 208/60-50/3 electrical service. Can be field converted to 240/60-50/3.
- Staged Water Fill includes high-speed initial fill and low-speed fill during operation.
Options
- Second year extended limited parts and labor warranty contract.
- Ultrasonic SonicSafe™ Scale Prevention for automatic protection against mineral buildup, includes second year extended limited parts and labor warranty.
Accessories (Packaged & Sold Separately)
- 4" Adjustable counter legs
- Pull-out 12" x 20" sliding rack (cooking compartment).
- CB15K Carbon Block filtration (for water treatment with Ultrasonic SonicSafe™ Scale Prevention).
- Flex stainless steel water connection 72" 3⁄4" female NSHT on both ends, 2 required and 3 with filter system.
- Cord and plug set, 480v/3ph (rated to 30 amps) 72": STRAIGHT PLUG HBL2731 NEMA L16-30 (CORDPLG-5PAN480).
- Cord and plug set, 208-240v/3ph (rated to 40 amps) 72": ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-3PAN3P).
- Cord and plug set, 208-240v/3ph (rated to 55 amps) 72": ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-5PAN3P).
- SMF600 ScaleBlocker® water treatment system, includes second year warranty (for water treatment without Ultrasonic SonicSafe™ Scale Prevention)
- Open leg 24"w stand with shelf and 1 set of adjustable pan slides
- 28" h
- 34" h
- Locking casters
- Stacking kit for two units with hardware, counter mount or on 15" and 28" stands. Note: Only a single 3 or 5 pan steamer or two 3 pan steamers can be stacked on a 28"h stand. Single 3 or 5 pan steamers only on a 34"h stand. Any combination of two steamers can be stacked on a 15" stand.
- 15" open leg stand
- Single point electrical connection kit for stacked units, 3-phase only.
Specifications
Single compartment electric ENERGY STAR® certified convection steamer. Low Water Energy (LWE) Smart Steam control reduces energy consumption and water usage. High output stainless steel generator with two-speed Staged Water Fill. Generator also includes Smart Drain System (timed drain) with PowerFlush. Operator controls include 60-minute timer with constant steam setting and an illuminated power switch in addition to cook and ready lights. Stainless steel exterior and cooking compartment with curved interior corners. Heavy duty door and door latch mechanism with door gasket guard. Shipped for 208/60-50/3 electrical service. Can be field converted to 240/60-50/3. Split water line connection. 1 1⁄2" NPT drain connection.
