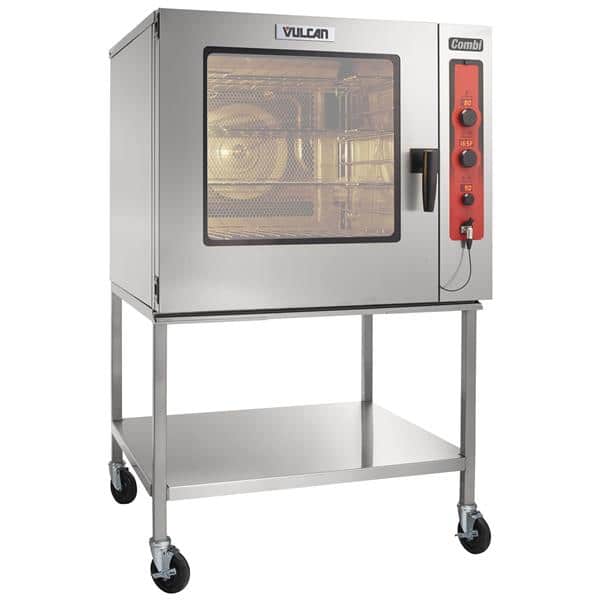

Vulcan ABC7G-PROP Full Size Propane Combi Oven with Dials / Buttons Controls - 120 Volts
MPN#: ABC7G-PROP
Calculate
- Please see specification sheet for installation clearance requirements
Vulcan ABC7G-PROP Specifications
| BTU | 80,000 BTU |
|---|---|
| Control Type | Dials / Buttons |
| Boiler | No |
| Brand | Vulcan |
| Made in | USA |
| Certifications | cULus |
| Power Type | Gas |
| Size | Full |
| Capacity | 11-20 full size hotel pans |
| Voltage | 120 Volts |
| Width (in) | 42.2 |
| Height (in) | 35 |
| Depth (in) | 42.4 |
| Weight | 600.00 |
Additional Information on Vulcan ABC7G-PROP
sell-sheet.pdf
service-manual.pdf
parts-list.pdf
installation-operation.pdf
vulcan-abc7g-prop.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan ABC7G-PROP Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Vulcan ABC7G-PROP Description
Combi Oven/Steamer, propane gas, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, food probe, auto-reversing fan with speed control & electronic braking system, cool to touch glass door, flashing door light & audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, 80,000 BTU, 120v/60/1-ph, engineered & assembled in USA, UL EPH Classified, cULus
Combi Oven/Steamer, propane gas, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, food probe, auto-reversing fan with speed control & electronic braking system, cool to touch glass door, flashing door light and audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, 80,000 BTU, 120v/60/1-ph, engineered & assembled in USA, NSF/ANSI 4, cULus
Standard Features:
Standard Features:
- All stainless steel cavity, top, sides & fully insulated.
- Halogen door light behind heat reflective inner glass.
- Machine diagnostics accessed thru controls or via USB.
- Engineered and assembled in Louisville, Kentucky, USA.
- ABC-P models include food probe and fan speed control.
- Visual recall display of actual temperature and humidity LED’s.
- Auto-reversing fan with electronic braking system on fan motor.
- Timer reloads for batch cooking after completion of timed cycle.
- Just three knobs, no modes, only temperature, time and humidity.
- Cool to the touch & energy efficient heat reflective tempered glass door.
- Flashing door light & audible alarm system alert user when cooking cycle finished.
- Patent-pending humidity level control automatically adjusts after setting temperature.
- (4) stainless steel Grab-n-Go Racks with 15 1⁄2" x 3 1⁄4" cutout design for easy access to pans.
- Boilerless combi uses direct steam creation optimizing cooking capability & production with minimal energy & water.
- Multiple cooking capabilities from one piece of equipment: Baking, Steaming, Roasting, Air-Fry, Rethermalization, Proofing, Finishing, Poaching, Stewing, Low Temp and Defrosting results.
- Large LED displays for temperature, time and humidity controls.
- Humidity range: 0-100%
- Temperature range: 80-450°F
- Timer range: continuous up to 23:59 hours and minutes
Options
- Reverse Osmosis System - Best
- V3MRO-1 up to 100 gpd capacity, single unit
- V3MRO-2 up to 200 gpd capacity, double unit
- Water Softening - Better (Carbon CBK System Required)
- WS-40 - 40 lb. capacity (hard water treatment)
- Hollow Carbon Filter System - Good (Suggested Minimum):
- CB15K-SYSTEM - 15,000 gal. (carbon only treatment)
- CB30K-SYSTEM - 30,000 gal. (carbon only treatment)
- Second year extended limited parts and labor warranty contract.
Accessories (Packaged & Sold Separately)
- 1220-BASKET - Fry Basket 12" x 20"
- GASKIT-ABC - Propane & altitude kit (2,000-10,000 ft.)
- ADDRACK-ABC1 - (1) One additional Grab-N-Go Rack
- ADDRACK-ABC3 - (3) Three additional Grab-N-Go Racks
- HOSEWTR-3/4BBV - s/s flex water hose 72" length, ¾" female NSHT (2 per unit recommended).
- Stands & Stacking Kits include: (1) Spray Hose and Drip Tray Kit
- STAND-ABC/SS - Stainless steel open frame stand.
- STACK-ABC/CONV - Stack kit for combi/convection.
- ABC-BASE - Stainless steel base for STAND-ABC/SS.
- STACK-ABC/G - Gas stacking kit for two ABC7G combis.
Specifications
Vulcan Combi Oven, Gas, Boilerless, 7 level full size combi, Model ABC or ABC-P. Engineered and assembled in USA. Just three knobs, no modes, only temperature, time and humidity for ultimate ease of use. Humidity level control automatically adjusts after setting temperature. Multiple cooking capabilities from one piece of equipment: Baking, Steaming, Roasting, Air-Fry, Rethermalization, Proofing, Finishing, Poaching, Stewing, Low Temp and Defrosting results. Direct steam creation for optimized cooking capability and production with minimal energy and water consumption. Auto-reversing fan with electrical braking system on fan motor. Large LED displays for temperature, time and humidity controls. Visual recall display of actual temperature and humidity LED’s. Timer reloads for batch cooking after completion of timed cycle. Flashing door light & audible alarm system alert user when cooking cycle finished. Halogen door light behind heat reflective inner glass. (4) stainless steel Grab-N-Go Racks with 151⁄2" x 31⁄4" cutout design for easy access to pans. Maximum capacity of (7) racks for a total of (7) 18" x 26" or (14) 12" x 20" pans. Machine diagnostics accessed thru controls or via USB. Cool to the touch & energy efficient heat reflective tempered glass door. All stainless steel interior cooking compartment, top, sides & fully insulated. One year limited parts and labor warranty.
