Vulcan 1ER85CF Fryer
Energy Star ?Chat Now
Calculate
Vulcan 1ER85CF Specifications
| Number of Fry Pots | 1 |
|---|---|
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Certifications | NSF |
| Model | Free Standing |
| Basket | Twin |
| Basket Lifts | No |
| Exterior Finish | Stainless Steel |
| Controls | Computer |
| Capacity | 85 Lb |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 208 Volts |
| Wattage | 24.0 Kilowatts |
| Width (in) | 21 |
| Height (in) | 39.44 |
| Depth (in) | 34.38 |
| Weight | 225.00 |
Additional Information on Vulcan 1ER85CF
er-kleenscreen-plus-spec-sheet.pdf
parts-list.pdf
warranty.pdf
owner-s-manual.pdf
vulcan-1er85cf.specsheet.pdf
warranty-sheet.pdf

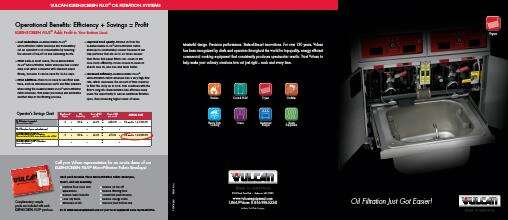

brochure.pdf
service-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 1ER85CF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 1ER85CF Description
If your commercial kitchen uses electric cooking equipment and you need a reliable deep fryer the Vulcan 1ER85CF Fryer is an easy pick with 85 lbs of oil capacity and built-in filtration. The efficient operation of this fryer is backed up by its ENERGY STAR® qualification. With a wide range of Floor Model Electric Fryers offered by Vulcan, you’re sure to find one that can reliably serve in your commercial kitchen.
With 24 kW low watt density ribbon heating elements the oil in the 16 gauge stainless steel fry tank is heated evenly.
With programmable computer controls, this fryer allows users to easily select a menu item from the up to ten programmable selections. A digital display shows users the item names and cook times for quick reference. Programming the fryer is simple via a USB interface making it easy to update multiple Commercial Deep Fryers with the same parameters. The temperature can be set accurately between 200°F and 390°F with fast recovery time and cook time can be based on actual time or compensating time. With multiple fat melt modes, boil out mode, and fast recovery this fryer is simple to use.
With built-in filtration, this fryer further extends the usability of the oil without affecting flavor while reducing downtime. The KleenScreen PLUS® filtration system removes particles with a stainless steel mesh.
The stainless steel construction of the cabinet and fry tank make this fryer durable and easy to clean. To make keeping it level, this fryer comes on adjustable 6” legs. For ease of use, it also comes with twin fry baskets featuring plastic coated handles.
Standard Features:
- High limit control.
- Four 6" adjustable legs.
- Multiple fat melt modes.
- Stainless steel front and sides.
- Ten year limited fry tank warranty.
- 1 1⁄4" full port ball type drain valve.
- One year limited parts and labor warranty.
- Twin fry baskets with plastic coated handles.
- 16 gauge stainless steel fry tank, 85 lb. capacity.
- 24 kW low watt density ribbon style heating elements.
- 1ER85A - Solid state analog knob control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery.
- 1ER85D - Solid state digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery, boil out mode and two countdown timers.
- 1ER85C - Computer control digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery and boil out mode. Ten programmable product key sand ten countdown timers. Secondary and advanced programming options.
- Second year extended limited parts and labor warranty
- 480 volt, 3 phase. (Separate 120 volt, 20 amp electric supply required.)
- Frymate™ VX21S dump station
- Set of four 6" adjustable casters (2 locking).
- 10" high stainless steel removable splash guard
- Large single fry basket - 18 3⁄4"w x 15 1⁄4"d x 6"h
- Extra set of twin fry baskets - 9 1⁄4"w x 15 1⁄4"d x 6"h
- Stainless steel tank cover - doubles as a work surface top
- Connecting Kit(s) - connect two fryers together (banking strip, brackets and hardware)
Electric deep fat fryer, Vulcan-Hart Model No. 1ER85A: Solid analog state knob, 1ER85D: Solid state digital, 1ER85C: Computer temperature controls are adjustable from 200° to 390°F and include 3 melt cycle and high limit control. Stainless steel cabinet with four 6" adjustable legs. 16 gauge stainless steel fry tank holds 85 lbs. of frying compound. 1 1⁄4" full port ball type drain valve. 24 kW low watt density ribbon style heating elements. Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase.
