Vulcan 1ER50AF Fryer
Energy Star ?Chat Now
Calculate
Vulcan 1ER50AF Specifications
| Number of Fry Pots | 1 |
|---|---|
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Certifications | NSF |
| Model | Free Standing |
| Basket | Twin |
| Basket Lifts | No |
| Exterior Finish | Stainless Steel |
| Controls | Solid State |
| Capacity | 50 Lb |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 208 Volts |
| Wattage | 17.0 Kilowatts |
| Width (in) | 15.5 |
| Height (in) | 39.44 |
| Depth (in) | 34.38 |
| Weight | 210.00 |
Additional Information on Vulcan 1ER50AF
parts-list.pdf
er-kleenscreen-plus-spec-sheet.pdf
warranty.pdf
service-manual.pdf
warranty-sheet.pdf
owner-s-manual.pdf
vulcan-1er50af.specsheet.pdf

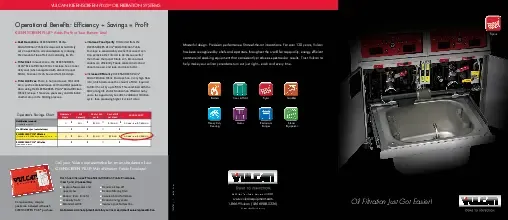

brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 1ER50AF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 1ER50AF Description
If your commercial kitchen uses electric cooking equipment and you need a reliable deep fryer the Vulcan 1ER50AF Fryer is an easy pick with 50 lbs of oil capacity and built-in filtration. This fryer operates efficiently and is ENERGY STAR® qualified. If you’re looking at Floor Model Electric Fryers you’re sure to find a unit that will fit your needs from Vulcan.
The 17 kW ribbon style heating elements evenly heats oil in the 16 gauge stainless steel fry tank.
The cooking temperature is easily adjusted with a simple analog knob behind the door which allows for temperatures from 200° to 390°F. This fryer features users selectable fat melt modes.
The filtration system on this fryer makes sure the frying oil can be used for much longer without a negative effect on the flavor of food fried in it. The KleenScreen PLUS® filtration system features a stainless steel mesh filter to remove particles.
Stainless steel construction of the cabinet and fry tank make sure cleaning and maintenance are as easy as possible. This fryer comes mounted on adjustable 6” legs to make it easy to keep level. Twin fry baskets featuring plastic coated handles are also included.
The total power consumption of this fryer is 17 kW.
Standard Features:
- High limit control.
- 208 volt, 3 phase.
- Stainless steel cabinet.
- Multiple fat melt modes.
- Set of four 6" adjustable legs.
- 1 1⁄4" full port ball type drain valve.
- Ten year limited fry tank warranty.
- One year limited parts and labor warranty.
- Twin fry baskets with plastic coated handles.
- 16 gauge stainless steel fry tank, 50 lb. capacity.
- 17 kW low watt density ribbon style heating elements.
- 1ER50A - Solid state knob control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery.
- 1ER50D - Solid state digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery and boil out mode and two countdown timers.
- 1ER50C - Computer control digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery and boil out mode. Ten programmable product keys and ten countdown timers. Secondary and advanced programming options.
- Second year extended limited parts and labor warranty.
- 480 volt, 3 phase. (Separate 120 volt, 20 amp electric supply required.)
- Frymate™ VX15S Dump Station
- Set of four 6" adjustable casters (2 locking)
- 10" high stainless steel removable splash guard
- Large Single Fry Basket - 13"w x 13 1⁄4"d x 5 1⁄2"h
- Extra set of Twin Fry Baskets - 6 1⁄2"w x 13 1⁄4"d x 6"h
- Stainless Steel Tank Cover - doubles as a work surface top
- Connecting Kit(s) - connect two Commercial Deep Fryers together (banking strip, brackets and hardware)
Electric deep fat fryer, Vulcan-Hart Model No. 1ER50A: Solid state analog knob, 1ER50D: Solid state digital, 1ER50C: Computer temperature controls are adjustable from 200°F to 390°F and multiple fat melt cycles and high limit control. Stainless steel cabinet with four 6" adjustable legs. 16 gauge stainless steel fry tank holds 50 lbs. of frying compound. 1 1⁄4" full port ball type drain valve. 17kW low watt density ribbon style heating elements. Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase.
