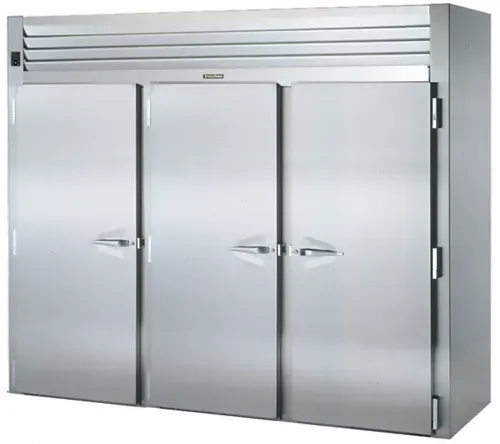

Traulsen ARI332L-FHS 100.5" Top Mounted 3 Section Roll-in Refrigerator with 3 Left/Right Solid Doors - 117.5 cu. ft.

Standard Features:

The R & A Series represent Traulsen's Top-of-the-Line product offering. The “L-Height” roll-in refrigerator models are all designed to offer convenient interior storage for 66" high racks. Each is supplied standard with such high quality features as easy to operate microprocessor controls, balanced refrigeration systems and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.

• Biased Return Air Duct
• 9' Cord & Plug Attached
• Stainless Steel Breaker Caps
• Five Year Compressor Warranty
• Magnetic Snap-In Door Gaskets
• Scroll Blower Type Evaporator Fan
• Gasket Protecting Metal Door Liner
• One Year Parts And Labor Warranty
• Guaranteed For Life Cam-Lift Hinges
• R-Series: Stainless Steel Exterior & Interior
• Automatically Activated Incandescent Lights
• Stainless Steel One-Piece Louver Assembly
• Two Year Control Warranty (parts and labor)
• Full Length Stainless Steel Doors With Locks
• Thermostatic Expansion Valve Metering Device
• Automatic Non-Electric Condensate Evaporator
• INTELA-TRAUL® Microprocessor Control System
• Controllable Anti-Condensate Door Perimeter Heaters
• Stainless Steel Interior Rack Guides & Threshold Ramp(s)
• Guaranteed For Life Horizontal Work Flow Door Handle(s)
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• Balanced, Self-Contained Refrigeration System Using R-134a
• Accommodates Roll-In Racks Up To 66" High (provided by others)
• Standard Door Hinging: 132L = Right, 232L = Left/Right, 332L = Left/Right/Right (other hingings available)

Options & Accessories:

• Fluorescent Lights
• Recessed Installation
• Export 220/50/1 Voltage
• Re-Hinging Feature For Door(s)
• Kool Klad Exterior Laminate Decor
• Additional Wire Shelves For Above
• Prison/Correctional Facilities Options
• Remote For Use With 20°F Glycol System
• Two Year Service/Labor Warranty Available
• Locking Hasps (padlocks supplied by others)
• Additional Stainless Steel Shelves For Above
• Stainless Steel Finished Back With Rear Louvers
• Remote Applications (see form TR35837 for more details)
• Clear Glass Door(s) In Place Of One Or More Solid Door(s)
• Wire Shelf Package For Roll-In Models (includes three wire shelves per section)
• Stainless Steel Shelf Package For Roll-In Models (includes three stainless steel shelves per section)

Specifications:
Construction, Hardware and Insulation

• Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. The interior floor is constructed of stainless steel and insulated with 3⁄4" of resilient cork. A readily attachable stainless steel ramp is provided to facilitate loading/unloading. Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.

Refrigeration System

• A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top-mounted non-electric condensate evaporator. Biased return air duct protects against the introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 34 to 38°F.

Controller

• The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, and an RS485 data port. In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.

Interior

• Readily removable, interior-mounted, stainless steel guides for rack are provided for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29" deep by 66" high. Racks supplied by others.

Warranties

• Both a one-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition the INTELA-TRAUL® control is warranted by a two-year parts and labor warranty.
