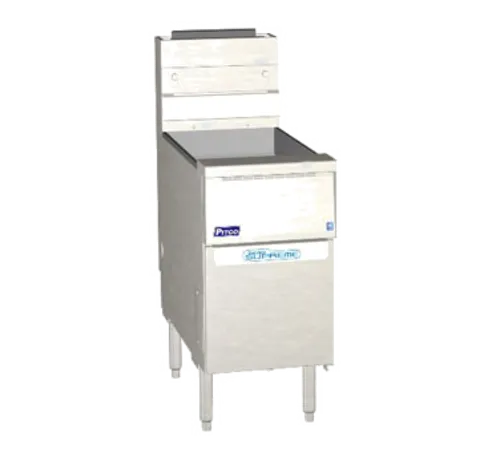

Pitco SSH55 Solstice Supreme™ 15 - 50 lb. Gas Floor Model Full Pot Fryer with Solid State Controls - 80,000 BTU

MPN#: SSH55
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$9,021.00 /
or enjoy small payments $193.86/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 10401

Pitco SSH55 Specifications

Total BTU80,000 BTU
Installation TypeFloor Model
SeriesSolstice Supreme™
ConstructionStainless Steel
Burner StyleTube
BrandPitco Frialator
Energy EfficiencyEnergy Star
CertificationsCE
Power TypeGas
Control TypeThermostatic
BTU80,000 BTU
ControlsSolid State
Capacity15 - 50 lb.
HeatNatural or Propane Gas
Weight208.00

Pitco SSH55 Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Pitco SSH55 Description

Solstice Supreme™ High Efficiency Fryer, gas, 40-50 lb. oil capacity, full tank, solid state controls, boil out & melt cycle, drain valve interlock, matchless ignition, self-clean burner, downdraft protection, stainless steel tank, front & sides, total 80,000 BTU, ENERGY STAR®, CSA Flame, CSA Star, NSF, CE

The Frialator SSH55 Solstice Supreme High Efficiency Fryer from Pitco is an extremely dependable gas-heated unit designed specifically for use in commercial kitchens with a high demand for fried menu items. Aside from its reliable track record, this Floor Model Gas Fryer is designed to be as efficient as possible and is ENERGY STAR® qualified. The 14-inch by 14-inch fry tank holds between 40 and 50 lbs of oil.

For ease of use even with untrained labor, this fryer comes with the Intellifry controller. This allows operators to set up to 12 cooking modes for various menu items to make sure they are cooked consistently with as little training as possible. To keep the fryer from reaching dangerous temperatures, this model comes with a high-temperature safety switch which will automatically switch the unit off when it starts to overheat. To make operations easier and more automated this fryer can be ordered with the optional Intellifry I12 computer or digital controller. The I12 Intellifry has 12 elastic timers that make cooking 12 different menu items as simple as possible. The Digital controller has two timers. Either of these options can accept the automated basket lifts that make sure food is never over-cooked.

With a total of 80,000 BTU/hr of heat output, this fryer can quickly heat oil to the needed temperature so you can get frying quicker than fast in a hurry. This is made possible by the Solstice Burner Technology that was developed and patented by Pitco. The burner doesn’t need blowers or ceramics to efficiently provide heat, this makes the fryer much more reliable since there are fewer components that can fail. The burner is also self-cleaning and features down draft protection to make sure the fryer is always running at peak efficiency.

Below the tube rack, an extensive cool zone catches crumbs and other debris and prevents them from being carbonized. This prevents the oil from taking on any undesirable flavors while extending the amount of time the oil can be used between drainings.

With stainless steel construction on this unit’s door, sides, tank, and front it’s easy to maintain and clean. Draining oil is simple and quick with a 1-¼” full port drain. A drain extension and clean out rod are included to make draining easy. Two basket configurations are offered with this fryer, either a single full-size basket or 2 twin-size baskets.

Pitco SSH55 Solstice Supreme™ 40-50 lb. Stainless Steel Gas Floor Model Full Pot Fryer with Solid State Controls - 80,000 BTU

Solstice Supreme High Efficiency Fryer, gas, 40-50lb oil capacity, full tank, solid state controls, boil out & melt cycle, drain valve interlock, matchless ignition, self-clean burner, downdraft protection, stainless steel tank, front & sides, total 80,000 BTU, ENERGY STAR®, CSA, NSF, CE

Standard Features & Accessories:
  • Drain Extension
  • Integrated flue deflector
  • Drain Line Clean out rod
  • Fryer cleaner sample packet
  • Tank - stainless steel construction
  • High-Temperature safety limit switch
  • Heavy duty 3/16” bottom door hinge
  • Cabinet - stainless front, door and sides
  • Removable basket hanger, requires no tools
  • High-Efficiency design, EnergyStar performance
  • Separate Manual gas shutoffs, for front servicing
  • Solid State T-Stat with melt cycle & boil out mode
  • Tube rack, allows crumbs & debris into cool zone
  • 1 ¼” (3.2 cm) Full port drain valve for fast draining
  • Solstice Burner Technology, No blower or ceramics
  • 9” (22.9 cm) adjustable legs, easier access to clean
  • Patented Self Cleaning Burner & Down Draft Protection
  • Choice of basket options: 2-Twin Baskets and 1-Full Basket (not available on SSH55T or Basket Lifts)
  • DVI drain valve interlock safety system turns the heat off preventing the oil from scorching / overheating.
  • Matchless Ignition automatically lights the pilot when the power is turned on and saves you money during off times
Options & Accessories: (Additional Cost)
  • Tank cover
  • Fish Grids (not available on 55T)
  • Institutional Prison security package
  • Digital Controller (2 timers w/melt cycle)
  • Consult Factory for other basket configurations
  • SPINFRESH, see spec sheet L10-524 for details
  • Splash Guard reversible (L/R): 6", 8", 12" and 18"
  • BNB Dump Station, see BNB spec sheet L10-269
  • Stainless Steel back (not available with basket lift)
  • 3-Triple Baskets (not available on 55T or Basket Lifts)
  • Backup thermostat (only on Digital and I-12 computer)
  • Flexible gas hose with disconnect and restraining cable
  • 9”(22.9 cm) adjustable,non-lock rear & front lock casters
  • Work Shelves call factory for specifications and availability
  • Intellifry I-12 Computer (12 elastic timers w/melt & boil out)
  • Basket Lift (must be ordered with Digital Control or Computer)
  • Filter System options (See Spec Sheet): SoloFilter (L10-267) and Filter drawer (L10-134)
  • (To meet AGA/CGA/CSA specification, must be ordered with casters & installed with flexible gas hose w/restraining cable)
Applications
HIGH EFFICIENCY SERIES OF GAS Commercial Deep Fryers - For Energy Saving High Production Frying specify Pitco Model SSH55(R), 55T(R), 60(R), 60W(R),75(R) tube fired gas fryers with Solstice Supreme Burner Technology which provides very dependable atmospheric heat transfer and fuel saving ENERGYSTAR performance without the need for complex power blowers. This patented atmospheric burner system with its long lasting alloy heat baffles reaches up to 70% thermal efficiency and delivers lower flue temperatures. New Patented Self Cleaning Burner goes through a daily 30 second cleaning cycle to keep your burners tuned to operate in the most energy efficient manner. Ventilation troubles are virtually eliminated with the Patented Down Draft Protection that safely monitors your fryer, making this a low maintenance, highly reliable fryer. High volume restaurants and multi-store chains can benefit from lower operational energy cost and lower annual maintenance and repair cost.

Options for Pitco SSH55

Standard baskets
Startup program
Controls
Institutional package
Factory note on export units
Smart features
Stainless steel back
Splashguards
Open Kitchen Connectivity Bundles
Built-in filtration system
Gas type
Voltage (Fryer)
Mounting options
What is included
  • General Warranty: 1 year parts and labor warranty from the date of installation up to a maximum of 15 months from the date of manufacture (with appropriate documentation), standard

Pitco SSH55 Accessories

Pitco P14 Fryer Filter P14
$4,015.00
Pitco RP14 Fryer Filter RP14
$5,630.35
Pitco P6072145 Basket (1) oblong/twin size P6072145
$115.50
Pitco P6072147 Basket (1) oblong/triple size P6072147
$110.00
Pitco P6071397 Fryer Cleaner- 25 lb. P6071397
$312.95
Pitco A5077704 Splash Guard 8" A5077704
$227.70
Pitco A5077706 Splash Guard 12" A5077706
$271.15
Pitco P6072143 Basket (1) square/full size P6072143
$232.65
Pitco P6072144 Basket (1) square/full size P6072144
$295.35
Pitco P6072146 Basket (1) oblong/twin size P6072146
$232.65
Pitco A5071302 Splash Guard 18" A5071302
$389.40
Pitco A3301001 Fryer Drain Clean Out Rod A3301001
$50.60
Pitco A4500601 Tank rack 13-1/2" x 13-1/2" A4500601
$94.60
