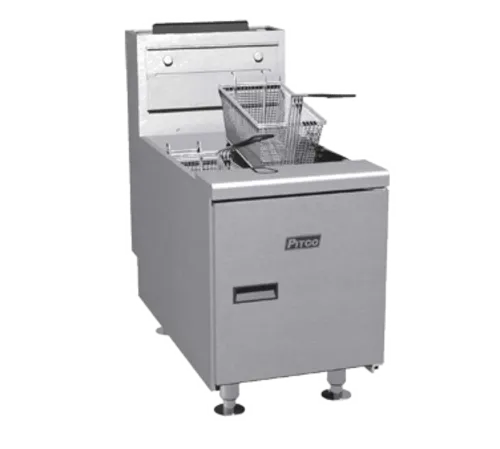

Pitco SGC-S Solstice Standard Fryer
Pitco SGC-S Specifications
BTU | 75,000 BTU |
---|---|
Number of Fry Pots | 1 |
Total BTU | 75,000 BTU |
Installation Type | Countertop |
Control Type | Millivolt |
Series | Solstice™ |
Burner Style | Tube |
Brand | Pitco Frialator |
Certifications | NSF |
Power Type | Gas |
Application | Medium Duty |
Controls | Millivolt |
Capacity | 15 - 50 lb. |
Heat | Natural or Propane Gas |
Width (in) | 14.75 |
Height (in) | 30.28 |
Depth (in) | 29 |
Weight | 150.00 |
Additional Information on Pitco SGC-S
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Pitco SGC-S Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Pitco SGC-S Description
If your establishment needs a dependable and compact Floor Model Gas Fryer the Frialator SGC-S Solstice Standard Fryer from Pitco is a great option. With 35 lbs of oil capacity, this countertop fryer features 14”x13-⅝” fry of frying area in its peened stainless steel fry tank.
The simple to use millivolt controller is used to set a cooking temperature between 200ºF and 400ºF. A High-temperature safety limit switch makes sure everyone in the kitchen is safe in case the unit malfunctions.
Draining oil from this fryer is simple and quick with its 1-¼” full port drain valve. To clear out any stoppages, a drain line clean out rod is included as well as a drain line extension for ease of use.
The stainless steel construction of this fryer’s sides, door, front, and tank makes it extremely durable and easy to clean. Heat is provided by Pitco’s tried and tested Solstice Burner Technology that doesn’t use a blower or ceramics. A cool zone under the tube rack allows crumbs and debris to collect without carbonizing which will extend the life of oil used. With 75,000 BTU/hr of heat output, you can expect fast start-up and recovery times to get frying quickly.
Standard Features:
- Construction
- Heavy duty 3/16" (.48 cm) door hinge.
- Standing pilot light design provides a ready flame when heat is required.
- Welded tank with a super smooth machine peened finish ensures easy cleaning.
- Long lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency.
- Controls
- Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.
- Millivolt thermostat maintains selected temperature automatically between 200°F (93°C) and 400°F (190°C-CE).
- Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve.
- Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
- New Solstice burner/baffle design.
- Lowers flue temperature.
- Increases cooking production.
- Improves working environment.
- Generates more production per BTU.
- Operations
- Front 1-1/4”" (3.2cm) NPT full port drain, for quick draining.
- Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C)).
- Approvals
- NSF Listed
- MEA Approved
- CSA Certified (AGA, CGA)
- 4" Removable legs
- Manual gas shut-off
- One drain extension
- Rear gas connection
- Tank - stainless steel
- Fryer cleaner sample
- Standard #14 baskets
- One nickel plated tube rack
- One drain line clean-out rod
- Built-in integrated flue deflector
- 1 1/4" (3.2 cm) full port drain valve
- Removable basket hanger for easy cleaning
- Cabinet - Stainless steel front, door, and sides
- Fryer Covers
- Stainless steel back
