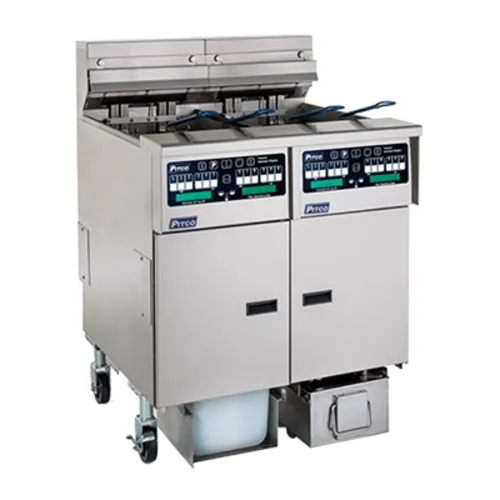

Pitco SELV14TX-C/FD Solstice Reduced Oil Volume Fryer
Calculate
Pitco SELV14TX-C/FD Specifications
| Number of Fry Pots | 2 |
|---|---|
| Brand | Pitco Frialator |
| Certifications | CE |
| Capacity | 30 Lb |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 14.0 Kilowatts |
| Width (in) | 15.63 |
| Height (in) | 45.75 |
| Depth (in) | 34.38 |
Additional Information on Pitco SELV14TX-C/FD
warrantysheet.pdf
installationoperation.pdf
middlebyfinancialflyer.pdf
smartfeaturesbrochure.pdf
pitco-selv14tx-c-fdspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Pitco SELV14TX-C/FD Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Pitco SELV14TX-C/FD Description
If your commercial kitchen needs a reliable Floor Model Electric Fryer with two fry tanks the SELV14TX-C/FD Solstice Reduced Oil Volume Fryer is an easy pick. This fryer features twin 6.3” x 14.8” fry pots that can be used independently. The fry tanks are made from stainless steel with a peened finish for easy cleaning and each holds 15 lbs of oil.
To reduce the amount of oil this fryer uses the cool zone normally found on fry pots is eliminated and the quality of the frying oil is maintained with the Solstice filtration system. Since oil is regularly drawn out by fried foods, the constant replenishment of oil will limit the need for complete oil changes.
The key feature of this fryer is the filtration system that uses a stainless steel drawer beneath the fryer that holds a 10” x 20-½” filter envelope to catch debris. A ⅓ HP filter motor moves oil at 4.5 GPM to make filtration cycles quick and convenient. To eliminate the guesswork, the filtration system has a FILTER SOON feature that monitors the cooking activity of each fry tank. To quickly top off the fry tanks from oil lost to drag out, this fryer system has a simple push-button system. Oil is held in a Jug In Box (JIB) oil reservoir.
Each fryer features the Intellifry Computer controller that can be programmed for 12 menu items. Once programmed cooking 12 different menu items consistently is as easy as pushing a button.
The doors, sides, tanks, and fronts are made from durable stainless steel which will last for many years. Heat is provided by immersion-type heating elements with a high-temperature alloy sheath and features mercury-free contactors. This fryer uses 14 kW/hr of electricity and comes in several different voltage configurations to match your kitchen’s wiring.
Standard Features:
- Intellifry Computer, 12 products.
- Mercury-free heating contractors.
- Tank - Stainless Steel Construction.
- Cabinet - stainless steel front, door, & sides.
- 9” (22.9 cm) adjustable legs for leveling fryer.
- 1-1/4” (3.2cm) full port drain valve for fast draining.
- Easy lift out immersion elements for easy clean up.
- Push button frypot oil replenishment system. 35 Lb JIB holder1 and low JIB indicator.
- Cooks like a 50 lb fryer with just 30 lbs of oil. Uses standard baskets. Provides full 4” cook depth.
- FILTER SOON production monitor, tracks cooking activity per frypot, and indicates when filtration is needed.
- 4.5 gpm (17.0 LPM) filter pump.
- Filter pan lid is self-storing and out of the way.
- Filtered oil return fitting assists cleaning frypot bottom.
- Filter pan is stainless steel. Rear wheels ease handling.
- Large, 10.0” x 20.5” filter envelope for fast filtering all day.
- Simple two step filtration process makes filtering easy and fast. Under 5 minutes in most circumstances.
- Extra large 3” (7.6 cm) drain lines with unique curved design drain spout virtually eliminates splashing. Spout swivels for ease of oil disposal.
- 1- Fryer crumb scoop
- 1- Filter shovel scoop
- 1- Drain clean out rod
- 1- Fryer cleaning brush
- X- twin size fry baskets (2 / frypot)
- 1- 10.0” x 20.5” Filter media starter pack
- X -Removable basket hangers (1 / frypot)
- Tank covers
- Automatic frypot oil level control system
- Computer controlled auto filtration system
- Work shelves, Consult factory for availability
- Assorted basket configurations, consult factory
- Automatic Basket Lifts, P6072145 Baskets Only
- BNB Dump Station, see BNB spec sheet for details
- 9” (22.8 cm) adjustable casters ease moving equipment for cleaning
- 6’ (183 cm) NEMA 15-60P cordset (14 KW and 17KW 208V &240V 3 phase only). 1 per fryer.
- Filter System Options: Paperless filter, Frypot flush hose and Waste Oil Management hook up.
- (Requires 2 or more Commercial Deep Fryers in a system for internal JIB storage. Assumes: Oil to be filtered is >180°F, that the filter media is not excessively covered with sediment, and is changed at recommended intervals.)
Pitco reduced oil volume/high output frying systems are designed and engineered for operators who need to reduce operating costs and maintain high production. Operators benefit immediately with a 40% reduction in oil on the first fill up, and at every oil change after that. Time between oil changes is significantly extended due to the low initial fill volume. As with all “low oil” fryers, oil filtration occasionally during operation is a key to maximizing oil life to the greatest degree possible. The FILTER SOON feature is production based and takes the guesswork out of when to filter, and it is easy to customize to your menu. Proven PITCO Solstice filter system is fast and simple to use. Whenever business levels permit, filtering and reheating can be accomplished in under 5 minutes*. A fast and easy push button frypot top off feature reduces the need for staff to carry heavy jugs through the kitchen. The top off feature integrates a typical 35 lb. oil JIB (Jug In Box) as an on board fresh oil supply1. A “jug low” warning indicator, and easy JIB changes are user friendly features. Add auto filtration option for additional operational benefits.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
