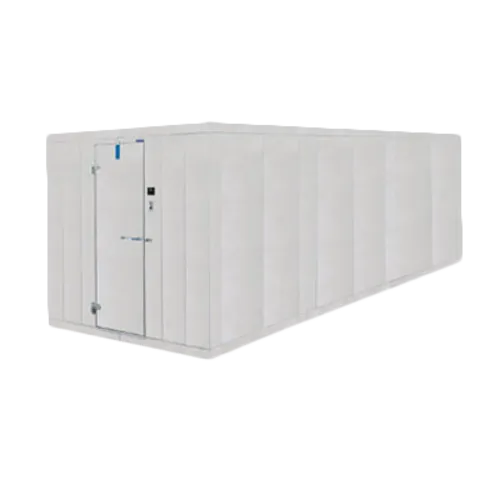

Nor-Lake 12X19X7-7OD Fast-Trak™ Outdoor Walk-In (Box Only)
MPN#: 12X19X7-7OD
Calculate
- 2023 model, meets the newest EPA and DOE codes.
- Because of state requirements, there will be additional lead-times and costs for walk-ins shipping to California, Washington or Oregon.
Nor-Lake 12X19X7-7OD Specifications
| Series | Fast-Trak™ |
|---|---|
| Installation Type | Outdoor |
| Brand | Nor-Lake |
| Category | Walk In, Modular, Box Only |
| With Floor | Floorless |
| Width (in) | 144 |
| Height (in) | 91 |
| Depth (in) | 228 |
| Weight | 3101.00 |
Additional Information on Nor-Lake 12X19X7-7OD
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Nor-Lake 12X19X7-7OD Description
Fast-Trak™ Outdoor Walk-In, 12' x 19' x 7'-7" H, smooth aluminum interior floor, 26 gauge embossed coated steel interior & exterior finish, membrane roof, self-closing door, locking deadbolt handle
Kold Locker *Walk In Cooler Box Only*
Standard Features:
- Magnetic gasket
- Spring loaded hinge
- Perimeter door heater wire
- Floor double sweep gasket
- Spring actuated door closer
- Temperatures:+35˚F, -10˚F, -20°F
- Unlimited lengths in 1' increments
- Digital thermometer and light switch
- Available in widths of 6’, 7’, 8’, 9’, 10’, 11’ & 12’
- Indoor or Outdoor Walk In Refrigeration models
- Smooth aluminum interior floor (models with floor)
- Heated air vents standard in freezer door sections
- UL & C-UL electrical listing on refrigeration systems
- 15 year panel warranty & 18 months parts and labor warranty
- 26”, 30” or 36” wide self-closing doors with Fast-Trak® door frame
- Full 4” thick panels foamed-in-place with EPA compliant polyurethane insulation
- Split Pak™ Pre-Assembled Remote Refrigeration Systems (ordered separately)
- Floorless Walk In Combination Boxes models supplied with NSF listed vinyl sealers
- Deadbolt locking handle with independent key/pad lock feature and inside safety release
- Two heavy duty cam-lift hinges per door, top hinge field adjustable with locking set screw
- 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
- Heights: 7’7” and 8’7” combination with floor freezers and less floor coolers with 4-3/8” foam sealers
- Heights: 6'7", 7'7" and 8'7" with floor, 7'4" and 8'4" floorless for single compartment and combinations
- High output low profile LED light positioned above door to prevent interference with shelving or product
- NSF, UL flame spread 25 or less for all foam cores on all panels; UL and CSA electrical listing on door sections
- USDA accepted, Oregon State listed, City of Houston listed, California State listed & CN UL flame spread listed
Optional Features
- Door rain hoods
- Shelving systems
- 14" x 24" viewport
- Strip curtains (shipped loose)
- Exterior ramp for floor models
- Extra LED lights (shipped loosae)
- Outdoor membrane roof systems
- Non-skid floor strips (shipped loose)
- Interior ramps (30" & 36" wide) for floor models
- 1-5/8" screed for use with 5/8" tile after walk-in installation
- Leak detector/alarm (may be a requirement in some areas)
- Interior and/or exterior 30” high stainless steel or 1/8" aluminum diamond tread door kick plates
