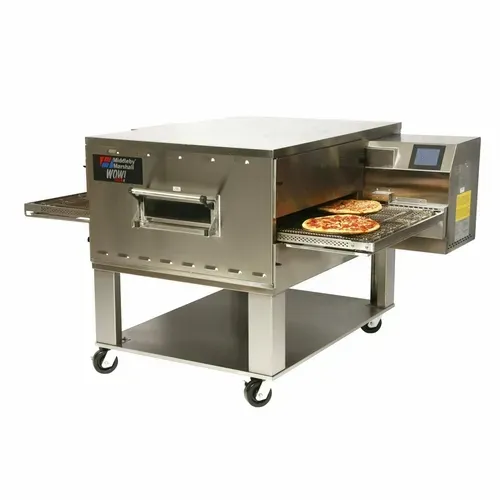

Middleby Marshall PS640E-1 WOW! Impingement PLUS Conveyor Oven
MPN#: PS640E-1
Free Freight?
Quick Ship
$35,134.11 /
Calculate
Product Protection
Starting at
Middleby Marshall PS640E-1 Specifications
| Total BTU | 40000 - 110000 BTU |
|---|---|
| BTU | 99,000 BTU |
| Production | High |
| Heating Style | Impingement |
| Belt Length | Long |
| Belt Width | Wide |
| Brand | Middleby Marshall |
| Certifications | CE |
| Power Type | Electric |
| Number of Belts | 1 |
| Voltage | 208 Volts |
| Wattage | 22000 - 72000 Watts |
| Width (in) | 76.50 |
| Height (in) | 47.13 |
| Depth (in) | 60.00 |
| Weight | 1100.00 |
Additional Information on Middleby Marshall PS640E-1
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Middleby Marshall PS640E-1 Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Middleby Marshall PS640E-1 Description
(PS640E13DED00-1) Impingement PLUS Conveyor Oven, electric (208V), single deck, 40-1/2" long cooking chamber, 32" wide standard single belt, touch screen control, 1:15 -33 minute time range, 300°-600°F operating temperature range, front loading window, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE (85 Amps, 50/60 Hz, 3-ph, 27,000 Watts)
WOW! Impingement PLUS Conveyor Oven, electric, single deck, 40-1/2" long cooking chamber, 32" width x 76-1/2" length belt, touch screen control, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE (more commercial conveyor ovens available)
Principle
Principle
- Middleby Marshall PS Series conveyor Commercial Ovens bake both faster and at a lower temperature than other ovens. Patented vertical columns of hot air move heat aerodynamically instead of using high temperatures. The streams of hot air remove the boundary layers of cool heavy air which tend to insulate the product. This gives very rapid baking without burning the product. All PS640 WOW!TM ovens are designed to cook pizza 30% faster than other conveyor ovens.
Standard Features
- 40-1/2” (1029mm) long cooking chamber
- Impingement PLUS! low oven profile and dual air return
- 33-1/2” (851mm) wide, 76-1/2” (1943mm) long conveyor belt
- Patented EMS energy Management System Reduces energy consumption and increases cooking efficiency
Optional Features
- 4" (101.6 mm) Exit Tray
- Hearth Bake Belt for a deck oven crust
- Split belt - two 15” (381mm) belts with individually adjustable speed settings
Speed
- Advanced technology air delivery system bakes up to 30% faster than standard conveyor ovens
Energy Management System
- The PS640 WOW! TM oven features an Energy Management System (EMS) that automatically reduces energy consumption. Touch Screen Control can be programmed in one energy saving mode. Automatic “energy eye” saves energy when no pizzas are in the oven.
Cleanability
- PS640 Ovens are designed for easy cleaning. Removable parts include: crumb pans, end panels, air fingers, and a folding conveyor belt assembly.
Easily Serviced
- Control compartment is designed for quick and easy access.
Warranty
- All PS640 models have a one year parts and labor warranty. Oven start-up and demonstration are included at no additional charge (USA Only)
Ventilation
- For installation under a ventilation hood only.
