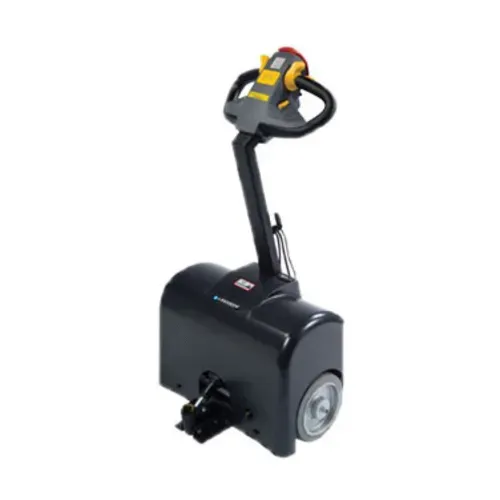

Lakeside Manufacturing 8162 Tug
MPN#: 8162
1/3
Free Freight?
Quick Ship
$5,061.00 /
Login or add to cart to see our price!
Calculate
Product Protection
Starting at
Lakeside Manufacturing 8162 Specifications
| Brand | Lakeside Manufacturing |
|---|---|
| Made in | USA |
| Width (in) | 18.75 |
| Height (in) | 41.5 |
| Depth (in) | 24 |
| Weight | 150.00 |
Additional Information on Lakeside Manufacturing 8162
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing 8162 Description
Tug, Ergo-One® Plus Power™, battery operated, 1500 lb. max tow capacity, speed interface hand control, ABS shroud, pin configuration hitch docking for us with multiple carts, non-marking, flat free tires, 24-volt, 18-3/4"W x 24"D x 41-1/2"H, Made in USATug, Ergo-One® Plus Power™, battery operated, 1500 lb. max tow capacity, speed interface hand control, ABS shroud, pin configuration hitch docking for us with multiple carts, non-marking, flat free tires, 24-volt, 18-3/4"W x 24"D x 41-1/2"H, Made in USAStandard Features:
- ABS shroud
- “Rain Proof” (IP-54 rating)
- Non-marking, flat-free tires
- 24-Volt DC Transaxle Drive
- Quick-change battery system
- Built-in battery with charge indicator
- 24-Volt DC Lift Motor/Actuator (IP-66 rated)
- Self-diagnostics-enabled,125-amp controller
- Small footprint (less than 16" D x 24" W x 45" H)
- Pin configuration hitch docking for use on many carts
- 22 Amp/Hr AGM or Sealed Lead Acid Batteries – Qty-2
- Travel wheel for use when transporting without a load (cart)
- User interface hand controller (horn, key switch, lift button, throttle, 2-speed switch)
- The Lakeside Ergo-One PlusPower Tug is designed to reduce injuries associated with repetitive pushing and pulling of heavily laden carts. The Tug is an ergonomically-designed motorized tow vehicle used to pull a variety of single or multiple carts in a safe and efficient manner with very little effort from the operator. Lakeside’s Tug has applications throughout material handling environments and can pull virtually any piece of mobile equipment when used with available hitches and adjustable hitch receiver tubes.
- Welded Receiver Tube – Heavy-duty, permanent design incorporated into your new Lakeside cart during production. Must be ordered in conjunction with new Lakeside cart at time of cart order. Accepts the available male and female hitch ends below.
