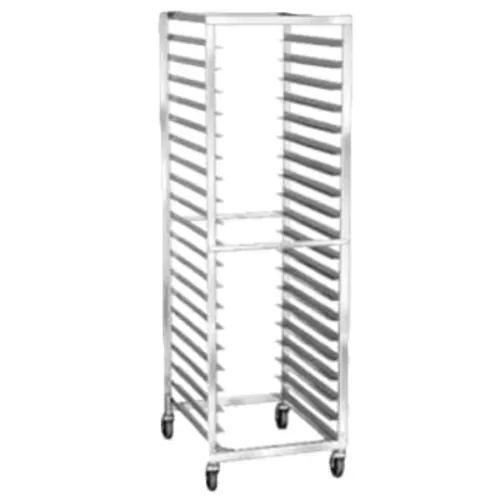

Lakeside Manufacturing 163 Sheet Pan/Tray Rack
MPN#: 163
Free Freight?
Quick Ship
$1,510.00 /
Login or add to cart to see our price!
Calculate
Product Protection
Starting at
Lakeside Manufacturing 163 Specifications
| Brand | Lakeside Manufacturing |
|---|---|
| Made in | USA |
| Certifications | NSF |
| Type | Mobile Bun Pan Racks |
| Assembled | Yes |
| Casters | Yes |
| Loading Style | End Load |
| Material | Stainless Steel |
| Rack Type | Sheet Pan/Tray Rack |
| Style | Storage |
| Sheet Pan Capacity | 41 Pans |
| Shelf Spacing | 1 7/16 Inches |
| Width (in) | 21 |
| Height (in) | 67.13 |
| Depth (in) | 26.25 |
| Length (in) | 26 1/4 Inches |
| Weight | 82.00 |
Additional Information on Lakeside Manufacturing 163
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing 163 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Lakeside Manufacturing 163 Description
Sheet Pan/Tray Rack, narrow opening, full height, open sides, capacity (41) 18" x 26" pans or (82) half size pans, channel ledge, 1-7/16" spacing, 5" casters, welded stainless steel construction, NSF, Made in USASheet Pan/Tray Rack, narrow opening, full height, open sides, capacity (41) 18" x 26" pans or (82) half size pans, channel ledge, 1-7/16" spacing, 5" casters, welded stainless steel construction, NSF, Made in USAStandard Features:
Durable, Efficient Storage System With All-welded Stainless Steel Construction
- Fully assembled.
- Welded stainless steel design is easy to sanitize and maintain.
- A variety of casters are available from economical 4” (102 mm) corner stem to heavy duty 5” (127 mm) recessed plate with No-Mark® polyurethane wheels.
- Both channel and angle style ledges are electronically welded to the uprights to withstand continual use. Tie bars are welded to the uprights for added rigidity.
Ideal For:
- Refrigerated or dry storage.
- Convenient sheet pan and tray transport.
- Hotels, central kitchens, hospitals and schools.
Optional Accessories:
- Welded pan top rod.
- Set of two each brake casters.
- Set of four each corner leg bumpers.
Specifications:
Unit shall be of all-welded construction and shall accommodate 18” x 26” (457 x 660 mm) pans or 14” x 18” (356 x 457 mm) pans and trays. Corner upright legs and top and bottom frame shall be of .104 x 3/4” x 1-1/4” angle stainless steel. Pan/tray ledges shall be of 16-gauge stainless steel and shall be welded to upright legs front and back. Top and bottom corner frame joints shall have 16-gauge reinforcing gussets welded in place for extra rigidity. Unit shall have a 16-gauge 1/2” x 1/2” angle stainless steel horizontal brace welded to upright legs at open ends front and back. Casters shall be 5” (127 mm) diameter swivel stem type, mounted to corner legs for upright stability. Unit shall be NSF listed.
