Krowne Metal D2712-10 Krowne Drop-In Ice Bin
SKU#: D2712-10
Calculate
Krowne Metal D2712-10 Specifications
| Number of Cold Plate Circuits | 10 |
|---|---|
| Installation Type | Drop In |
| Type | Drop In Ice Bins With Cold Plate |
| Brand | Krowne |
| Certifications | NSF |
| Capacity | 73 lb. |
| Width (in) | 27 |
| Height (in) | 15 |
| Depth (in) | 20 |
| Weight | 105 |
Additional Information on Krowne Metal D2712-10
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Krowne Metal D2712-10 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Krowne Metal D2712-10 Description

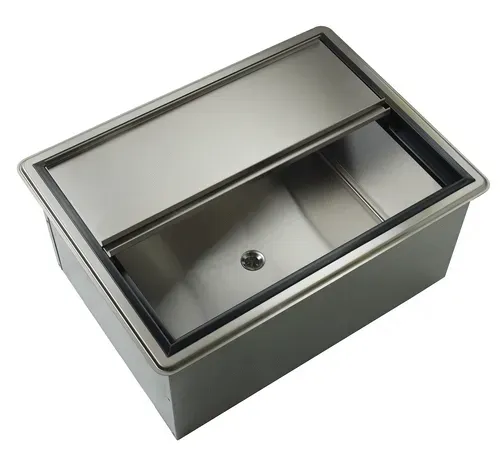

Krowne Ice Bin, drop-in, 10-circuit cold plate, 27"W x 20"D O.A., 73 lbs ice capacity, 10" deep stainless steel liner, fully insulated, stainless steel top, includes stainless steel sliding cover, NSF (25-1/4" x 18-1/4" cutout required)Krowne Ice Bin, drop-in, 10-circuit cold plate, 27"W x 20"D O.A., 73 lbs ice capacity, 10" deep stainless steel liner, fully insulated, stainless steel top, includes stainless steel sliding cover, NSF (25-1/4" x 18-1/4" cutout required)Drop-In Ice Bin Standard Features:
- Ice Bin Interior
- 20 gauge stainless steel
- Sliding Cover
- Two pieces 20 gauge stainless steel
- Plumbing
- Cold Plate: 1/2” IPS drain connection
- No Cold Plate: 1” IPS drain connection
- Cold Plate
- Cast aluminum post-mix cold plate with seven circuits. Each circuit is 5/16” OD stainless steel tubing. Two full with remainder to be half circuits. Bump and swedge fittings on ends.
- Front Apron
- 20 gauge stainless steel
- Sides
- 20 gauge stainless steel
- Plumbing
- 1” IPS drain connection with shut-off
- Ice Bin Interior
- 20 gauge stainless steel. 12” deep bin
- Optional Cover
- MB-SC: Sliding cover for mobile ice bin
