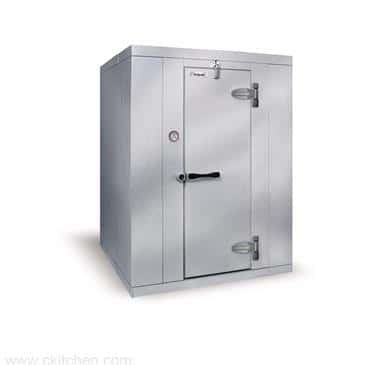

Kolpak KFX7-0808-CR Kold-Front Walk-In Cooler 7'-6.25" H, 7'-9" W, 7'-9" L floorless
SKU#: KFX7-0808-CR
1/11
Free Freight?
Quick Ship
$31,263.00
Contact us for details
Calculate
Product Protection
Starting at
- Walk-In Cooler, Kold-Front 7'-6" H 7'-9" W 7'-9" L floorless
- Refrigeration Technician Required.
- 2023 model, meets the newest EPA and DOE codes.
- With LED Lighting
- Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.
- For outdoor package pricing please call 800-555-0666
- Because of state requirements, there will be additional lead-times and costs for walk-ins shipping to California, Washington or Oregon.
Kolpak KFX7-0808-CR Specifications
| Nominal Depth | 8 Feet |
|---|---|
| Nominal Width | 8 Feet |
| Brand | Kolpak |
| Series | Kold-Front |
| Certifications | NSF |
| Shipping | Standard Shipping |
| Type | Kold-Front |
| Category | Walk In Cooler,Modular |
| Compressor Location | Remote |
| With Floor | Floorless |
| Usage | Indoor |
| Voltage | 208/230 Volts |
| Width (in) | 93 |
| Height (in) | 90 |
| Depth (in) | 93 |
| Weight | 1135.00 |
Additional Information on Kolpak KFX7-0808-CR
pcrefrigerationinstallationoperationmanual.pdf
doorspecsheet.pdf
doorwiringdiagram.pdf
preventivemaintenanceflyer.pdf
ownersmanual.pdf
airshieldinstallationoperationmanual.pdf
koldfrontflyer.pdf
kolpak-kfx7-0808-crspecsheet.pdf
air-shield-flyer.pdf
brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Kolpak KFX7-0808-CR Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Kolpak KFX7-0808-CR Description
KoldFront Indoor Walk-In Cooler with remote refrigeration. Nominal 7' 9" x 7' 9" x 7' 6.25" floorless, with vinyl screeds and 26 ga embossed galvalume interior and exterior walls, interior dimensions 7' 1" x 7' 1" x 7' 2.25". Standard door hardware including a deadbolting locking handle, two spring-loaded, field adjustable hinges, hydraulic closer, dial thermometer and light switch. Pre-charged remote refrigeration rated for indoors or outdoors. 263 sq. ft. NSF, cUL, UL
The Kolpak KFX7-088-CR Kold-Front Walk-In Cooler is a floorless, versatile indoor/outdoor remote unit, equipped with cooling technologies to deliver cool and steady air. With a 3/4 horsepower condenser and a 2.5" dial thermometer, the contents of your cooler can remain at a perfect temperature of 35 degrees Fahrenheit. This durable unit features a 26 ga. embossed galvalume interior and exterior with a standard 34" X 78" door. It is 90 inches tall, 93 inches wide, and 93 inches deep.
Walk-In Cooler, Kold-Front, 7'-6.25" H, 7'-9" W, 7'-9" L, floorless, 1/2 hp. medium temp (+35F) with pre-charged KPC48MOP, 5.7 amps, 208-230/60/1 & KAM16-052-1EC-PR-8, 0.9 amps, 115/60/1, indoor/outdoor remote unit, 26 ga. embossed galvalume interior & exterior, 4" vinyl/foam screeds, 2" dial thermometer
Standard Features:
The ArcticFox Temperature & Air Defrost Control is designed to simplify refrigeration cooler controls by combining the functions of a thermostat and defrost timeclock. The ArcticFox Temperature & Air Defrost Control designed for medium temperature applications 35°F and higher provides a built-in defrost clock that may be used to perform time-initiated and time terminated defrost cycles. The controller’s single-pole-double-throw relay controls the refrigeration and defrost cycles. ArcticFox Temperature Control for low-temperature application provides an easy-to-understand thermostat, which simplifies operation and eliminates end user frustration. The ArcticFox has been integrated to provide optimal performance and includes a battery powered clock that will ensure proper operation once power is restored.
- Thermostat
- Manual defrost
- 1st defrost 2 hrs after start up
- Visual Alarming - High temp/Low temp/Sensor
- Off time defrost on schedule or custom defrost
- Compressor protection - Maximum starts per hour
- Post Defrost Indicator To eliminate unnecessary/unwarranted service calls, the ArcticFox Temperature & Air Defrost Control (for Medium temp applications) alerts the user when it is coming out of a defrost cycle using the onboard display. The display alternates between dEF and the actual temperature measured by the air sensor. This continues until the temperature has reached setpoint, or for the amount of time set by dFt (Defrost Time) whichever is shorter.
- Modbus terminals
- 4-button user interface
- 3 digit 7-segment display
- Relay for solenoid/compressor
- The space temperature sensor is supplied with a 45-inch lead, and functions to control the space temperature of the room.
- The ArcticFox Temperature & Air Defrost Control and the ArcticFox Temperature Control include RS-485 Modbus communication.
- When the ArcticFox Controllers are in alarm, it notifies the user by illuminating the amber LED, and displays the appropriate Alarm Code:
- OSA - Open Sensor Alarm
- SSA - Shorted Sensor Alarm
- LtA - Low Temperature Alarm
- HtA - High Temperature Alarm
