Name: IMC/Teddy SCS-3-8686 Scullery Sink
Brand: IMC/Teddy
SKU: SCS-3-8686
Price: 7325.0 USD
Availability: LimitedAvailability

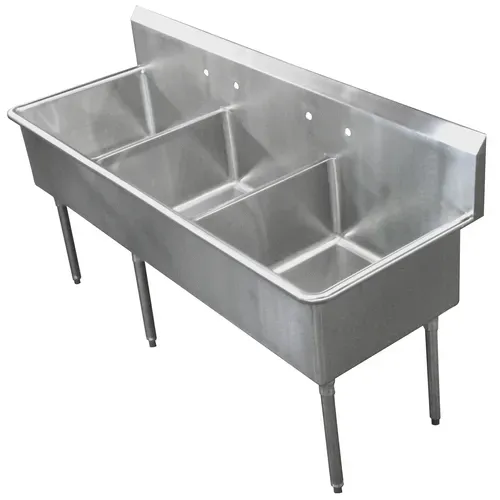

IMC/Teddy SCS-3-8686 Scullery Sink

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$7,325.00

or enjoy small payments $157.41/mo.

Calculate

Product Protection

Starting at

Reward Points

You will earn 12728

$$$ View IMC/Teddy Promos

View all IMC/Teddy Three Compartment Sinks

IMC/Teddy SCS-3-8686 Specifications

Brand	IMC/Teddy
Made in	USA
Type	Corner Sinks
Gauge	14 Gauge
Width (in)	83
Height (in)	44
Depth (in)	83
Weight	265.00

Additional Information on IMC/Teddy SCS-3-8686

utilitysinkbrochure.pdf

brochure.pdf

imc-teddy-scs-3-8686.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

IMC/Teddy SCS-3-8686 Description

Scullery Sink, three compartment, corner, 83"W x 83"D x 44"H overall size, (2) 20"W x 28" front-to-back x 14" deep & (1) 28"W x 28" front-to-back x 14" deep compartments, (2) 30" drainboards, 10"H backsplash, top & sink bowls have 3/4" coved radius, 3-1/2" drain openings, 14/300 stainless steel construction, 16 gauge stainless steel legs & gussets, adjustable feet, Made in USA

Options for IMC/Teddy SCS-3-8686

Cover Options

Cover Storage Compartment +$367.00 Sink Cover, stainless steel +$232.00

Drainboard Options

Drainboard Pitch For Sink +$262.00 Extra Drainboard (priced per foot) +$200.00

Provisions for Additional Equipment

Provision for Heater +$277.00 Provision for Undercounter Dishwasher +$354.00 Provision for Water Pump +$813.00 Provisions for Sink Mounted Shelf/Pot Rack +$927.00

Waste and Scrap Options

Raised stainless steel Scrap Chute 6" diameter, raised edge 3" deep +$350.00 Weld in Disposer Cone with Control Bracket (Note: cone not by Sefi) +$358.00

16" Sink

16" Deep Sink in Lieu of Standard, 3 compartment +$285.00

Structural Options

Corner Turn without Curved Rack Guide (Top or Shelf) +$802.00 Finished stainless steel rear of backsplash (priced per foot) +$121.00 Return Splash +$386.00 Sanitizer Guard, perforated, stainless steel +$257.00 Weld Scrapping Trough to Sink/Disposal Cone +$485.00 Non-Flush Front (Increases W) DEDUCTION: 25% Enclosed Backsplash (priced per foot) +$14.00 Set-Up Welded Table & Crated +$393.00 Electrical Receptacle Cut-Out Only +$33.00 Electrical Receptacle, with cover & box, (220V, 30 amps max) +$209.00 Utility Chase +$1,396.00 Mod Into Dishwasher +$253.00 Support Bracket for Lever Drain Handle +$112.00

Drain Options

Basket Drain +$42.00 Overflow Compartment, 6" wide stainless steel perforated basket +$1,566.00 Twist Waste Valve with Overflow, 3-1/2" sink opening, 2" drain outlet, cast bronze, stainless steel strainer, nickel-plated wearing parts +$250.00 Twist Waste Valve, 3-1/2" sink opening, 2" drain outlet, cast bronze, stainless steel strainer, nickel-plated wearing parts +$189.00

Cutting Board

Cutting Board Below (priced per sq. foot) +$20.00
