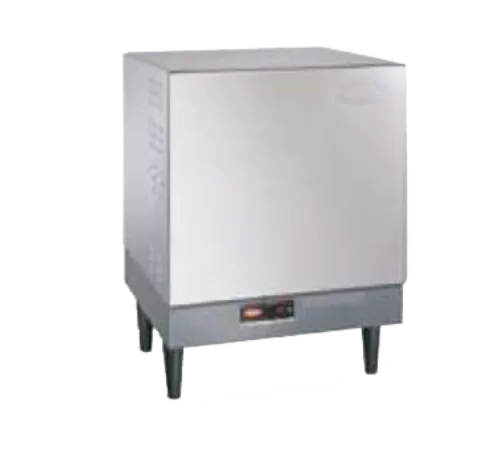

Hatco S-17 Imperial 16 Gallon Electric Booster Heater
MPN#: S-17
Free Freight?
Quick Ship
$3,641.55
Calculate
Product Protection
Starting at
Hatco S-17 Specifications
| Phase | 3 Phase |
|---|---|
| Type | Imperial |
| Brand | Hatco |
| Made in | USA |
| Certifications | cULus |
| Capacity | 16 Gallon |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 208 Volts |
| Wattage | 17 kW |
| Width (in) | 23.63 |
| Height (in) | 31.13 |
| Depth (in) | 22.75 |
| Weight | 200.00 |
Additional Information on Hatco S-17
cafeteriabuffetsolutions.pdf
ownersmanual.pdf
stadiumconcessionsolutions.pdf
restaurantsolutions.pdf
partslist.pdf
supermarketin-storesolutions.pdf
catalogbrochure.pdf
hotellodgingsolutions.pdf
hatco-s-17specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Hatco S-17 Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Hatco S-17 Description
Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 17.25kW, NSF, cULus, Made in USAImperial Booster Heater, Electric, 16-gallon storage capacity, 17.25 kW, stainless steel stainless steel front panel, powder-coated silver-gray hammertone body, Castone tank, NSF, cUL, ULStandard Features:
The Hatco Imperial Electric Booster Water Heater combines quality construction and rugged dependability to provide up to 573 GPH (2169 LPH) of sanitizing rinse water. Dishes and flatware air-dry instantly to save time, space and money. Storage capacity is 16 gallons (60 liters).Thermostats can be lowered to a 140° F (60° C) setting for low-temp dishmachines, and service area is accessible from the front to permit easy installation, even next to other equipment.
- All models include a Castone® lined tank with a 10-year limited warranty
- Each booster has a built-in heat trap and fiberglass insulation to minimize heat loss
- A stainless steel front panel and powder- coated silver-gray hammertone body is standard on all Imperial models
- Hatco Electric Booster Heaters are factory pre-plumbed and pre-wired with calibrated immersion thermostats and high-temperature limit switch
- Features include a temperature/pressure relief valve, a pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, pilot indicator light, On/Off switch and a low-water cut-off to prevent element burnout due to a low water condition
Options: (Available at time of purchase only)
- Stainless Seel Body and Base
- Security Package (Torx® screws and control cover)
Accessories:
- Back Pressure Relief Valve
- Shock Absorber (reduces water hammer)
- Additional Brass Pressure Reducing Valve with Bypass
- Additional Stainless Steel Floor Mounting Leg Assembly
- Blended Phosphate Injection System (not for potable water)
- Additional Stainless Steel Adjustable Legs 6" - 7" (152 - 178 mm)
