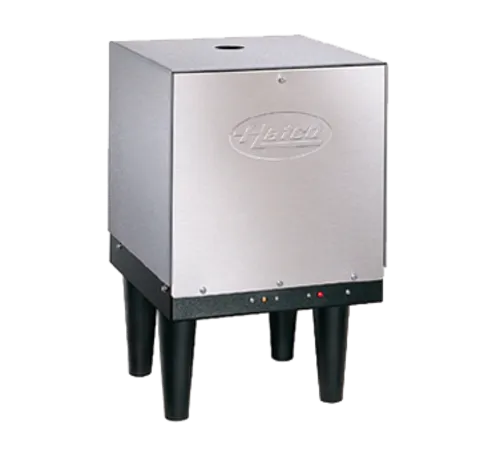

Hatco MC-11 3.2 gallon Electric Booster Heater
MPN#: MC-11
Free Freight?
Quick Ship
$2,173.05 /
Calculate
Product Protection
Starting at
Hatco MC-11 Specifications
| Phase | 1 Phase |
|---|---|
| Brand | Hatco |
| Made in | USA |
| Certifications | NSF |
| Capacity | 3.2 gallon |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 240 Volts |
| Wattage | 11 kW |
| Width (in) | 11.75 |
| Height (in) | 18.5 |
| Depth (in) | 12.88 |
| Weight | 48.00 |
Additional Information on Hatco MC-11
ownersmanual.pdf
catalogbrochure.pdf
hatco-mc-11.specsheet.pdf
parts-list.pdf
hatco-mc-11.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Hatco MC-11 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Hatco MC-11 Description
Booster Water Heater, electric, 3.2 gallon storage capacity, fast recovery, stainless steel tank & front panel, powder-coated silver-gray hammertone body, black base, 6" legs, 11.4kW, NSF, cUL, ULBooster Water Heater, electric, 3.2 gallon storage capacity, fast recovery, stainless steel tank & front panel, powder-coated silver-gray hammertone body, powder coated silver gray hammertone body, black base, 6" legs, 11.4 kW, NSF, cUL, ULStandard Features:
The Hatco Compact Electric Booster Water Heater provides all the 180°F (82°C) final rinse water required to sanitize and flash-dry dishes and flatware. The space saving Compact is easy to install next to the dishwasher with slide brackets or on 6" (152 mm) legs. The storage capacity is 6 gallons (23 liters).
- Each booster has fiberglass insulation to minimize heat loss
- Available with slide brackets for mounting under a dish-table
- All models include a Castone® lined tank with a 10-year limited warranty
- A stainless steel front panel and powder-coated silver-gray hammertone body is standard on all Compact models
- Hatco electric booster heaters are factory pre-plumbed and pre-wired with calibrated immersion thermostat and high-temperature limit switch
- Swing-away front panels with low-water cut-off, control fuses and transformer allow quick access to probes and elements for easier serviceability
- Features include a temperature/pressure relief valve, a pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, pilot indicator light, on-off switch, and a low-water cut-off to prevent element burnout due to a low water condition
Options: (Available at time of purchase only)
- Stainless steel body and base
- Security package (Torx screws and control cover)
Accessories:
- Additional slide brackets
- Back pressure relief valve
- Shock absorber (reduces water hammer)
- Additional stainless steel floor mounting leg assembly
- Additional brass pressure reducing valve with by-pass
- Blended Phosphate injection system (not for potable water)
- Additional stainless steel adjustable legs 6" - 7" (152 - 178 mm)
