Hatco CWB-5FB Perforated false bottom

Name: Hatco CWB-5FB Perforated false bottom
Brand: Hatco
SKU: CWB-5FB
Price: 257.95 USD
Availability: LimitedAvailability

SKU#: CWB-5FB

Hatco CWB-5FB Perforated false bottom

Free Freight?

Quick Ship

$257.95

View all Hatco Parts & Accessories

Hatco CWB-5FB Specifications

Brand	Hatco

Additional Information on Hatco CWB-5FB

restaurantsolutions.pdf

cafeteriabuffetsolutions.pdf

hotellodgingsolutions.pdf

partslist.pdf

conveniencestoresolutions.pdf

ownersmanual.pdf

supermarketin-storesolutions.pdf

catalogbrochure.pdf

stadiumconcessionsolutions.pdf

hatco-cwb-5fb.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Hatco CWB-5FB Description

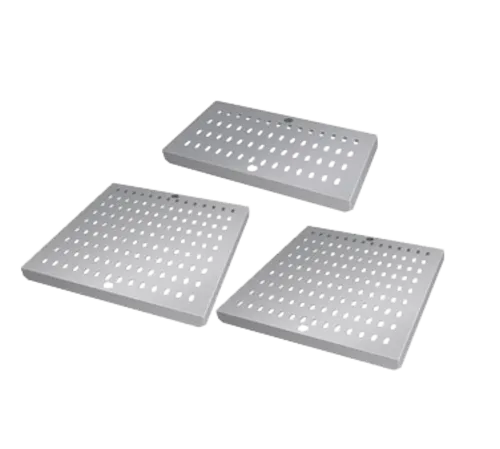

Perforated false bottom, for CWB-5, uses (1) CWB-1FB & (2) CWB-2FB

Perforated false bottom, for CWB-5, uses (1) CWB-1FB and (2) CWB-2FB

Standard Features:

Hatco's Refrigerated Drop-In Well keeps pre-chilled food products at safe serving temperatures. Unique top angled inside wall design allows cold air to effectively blanket your food product to keep the food optimally cold and fresh. This is a top mount unit that holds full-size pans, available in one-through six-pan configurations. The electronic control assembly can be conveniently mounted to either side of the condensing unit or remotely mounted up to four feet (1219 mm) from the unit (cannot be mounted over condensing coil)

1" NPT brass drain simplifies cleaning
Environmentally friendly insulation used throughout
Top mount unit holds full-size pans in 1- to-6-pan configurations
Matches the Hatco line of Heated Wells for a fully integrated look
Optimal insulation on sides and bottom ensure better cold retention
Auto-defrost is activated through an advanced electronic controller programmed at customer location
NSF 7 approved cold wall construction utilizes R-404A refrigerant keeping food product cold without drying it out
Adjustable condensing unit can rotate 90º or 180º on all models for easy venting adjustments and flexibility at installation
Mobile condensing unit can be moved in 6.5" (165 mm) increments from end to center on the four-, five- and sixpan units (see drawing on page 2)
Easy serviceability with a sight glass, service valves, dryer/filter and a receiver. Long, flexible refrigerant line (ability to pullout condensing unit) for service

Options: (Available at time of purchase only)

Slant Kit to give Cold Wells a 5º tilt
Additional Four-Year Parts Only Warranty on the Compressor at Time of Unit Purchase (Not available for export voltages)

Accessories:

Pan Support Bars
- 20" (508 mm), hangs from pan shelf
- 12" (305 mm), hangs from 20" (508 mm) Pan Support Bar
Stainless Steel Food Pans:
- Full-Size (6" [152 mm] H)
- Full-Size (4" [101 mm] H)
- Full-Size (2.5" [64 mm] H)
- Half-Size (2.5" [64 mm] H)
- Third-Size (2.5" [64 mm] H)
False Bottom (perforated false bottom)
Trivets:
- Full-Size (10.125" [259 mm] W x 18" [457 mm] D)
- Half-Size (10.19" [259 mm] W x 7.625 [194 mm] D)

Specifications:

Refrigerated Drop-In Wells - The NSF 7 approved Refrigerated Drop-in Well shall be a Model ... as manufactured by the Hatco Corporation, Milwaukee, WI 53234 U.S.A. With 24/7 parts and service assistance (U.S. and Canada only), the Refrigerated Drop-in Well shall be rated at ... watts, ... volts, ... hp, and be .... inches (millimeters) in overall width and be ... inches (millimeters) in overall depth. It shall utilize R-404A refrigerant and consist of aluminized steel housing with a stainless bezel, an electronic temperature control, pan support bars for full-size pans, condensing unit (can be rotated), compressor, flexible refrigerant lines, sight glass, service valves, receiver, and dryer/filter. Accessories may include pan support bars, false bottom, trivets and stainless steel food pans. Warranty consists of 24/7 parts and service assistance (U.S. and Canada only).
