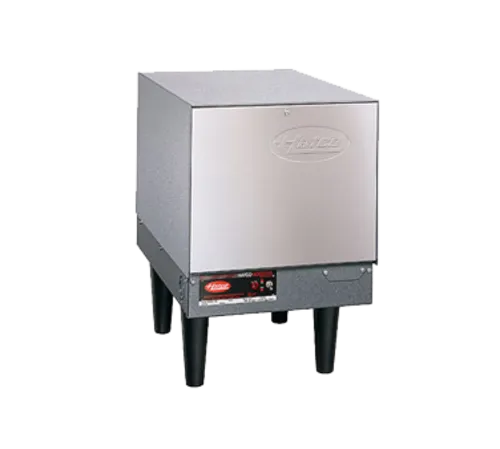

Hatco C-9 Compact 6 gallon Electric Booster Heater
MPN#: C-9
Free Freight?
Quick Ship
$2,426.05 /
Calculate
Product Protection
Starting at
Hatco C-9 Specifications
| Phase | 3 Phase |
|---|---|
| Type | Compact |
| Brand | Hatco |
| Made in | USA |
| Certifications | cULus |
| Operation | Electric |
| Capacity | 6 gallons |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 208 Volts |
| Wattage | 9 kW |
| Width (in) | 13 |
| Height (in) | 19.75 |
| Depth (in) | 20.75 |
| Weight | 118.00 |
Additional Information on Hatco C-9
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Hatco C-9 Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Hatco C-9 Description
Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 9.0kW, NSF, cULus, Made in USACompact Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, Castone tank, NSF, cUL, ULStandard Features:
The Hatco Compact Electric Booster Water Heater provides all the 180°F (82°C) final rinse water required to sanitize and flash-dry dishes and flatware. The space saving Compact is easy to install next to the dishwasher with slide brackets or on 6" (152 mm) legs. The storage capacity is 6 gallons (23 liters).
- Each booster has fiberglass insulation to minimize heat loss
- Available with slide brackets for mounting under a dish-table
- All models include a Castone® lined tank with a 10-year limited warranty
- A stainless steel front panel and powder-coated silver-gray hammertone body is standard on all Compact models
- Hatco electric booster heaters are factory pre-plumbed and pre-wired with calibrated immersion thermostat and high-temperature limit switch
- Swing-away front panels with low-water cut-off, control fuses and transformer allow quick access to probes and elements for easier serviceability
- Features include a temperature/pressure relief valve, a pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, pilot indicator light, on-off switch, and a low-water cut-off to prevent element burnout due to a low water condition
Options: (Available at time of purchase only)
- Stainless steel body and base
- Security package (Torx screws and control cover)
Accessories:
- Additional slide brackets
- Back pressure relief valve
- Shock absorber (reduces water hammer)
- Additional stainless steel floor mounting leg assembly
- Additional brass pressure reducing valve with by-pass
- Blended Phosphate injection system (not for potable water)
- Additional stainless steel adjustable legs 6" - 7" (152 - 178 mm)
Hatco C-9 Accessories
Hatco C-9 Reviews
There are no reviews yet for this product.
Questions and Answers
what is the lead time on this unit
Depends on order details. Please contact sales 800-555-0666 ext 1
