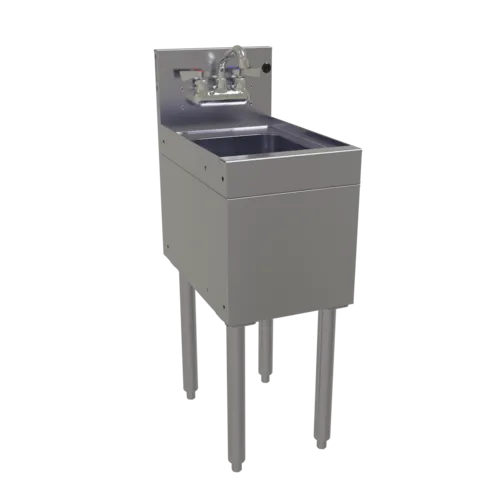

Glastender HSA-12 Underbar Hand Sink Unit

MPN#: HSA-12
Free Freight?
Quick Ship
$1,046.65 /
$891.00 /
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 1047

Glastender HSA-12 Specifications

Number of Bowls1
Backsplash Modifications7"H Backsplash
Installation TypeFreestanding
TypeHand Sinks
Number of DrainboardsZero Drainboard
BrandGlastender
Number of Compartments1
CertificationsETL
FaucetFaucet Included
MaterialStainless Steel
Width (in)12
Height (in)37
Depth (in)19
Weight45.00

Additional Information on Glastender HSA-12

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Glastender HSA-12 Certifications

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Glastender HSA-12 Description

Underbar Hand Sink Unit, free standing, 12"W x 19"D, 9-1/4" wide x 11-1/2" front-to-back x 6" deep bowl, splash mount faucet (low lead compliant), stainless steel construction, legs with adjustable bullet feet, ETL-Sanitation, NSF/ANSI 61, Annex G

The Glastender HSA-12 Underbar Hand Sink Unit is a simple free-standing sanitation unit that provides a convenient hot and cold water source for your bar. If you’re looking for a modular underbar system this hand sink integrates perfectly with other Glastender underbar equipment.

This hand sink unit stands at 34” tall including the backsplash and the top working surface is 30” high which keeps it flush with other Glastender underbar equipment. The external dimensions of the footprint are 19” front to back and 12” wide.

The hot and cold water faucet is mounted to the integrated 4” high backsplash and can be easily serviced from the front by removing 4 screws. ¼” radiused corners make it difficult for dirt to stick keeping the unit easy to clean. The sink bowl is 6” deep, 9-¼” wide and 11-½” from front to back.

20-gauge stainless steel is used for the construction of the unit except for the 16” long 1-⅝” diameter legs which are made from 16 gauge stainless steel. The unit is simple to level with 4 adjustable bullet feet.

The faucet requires hot and cold water through ⅜” sink leads and the sink bowl uses a 1-½” I.P.S. threaded drain.

The Glastender HSA-12 Underbar Hand Sink Unit has ETL-Sanitation certification and meets NSF/ANSI 61, Annex G Standards.



Standard Features:
  • All stainless steel construction
  • Adjustable stainless steel bullet feet
  • Faucets are standard and ship mounted
  • All faucets are NSF/ANSI 61, Annex G low lead compliant
  • 9-1/4″ by 11-1/2″ by 6″ deep sink bowl with hot and cold water faucet
  • Manufactured with total welded construction to meet NSF® standards
  • All wet waste sink models include a lift-out perforated plastic wet waste strainer
  • One-piece seamless top and backsplash featuring 1/4″ radius corners for easy cleaning
  • Soap dispenser (available on select models) is easily refilled from above, no need to crawl under equipment
  • Models HSA-12-D, HSB-12-D and HSB-12-AD feature a soap dispenser and front skirt mounted C-fold paper towel dispenser
  • Models DHSA-18, DHSB-12 and DHSB-18 feature a soap dispenser and hinged front access door to conceal C-fold paper towel dispenser

Options for Glastender HSA-12

Faucet options
Backsplash height
What is included
  • Warranty: 1 year parts & labor warranty
  • Aerator options: Aerator, faucet, 2.0 GPM, standard
