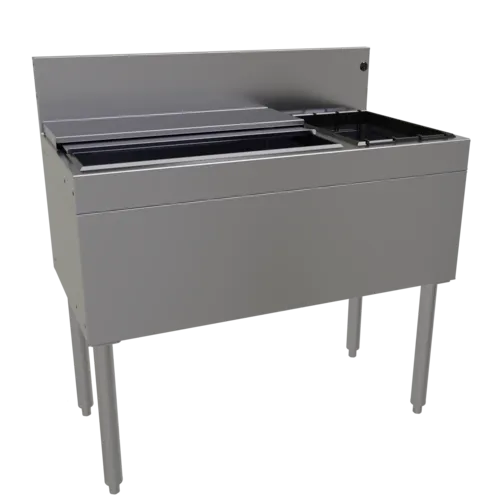

Glastender CBA-36R-CP10 Underbar Ice Bin/Cocktail Unit, Stainless Steel, 36"W x 19"D with 6-Bottle Storage and 67 lbs. Ice Capacity

MPN#: CBA-36R-CP10
Free Freight?
Quick Ship
$3,109.15 /
$2,646.00 /
or enjoy small payments $56.86/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 3109

Glastender CBA-36R-CP10 Specifications

Size36"W x 19"D
Bottle Storage6-Bottle Storage
Backsplash7"H
ConstructionStainless Steel
BrandGlastender
CertificationsETL
Capacity67 lbs.
Width (in)36
Height (in)37
Depth (in)19
Weight170.00

Additional Information on Glastender CBA-36R-CP10

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Glastender CBA-36R-CP10 Certifications

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Glastender CBA-36R-CP10 Description

Underbar Ice Bin/Cocktail Unit, with bottle well storage, 36"W x 19"D, built-in 10-circuit cold plate, 67 lbs. ice capacity, 10-1/2" deep bin liner, ABS plastic breaker strip around ice bin liner, includes stainless steel sliding covers, 6-bottle insulated storage compartment on right, includes (2) wire bottle racks, stainless steel construction, stainless steel legs with adjustable bullet feet, ETL-Sanitation

The Glastender CBA-36R-CP10 Underbar Ice Bin/Cocktail Unit is one of the best ways of maximizing the space you have in your underbar. This combo unit can hold 61 lbs of ice and keep between 6 and 8 bottles nice and frosty in the separated right side bottle well. If you need a combo unit with the bottle well on the left, see the Glastender CBA-36L-CP10 Underbar Ice Bin/Cocktail Unit.

A ten circuit cold plate is integrated into the bottom of the 22” wide 15” front-to-back and  10-½” deep and ice compartment ensuring all the drinks you serve from the soda gun come out cold as ice. CFC-free foamed-in-place insulation will keep the ice in this combo unit from becoming water too soon. A ¾” MPT fitting is used for the drain of this unit.

The sliding stainless steel cover opens smooth as silk because of the PVC plastic breaker strip that it slides on. Aside from keeping the lid sliding smoothly, the breaker strip acts as a thermal barrier keeping heat entering the ice storage chamber.

On the right side of the unit, Six to eight bottles can be kept at arms reach and cooled in the separate bottle well. When the well needs more ice the 2 included wire racks make removing the bottles much easier.

Durable 20 gauge stainless steel is used in the construction of this combo unit to make sure it looks as good as the day you install it even years down the line. Four 16” long legs made from 1-⅝” diameter 16 gauge steel are more than enough to support the weight of this unit and the ice within. Four height adjustable stainless steel bullet feet are used to make sure this unit is level. This unit is 36” in width, 19” from front to back, and 37” in height (with the backsplash). The 7” backsplash protects the wall behind the unit from liquid damage and also matches the backsplash height of other Glastender underbar equipment.

Naturally, this cocktail unit will work perfectly with any other Glastender underbar units. For convenient storage of more bottles, you can install an optional single or double 36” speed rail on the front of this unit.

The Glastender CBA-36R-CP10 Underbar Ice Bin/Cocktail Unit is ETL-Sanitation certified.

Glastender CBA-36R-CP10 Underbar Ice Bin/Cocktail Unit, Stainless Steel, 36W x 19D with 6-Bottle Storage and 67 lbs. Ice Capacity



Standard Features:
  • Sliding stainless steel cover
  • All stainless steel construction
  • Adjustable stainless steel bullet feet
  • CFC free foamed-in-place insulation
  • One-piece, seamless top and backsplash
  • Available in 6″ incremental lengths from 30″ to 60″
  • Tubing chase available centered in backsplash of 12″ and larger models
  • Ten circuit cold plate is available on units where the main ice bin liner is 22″ or wider
  • 24″ deep version provides larger ice bin not just a deck extension on the back of the 19″ deep model
  • PVC plastic breaker strip around ice bin liner: creates 5/16″ raised edge around liner, acts as thermal barrier to prevent heat transfer, and makes the cover slide easier
  • Combo Ice Bins combine separate draining ice bin and bottle well compartments into one integral unit. The fully insulated 12″ bottle well comes with two wire racks for ice chilled storage of 6 or 8 bottles in 19″ or 24″ deep ice bins, respectively. The bottle well may be located on the left, right, or both sides of the ice bin.

Options for Glastender CBA-36R-CP10

Backsplash height
What is included
  • Warranty: 1 year parts & labor warranty
