Glastender CBA-36L-CP10 Underbar Ice Bin/Cocktail Unit, Stainless Steel, 36"W x 19"D with 6-Bottle Storage and 67 lbs. Ice Capacity

MPN#: CBA-36L-CP10
Free Freight?
Quick Ship
$3,109.15
$2,646.00
or enjoy small payments $56.86/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 3109

Glastender CBA-36L-CP10 Specifications

Size36"W x 19"D
Bottle Storage6-Bottle Storage
Backsplash7"H
ConstructionStainless Steel
BrandGlastender
CertificationsETL
Capacity67 lbs.
Width (in)36
Height (in)37
Depth (in)19
Weight170.00

Additional Information on Glastender CBA-36L-CP10

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Glastender CBA-36L-CP10 Certifications

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Glastender CBA-36L-CP10 Description

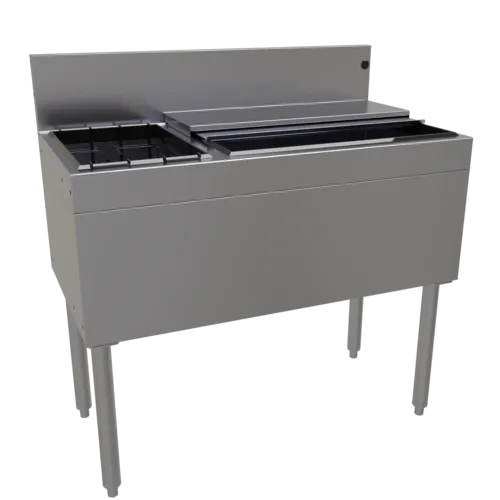

Underbar Ice Bin/Cocktail Unit, with bottle well storage, 36"W x 19"D, built-in 10-circuit cold plate, 67 lbs. ice capacity, 10-1/2" deep bin liner, ABS plastic breaker strip around ice bin liner, includes stainless steel sliding covers, 6-bottle insulated storage compartment on left, includes (2) wire bottle racks, stainless steel construction, stainless steel legs with adjustable bullet feet, ETL-Sanitation

Maximize the space you have available in your underbar with the Glastender CBA-36L-CP10 Underbar Ice Bin/Cocktail Unit. With 61 lbs of ice storage and an integrated bottle well that can chill 6 to 8 bottles, this unit is an easy pick

Accessing ice by sliding the cover open is as smooth as can be thanks to the PVC plastic breaker strip that it rides on. This strip isn’t just for allowing the lid to open and close smoothly, it also provides a thermal barrier that keeps heat from getting in.

The 10-½” deep 15” front-to-back and 22” wide ice compartment in this model has a ten circuit cold plate built into the bottom making sure all the beverages from your soda gun are ice cold. Foamed-in-place CFC-free insulation is environmentally friendly and will keep your ice from melting too quickly. Water drains from this unit through a ¾” MPT fitting

Six to eight bottles can be kept chilled and easy to reach from the separate bottle well on the left side of this combo unit (If you’re looking for a combo unit with the bottle well on the right see the Glastender CBA-36R-CP10 Underbar Ice Bin/Cocktail Unit). Two wire racks are included to stow the bottles and easily remove them when ice needs to be added to the well.

This unit is made from sturdy 20 gauge stainless steel that is easy to maintain and will look good as new for many years to come. The weight of the unit and all the ice is supported by four 16” long 1-⅝” diameter legs made from thick 16 gauge stainless steel. Making sure this unit is level is simple with 4 adjustable stainless steel bullet feet. The overall external dimensions for this unit are 37” in total height (including the backsplash), 36” in width and 19” from front to back.

With the 7” backsplash and the main working surface 30” from the floor this unit is a perfect match with other Glastender underbar equipment. Single or double 36” speed rails can be added to the front of this combo unit for even more convenience.

The Glastender CBA-36L Underbar Ice Bin/Cocktail Unit is ETL-Sanitation certified.

Glastender CBA-36L-CP10 Underbar Ice Bin/Cocktail Unit, Stainless Steel, 36W x 19D with 6-Bottle Storage and 67 lbs. Ice Capacity



Standard Features:
  • Sliding stainless steel cover
  • All stainless steel construction
  • Adjustable stainless steel bullet feet
  • CFC free foamed-in-place insulation
  • One-piece, seamless top and backsplash
  • Available in 6″ incremental lengths from 30″ to 60″
  • Tubing chase available centered in backsplash of 12″ and larger models
  • Ten circuit cold plate is available on units where the main ice bin liner is 22″ or wider
  • 24″ deep version provides larger ice bin not just a deck extension on the back of the 19″ deep model
  • PVC plastic breaker strip around ice bin liner: creates 5/16″ raised edge around liner, acts as thermal barrier to prevent heat transfer, and makes the cover slide easier
  • Combo Ice Bins combine separate draining ice bin and bottle well compartments into one integral unit. The fully insulated 12″ bottle well comes with two wire racks for ice chilled storage of 6 or 8 bottles in 19″ or 24″ deep ice bins, respectively. The bottle well may be located on the left, right, or both sides of the ice bin.

Options for Glastender CBA-36L-CP10

Backsplash height
What is included
  • Warranty: 1 year parts & labor warranty
