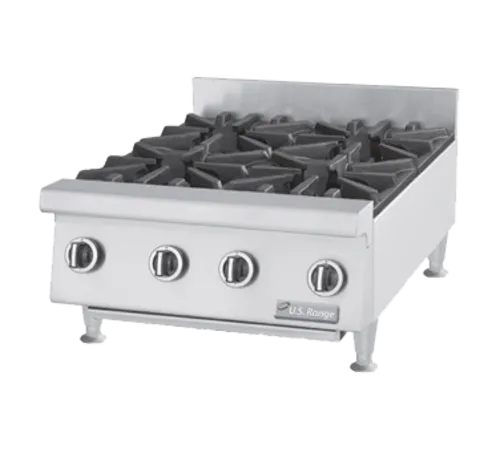

Garland US Range UTOG24-4 4 Burner Countertop Gas Hotplate / Range with Manual Controls - 30,000 BTU
MPN#: UTOG24-4
Free Freight?
Quick Ship
$2,555.00 /
Contact us for details
Calculate
Product Protection
Starting at
- NOTE! Backguard is required.
- Please see specification sheet for installation clearance requirements
Garland US Range UTOG24-4 Specifications
| Total BTU | 12000 - 55000 |
|---|---|
| Burner Type | 30,000 BTU Performer Pro open burners |
| Installation Type | Countertop |
| Burner Style | Grates |
| With Griddle | No |
| Construction | Stainless Steel |
| Brand | Garland/US Range |
| Certifications | NSF |
| Number of Burners | 4 |
| Control Type | Manual |
| BTU | 30,000 BTU |
| Base | Countertop |
| BTU per Burner | 120,000 |
| Category | Hot Plates |
| Gas Type | LP |
| Heat | Gas |
| Range Configuration | Burners |
| Usage | Heavy Duty |
| Width (in) | 23.63 |
| Height (in) | 13 |
| Depth (in) | 32 |
| Weight | 135.00 |
Additional Information on Garland US Range UTOG24-4
parts-manual.pdf
parts-performer-xtra-px-series.pdf
parts-performer-s-ps-series.pdf
parts-performer-ii-p-series.pdf
garland-us-range-utog24-4.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range UTOG24-4 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range UTOG24-4 Description
Commercial Hotplate, 24" W, countertop, gas, heavy-duty, (4) 30,000 BTU Performer Pro open burners, manual controls, pilot lights, stainless steel front, sides and back, 3-1/2" front rail, 4" high adjustable legs, 120,000 BTU (US Range), CSA, NSF
Hotplate, 24" W, countertop, gas, heavy-duty, (4) 30,000 BTU Performer Pro open burners, manual controls, pilot lights, stainless steel front, sides and back, 3-1/2" front rail, 4" high adjustable legs, 120,000 BTU (US Range), CSA, NSF
US Range designed these heavy duty counter hot plates for high-volume production while offering the flexibility to match up with a full counter lineup. Models available with 2, 4, 6 and 8 open top burner combinations. Available in nominal imperial widths 12” (300mm) to 48”(1200mm) with 13” (330mm) height, and 32” (814mm) depth. Split ergonomic cast iron grates protect pilots from spill-overs, and are easy to handle and clean. Each individually valve-controlled burner is rated at 30,000 BTU/h (8.78 kW) natural gas or 26,000 BTU/h (7.61 kW) propane gas. Stainless steel front, sides and back with large capacity stainless steel crumb tray. For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use but are intended for commercial applications only. Garland/U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications.
Standard Features:
- 4” SS adjustable legs
- SS front, sides and back
- SS large capacity crumb tray
- Pilots are protected from spills
- Burners are controlled with individual adjustable valve
- Models are available with 2, 4, 6, and 8 open-top burners
- Split ergonomic grates which are easy to handle and clean
- 30,000 BTU (Natural Gas) Performer Pro 2-piece octagonal gas burners
- SS front rail; 4” (102mm) deep overall with 3 1/2” (89mm) top work surface
- 3/4” NPT gas regulator with “T” gas manifold connection for straight through rear or flush mount gas connections.
- Stainless stand with solid top and holding shelves, and adjustable feet
- Stainless stand with solid top and holding shelves, and casters, (locking front)
- Removable stainless steel attachment condiment rail with universal 1/9 or 1/3 food pan cut-outs (pans supplied by others)
- Stainless steel skirt for dias/counter surface mounting. The stainless steel skirt will reduce overall unit height by 1 3/4” (44.45mm).
US Range designed these heavy duty counter hot plates for high-volume production while offering the flexibility to match up with a full counter lineup. Models available with 2, 4, 6 and 8 open top burner combinations. Available in nominal imperial widths 12” (300mm) to 48”(1200mm) with 13” (330mm) height, and 32” (814mm) depth. Split ergonomic cast iron grates protect pilots from spill-overs, and are easy to handle and clean. Each individually valve-controlled burner is rated at 30,000 BTU/h (8.78 kW) natural gas or 26,000 BTU/h (7.61 kW) propane gas. Stainless steel front, sides and back with large capacity stainless steel crumb tray. For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use but are intended for commercial applications only. Garland/U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications.
