Garland US Range MCO-GD-20-S Double Deck Gas Convection Oven with Dials / Buttons Contols, 120 Volts
MPN#: MCO-GD-20-S
1/2
Free Freight?
Quick Ship
$16,354.00 /
Contact us for details
Calculate
Product Protection
Starting at
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range MCO-GD-20-S Specifications
| Total BTU | 104000 - 180000 |
|---|---|
| Range Base Style | Convection Oven |
| Oven Interior Style | Deep Depth |
| Control Type | Dials / Buttons |
| Deck | Double |
| Installation Type | Freestanding |
| Brand | Garland/US Range |
| Certifications | NSF |
| BTU | 120,000 BTU |
| Power Type | Gas |
| Size | Full |
| Interior Finish | Porcelain |
| Legs | 6-1/2" legs |
| Controls | Solid State |
| Timer | 60 Minute |
| Door Type | Dependent |
| Material | Stainless Steel |
| Voltage | 120 Volts |
| Wattage | 11.2 - 20.8 Kilowatts |
| Width (in) | 38 |
| Height (in) | 70.5 |
| Depth (in) | 44.5 |
| Weight | 1090.00 |
Additional Information on Garland US Range MCO-GD-20-S

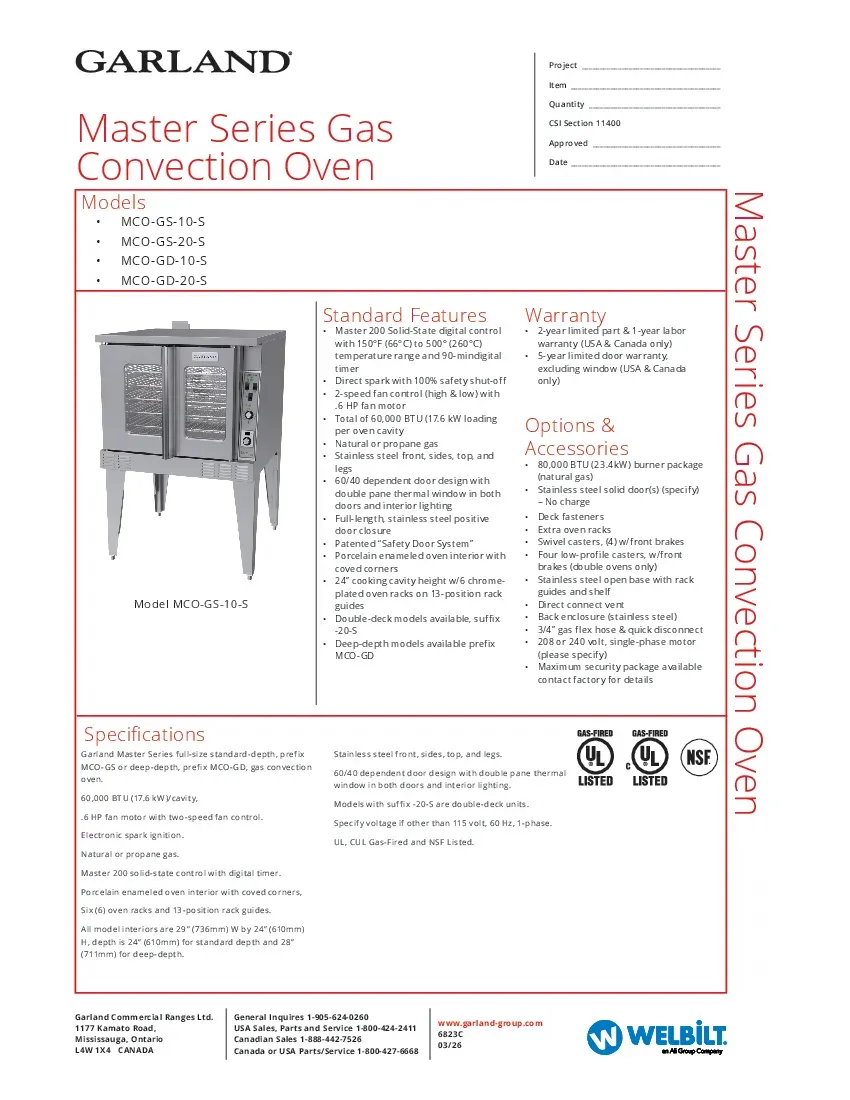

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range MCO-GD-20-S Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Garland US Range MCO-GD-20-S Description
Master Series Convection Oven, gas, double-deck, deep depth 43", (2) speed fan, Master 200 solid state controls with 1 hour timer, electric ignition, (2) speed fan, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24" cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 6-1/2" legs, 120,000 BTU (Garland), UL, cUL, NSF
Master Series Convection Oven, gas, double-deck, deep depth 43", (2) speed fan, Master 200 solid state controls with 1 hour timer, electric ignition, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24" cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 6-1/2" legs, EnerLogic Technology, 120,000 BTU (Garland), UL, cUL, NSF
Standard Features:
Garland Master Full-Size Standard Depth, prefix MCO-GS or Deep Depth, prefix MCO-GD, gas convection oven. 60,000 BTU (17.6 kW)/cavity, 3/4 HP fan motor with two speed fan control. Electronic spark ignition. Natural or propane gas. Master 200 solid state control with electromechanical timer. Porcelain enameled oven interior with coved corners, Six (6) oven racks and 13-position rack guides. All model interiors are 29" (736mm) W by 24" (610mm) H, depth is 24" (610mm) for standard depth and 28" (711mm) for deep depth. Stainless steel front, sides, top, and legs. 60/40 dependent door design with double pane thermal window in both doors and interior lighting. Models with suffix -20-S are double deck units. Specify voltage if other than 115 volt, 60 Hz, 1 phase. UL, CUL Gas-Fired and NSF Listed.
Standard Features:
- Natural or propane gas
- Patented "Safety Door System"
- Stainless steel front, sides, top, and legs
- Double deck models available, suffix -20-S
- Deep depth models available prefix MCO-GD
- Direct spark ignition with 100% safety shutoff
- Full Length, stainless steel positive door closure
- 2-speed fan control (high & low) w/3/4HP fan motor
- Porcelain enameled oven interior with coved corners
- Total of 60,000 BTU (17.6 kW) loading per oven cavity
- 2 year limited parts & 1 year labor warranty (USA only)
- 1 year limited parts & labor warranty (USA & Canada only)
- 5 year limited door warranty, excluding window (USA & Canada only)
- 2 year limited parts & labor warranty (USA Kindergarden to grade 12 schools only)
- 24" cooking cavity height w/6 chrome plated oven racks on 13-position rack guides
- 60/40 dependent door design with double pane thermal window in both doors and interior lighting
- Master 200 Solid State Control with 150° F (66°C) to 500°F (260°C) temperature range and electromechanical timer
- Extra oven racks
- Direct connect vent
- 50 cycle components
- Stainless steel oven interior
- Back enclosure (stainless steel)
- Swivel casters, (4) w/front brakes
- 3/4" gas flex hose & quick disconnect
- 80,000 BTU (23.4kW) burner package (natural gas)
- Stainless steel open base with rack guides and shelf
- 208 or 240 volts, single phase motor (please specify)
- Stainless steel solid door or doors (specify) - No Charge
- 4 Low profile casters, w/front brakes (double Commercial Ovens only)
- Maximum security package available contact factory for details
Garland Master Full-Size Standard Depth, prefix MCO-GS or Deep Depth, prefix MCO-GD, gas convection oven. 60,000 BTU (17.6 kW)/cavity, 3/4 HP fan motor with two speed fan control. Electronic spark ignition. Natural or propane gas. Master 200 solid state control with electromechanical timer. Porcelain enameled oven interior with coved corners, Six (6) oven racks and 13-position rack guides. All model interiors are 29" (736mm) W by 24" (610mm) H, depth is 24" (610mm) for standard depth and 28" (711mm) for deep depth. Stainless steel front, sides, top, and legs. 60/40 dependent door design with double pane thermal window in both doors and interior lighting. Models with suffix -20-S are double deck units. Specify voltage if other than 115 volt, 60 Hz, 1 phase. UL, CUL Gas-Fired and NSF Listed.
