Frymaster FPH155 15 - 50 lb. Gas Floor Model Full Pot Fryer with CM3.5 Controls - 80,000 BTU
Contact us for details!!!
Frymaster FPH155 Specifications
Total BTU | 80,000 BTU |
---|---|
Control Type | Electonic |
Installation Type | Floor Model |
Series | High Efficiency |
Burner Style | Open Pot |
Construction | Stainless Steel |
Brand | Frymaster |
Energy Efficiency | Energy Star |
Made in | USA |
Certifications | NSF |
Power Type | Gas |
BTU | 80,000 BTU |
Controls | Boil-Out Temperature |
Capacity | 15 - 50 lb. |
Heat | Natural or Propane Gas |
Width (in) | 15.63 |
Height (in) | 45.63 |
Depth (in) | 29.63 |
Weight | 306.00 |

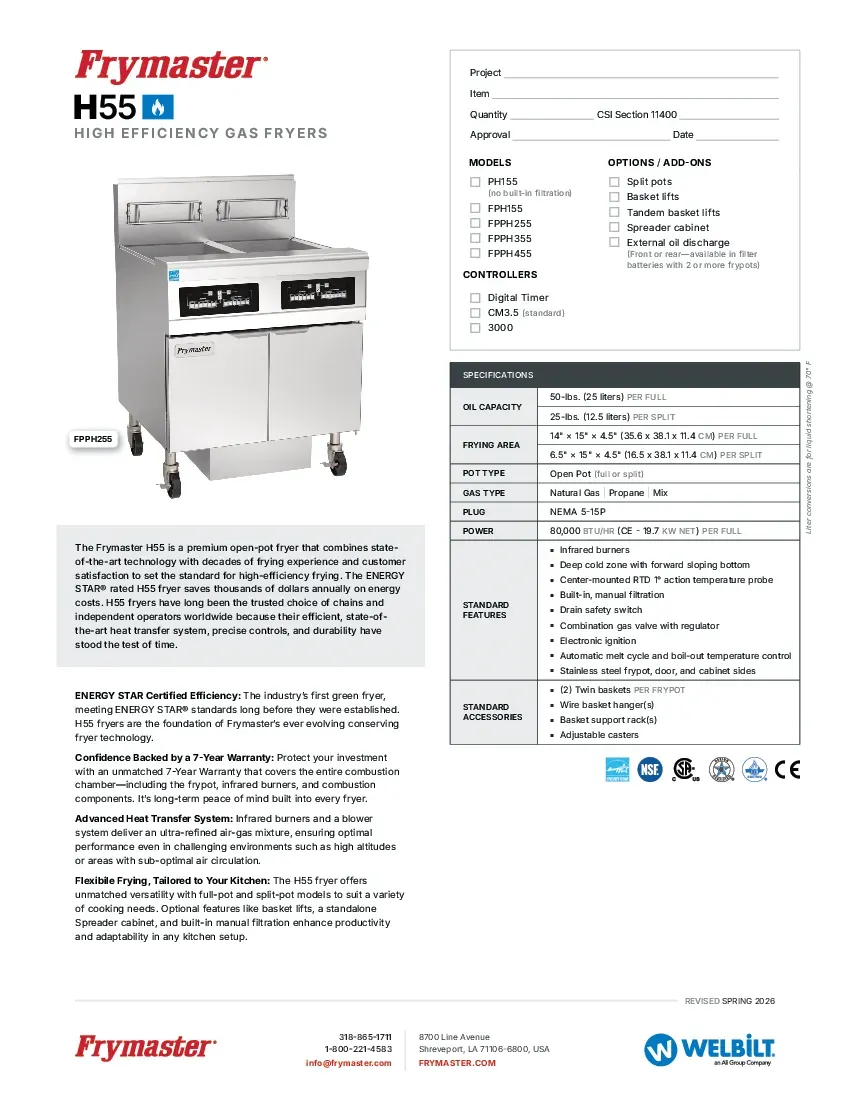

Additional Information on Frymaster FPH155
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Frymaster FPH155 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

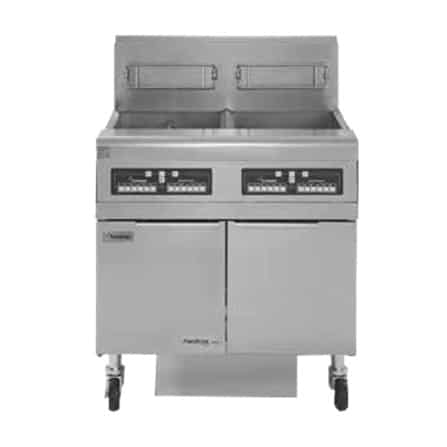

Frymaster FPH155 Description
The Frymaster FPH155 floor model gas fryer delivers high-efficiency frying performance with its 50 lb. frypot and an innovative heat transfer system. The frypot with an easy-to-clean open-pot design has an 80,000 BTU per hour input and a 14"x 15" x 4.5" frying area with two (2) twin baskets. Engineered to meet ENERGY STAR guidelines, this commercial deep fryer helps you save thousands of dollars every year on energy costs with its host of innovative elements!
The stainless steel door and enamel cabinet create a long-lasting fryer that won’t falter in heavy use. The infrared burners achieve excellent heat transfer while the sophisticated blower system will get you through any gas applications and challenging environments.
The CM3.5 controller on this deep fryer brings programmability literally at your fingertips. Cook time is automatically adjusted based on load size while an automatic melt cycle mode and boil-out temperature control are both at your disposal. A deep cold zone catches and removes sediment through the 1.25" IPS full-port ball-type drain valve. Its forward-sloping bottom helps with fully flushing residue from the frypot to avoid oil contamination.
The FPH155 gas fryer uses an electric ignition and a reliably accurate RTD 1 compensating temperature probe mounted on the center. There is a built-in filtration system within the fryer battery so no extra space is taken up.
Filtering takes no longer than four (4) minutes and with a gravity draining system that keeps drain lines open, no residual oil will escape. The stainless steel filter pan slides out so you won’t have trouble retrieving it even if you have uneven floors. With filtration made faster and easier, you can perform it more frequently and in turn, stay on top of your fryer oil health with less effort. This will be especially useful for businesses that cook with trans-fat free oils.
The FPH155 gas fryer is NSF-certified and comes standard with a rack-type basket support and basket hanger. Check out more top-quality commercial deep Commercial Deep Fryers and cooking equipment here at CKitchen!
- Casters
- Rear oil flush
- Built-in filtration
- Electronic ignition
- CM3.5 controller(s)
- Drain safety switch
- Two twin baskets per frypot
- Gas connection - see chart on back
- Stainless steel frypot, door and cabinet
- Open-pot design (split or full) is easy to clean
- Infrared burners ensure state-of-the-art heat transfer
- Automatic melt cycle and boil-out temperature control
- Center-mounted, RTD, 1° compensating temperature probe
- 50-lb (25 L) oil capacity per full frypot; 25-lb. (12 L) per split frypot
- Frying area: 14” x 15” x 4-1/2” per full frypot; 6-1/2” x 15” x 4-3/4 per split frypot
- Deep cold zone with forward-sloping bottom and IPS full-port, ball-type drain valve - 1-1/4” (full frypot; 1” (split frypot)
- 80,000 Btu/hr. input (20,151 kcal) (23.4 kw) (84.4 MJ/hr) per full frypot; 40,000 Btu/hr. input (10,075 kcal) (11.7 kw) (42.2 MJ/hr) per split frypot
- Filter starter kit
- 1/3 H.P. filter motor
- 4 GPM (15 LPM) pump
- 50-lb (25 liter) oil capacity
- Stainless steel crumb catcher
- Filters up to 6 fryers in one battery
- Large 3” (8.0 cm) round drain line allows oil to drain freely
- Filter pan designed on rails to clear floormats for easy cleaning
- Sloped drain pan leaves minimal residue oil behind after filtering
- Filter cycle is complete from start to finish in less than 5 minutes, while other frypots in the system are in use
- Space-saving filter which fits inside fryer cabinet housing two full or qualifying split frypots in two left most cabinets of the battery
- Full basket
- Triplet basket
- Frypot cover(s)
- Sediment tray(s)
- Chicken/Fish tray
- Foam deck basket banger
- Basket lifts (except Australia)
- Digital or SMART4U® 3000 controllers
- Spreader cabinet(s) - must fit within a 6-cabinet fryer battery
- External oil discharge - available on built-in filter batteries with 2 or more frypots - must specify front or rear connection
