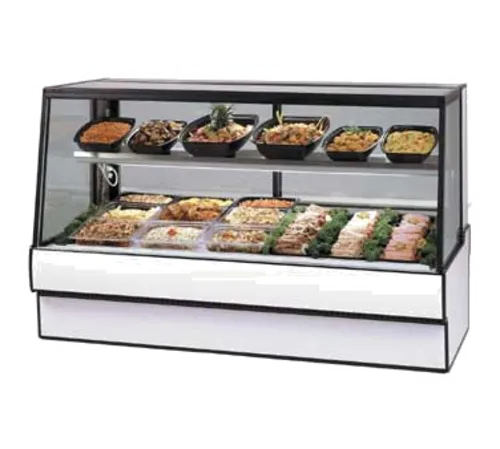

Federal Industries SGR7748CD High Volume Refrigerated Deli Case
MPN#: SGR7748CD
1/5
Free Freight?
Quick Ship
$14,291.37 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
Federal Industries SGR7748CD Specifications
Glass Style | Flat |
---|---|
Service Type | Full Service |
Refrigerant Type | R-513A |
Brand | Federal Industries |
Number of Shelves | 1 |
Made in | USA |
Certifications | cULus |
Door Style | Sliding |
Interior Finish | White |
Compressor Location | Bottom Mounted |
Door Type | Glass sliding rear doors |
Voltage | 120 Volts |
Width (in) | 77 |
Height (in) | 48 |
Depth (in) | 35.31 |
Weight | 860.00 |
Additional Information on Federal Industries SGR7748CD
installationoperationsmanual.pdf installation-operation.pdf federal-industries-sgr7748cd.specsheet.pdf warranty-sheet.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Federal Industries SGR7748CD Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Federal Industries SGR7748CD Description
High Volume Refrigerated Deli Case, 77-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelf, adjustable stainless steel mezzanine shelf, glass sliding rear doors, white interior, tempered glass ends, removable rear wrapping board, choice of laminate, black trim, designed for continuous lineups, 3/4 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant
Standard Features:
- Adjustable Leg Levelers
- Black trim. Others optional
- Designed for continuous line-ups.
- 31" has a swing door, hinged right or left.
- Tempered thermopane glass top, ends, and doors.
- Average case temperature of 38° to 40°F is maintained.
- Removable, scratch-resistant, rustproof white display deck.
- Easily accessible light switch and adjustable temperature control.
- Rear access to the refrigeration system for quick and easy service.
- Removable sliding rear doors, shelf lights,shelf supports,and shelves.
- Tempered thermopane tilt-out front glass for easy cleaning. Front glass is sloped for high visual product display.
- Steel base Deli Display Cases construction with a choice of six standard laminates on base. Other finishes optional.
Refrigeration
- Thermometer.
- Condenser air filter on self-contained units.
- R513a Refrigerant (R449a in Remote Applications)
- Easy clean, rust proof insulated evaporator coil compartment.
- Condensate evaporator provided for a totally self-contained system.
- Oversized coil and low-velocity fan system maintains high humidity and product freshness.
Shelving
- Adjustable white wire shelves. Shelves are adjustable up and down and can also be tilted in three positions. 48" models have three tiers of shelves; 42" models have two tiers of shelves.
Lighting
- LED top light and shelf lights.
Agency Approvals
- DOE 2017 Compliant
- UL Safety and UL Sanitation listed
Optional Features
- Legs
- Cord & Plug
- Special Trim
- Glass Shelves
- Package Shelf
- Reflective Ends
- Special Base Finish
- Rear Wrapping Board
- Reflective Rear Doors
- Top Cutting Board, White
- Light Below Package Shelf
- Front Glass and Rear Door Locks
- Joining Kit for Continuous Line-ups
- Black, Gold, or Chrome Wire Shelves
- Remote Condensing Unit (EEV Included)
- White or Mirrored Interior Ends with Laminated Exterior
- Casters/Cord & Plug including (Self-Contained Models Only)
