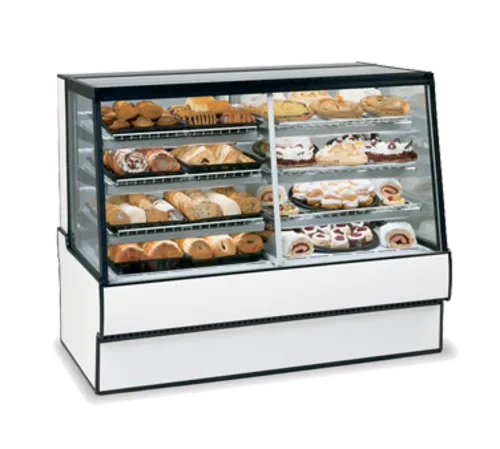

Federal Industries SGR7742DZ High Volume Vertical Dual Zone Bakery Case Refrigerated Left Non-Refrigerated Right
MPN#: SGR7742DZ
1/5
Free Freight?
Quick Ship
$15,239.07 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Calculate
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
Federal Industries SGR7742DZ Specifications
| Tier | 2 |
|---|---|
| Service Type | Dual Service |
| Installation Type | Freestanding |
| Refrigerant Type | R-513A |
| Glass Style | Straight |
| Glass Ends | tempered glass ends |
| Brand | Federal Industries |
| Made in | USA |
| Certifications | cULus |
| Door Style | Sliding |
| Number of Shelves | 2 |
| Door Type | Sliding doors |
| Shelves | adjustable wire shelves |
| Style | Straight Glass |
| Shelving Type | Wire |
| Voltage | 120 Volts |
| Width (in) | 77 |
| Height (in) | 42 |
| Depth (in) | 35.31 |
| Length (in) | 77 |
| Weight | 890.00 |
Additional Information on Federal Industries SGR7742DZ
installationoperationsmanual.pdf
installation-operation.pdf
federal-industries-sgr7742dz.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Federal Industries SGR7742DZ Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Federal Industries SGR7742DZ Description
High Volume Vertical Dual Zone Bakery Case Refrigerated Left Non-Refrigerated Right, 77-1/8"W x 35-5/16"D x 42”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (2) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, choice of laminate with black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliantStandard Features:
- Black trim
- Single base design.
- Adjustable Leg Levelers
- White scratch-resistant display deck.
- Tempered thermopane glass top, ends, and doors.
- Left side refrigerated, right side non-refrigerated from customer view.
- Removable sliding rear doors, shelf lights, shelf supports, and shelves.
- Steel base construction with a choice of six standard laminates on base. Other finishes optional.
- Tempered thermopane tilt-out front glass for easy cleaning. Front glass is sloped for high visual product display.
Added Features for Refrigerated Side
- Thermometer.
- Adjustable temperature control.
- Condenser air filter on self-contained units.
- R513a Refrigerant (R449a in Remote Applications)
- Average case temperature of 38° to 40° is maintained.
- Easy clean, rustproof insulated evaporator coil compartment.
- Rear access of the refrigeration system for quick and easy service.
- Condensate evaporator provided for a totally self-contained system.
- Over-sized coil and low-velocity fan system maintains high humidity and product freshness.
Shelving
- Adjustable white wire shelves. Shelves are adjustable up and down and can also be tilted in three positions. 48" models have three tiers of shelves; 42" models have two tiers of shelves.
Lighting
- LED top light and shelf lights.
Agency Approvals
- DOE 2017 Compliant
- UL Safety and UL Sanitation listed
Optional Accessories
- Legs
- Glass Shelves
- Package Shelf
- Reflective Ends
- Special Base Finish
- Remote Refrigeration
- Rear Wrapping Board
- Reflective Rear Doors
- With Laminated Exterior
- Top Cutting Board, White
- Light Below Package Shelf
- White or Mirrored Interior Ends
- Front Glass and Rear Door Locks
- Black, Gold, or Chrome Wire Shelves
- Cord & Plug (Self-Contained Models Only) (NEMA 5-15P)
- Casters/Cord & Plug Included (Self-Contained Models Only)
