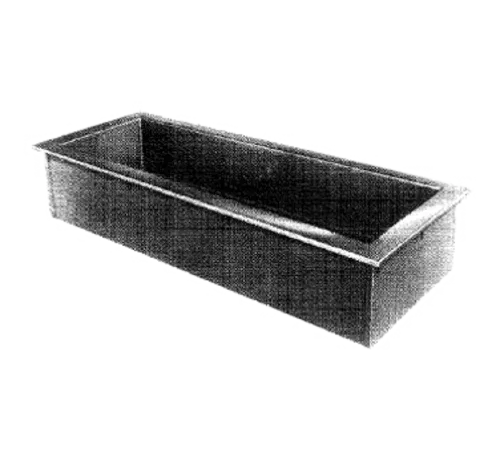

Delfield N8068N Narrow Drop-In Iced Cold Pan
MPN#: N8068N
Free Freight?
Quick Ship
$2,040.50 /
Contact us for details
Calculate
Product Protection
Starting at
Delfield N8068N Specifications
| Number of Pans | 3 |
|---|---|
| Construction | Stainless and Galvanized Steel |
| Brand | Delfield |
| Certifications | NSF |
| Size | 3-pans |
| Compressor Location | Non-Refrigerated |
| Style | Narrow |
| Voltage | No Preference |
| Width (in) | 67.5 |
| Height (in) | 10.75 |
| Depth (in) | 18 |
| Weight | 120 |
Additional Information on Delfield N8068N
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield N8068N Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Delfield N8068N Description
Drop-In Narrow Ice Cooled Cold Pan, 67-1/2" W x 18" D, (3) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (66-1/2" x 17" cutout required), NSF
Narrow Drop-In Ice-Cooled Cold Food Well, 67-1/2" W x 18" D, (3) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (66-1/2" x 17" cutout required), NSF
Standard Features:
- NSF-2 certified
- Custom sizes available
- Standard 1” plastic drain
- Galvanized exterior body
- 2 BF stainless steel interior liner
- Sectional removable perforated bottoms
- 20-gauge stainless steel top construction
- One year parts and 90 day labor standard warranty
- Non-marring press fit top gasket is supplied standard
- Adapter bars are provided standard for 12” x 20” openings
- High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit
Options & Accessories:
- Custom sizes and styles
- Single or double service flip-up sneeze guards
Specifications:
Top is one piece 20-gauge stainless steel. Interior liner is 22-gauge stainless steel with integral V-stamped pan rest and is creased to 1.00” (2.54 cm) diameter drain. Unit has a sectional, removable perforated stainless steel false bottom and is provided with adapter bars to allow placement of 12” x 20” (30.5 cm x 50.8 cm) pans. Unit is supplied with 1” (2.54 cm) plastic drain to be installed by customer. Exterior housing is 24-gauge galvanized steel. Unit is insulated with high density closed cell environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.
