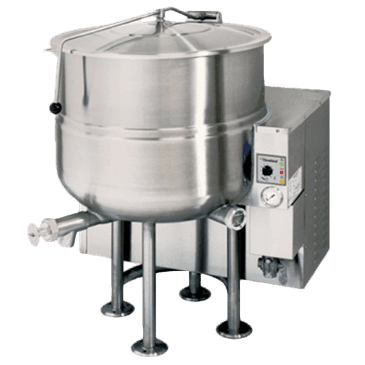

Cleveland Range KGL40 Kettle
MPN#: KGL40
Free Freight?
Quick Ship
$25,839.00 /
Contact us for details
Product Protection
Starting at
- Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
- Please see specification sheet for installation clearance requirements
Cleveland Range KGL40 Specifications
BTU | 140,000 BTU |
---|---|
Installation Type | Floor Model |
Kettle Jacket | Partial |
Type | Single Kettle |
Brand | Cleveland Range |
Kettle Material | Stainless Steel |
Certifications | CE |
Power Type | Gas |
Controls | Bottom Mount |
Capacity | 40 Gallon |
Style | Stationary |
Width (in) | 35.13 |
Height (in) | 40.50 |
Depth (in) | 370 |
Weight | 35.13 |
Additional Information on Cleveland Range KGL40
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Cleveland Range KGL40 Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
Cleveland Range KGL40 Description
Kettle, gas, stationary, 40-gallon capacity, 2/3 steam jacket, 316 stainless steel interior, self-contained, floor mounted control console supports, electronic ignition, 304 stainless steel finish, faucet mounting bracket, flanged feet, 2" tangent draw-off with strainer, spring-assisted cover, 50 psi rating, 140,000 BTU, CEStandard Features:
- Faucet Mounting Bracket
- Insulated Heat Exchanger
- Automatic Ignition System
- Standard Gas Kettle for natural gas operation
- 50 PSI Steam Jacket Rating and Safety valve
- Front mounted combination Pressure/Vacuum Gauge
- 2˝ diameter Tangent Draw-Off Valve with Drain Strainer
- Typical approvals include AGA, CSA, CE, NSF and ASME
- Type 304 Stainless Steel with #4 finish on kettle and supports
- Support Legs with level adjustable feet, flanged for floor bolting
- Spring-assisted, hinged, rotatable, domed Stainless Steel Cover
- High-efficiency Power Burner Heating System (62% to 65% efficiency)
- Standard voltage is 115 volts, 60 Hz, single-phase, supplied with cord and plug
- Solid State Controls, for Temperature and Low Water Safety, in a plug-in Control Module
- Steam jacket permanently filled with treated, distilled water. Venting and/or refilling not required
- Fast Heat-up and Recovery Time, 140M BTU’s on 40 gallon models, 190M BTU’s on 60 gallon and larger
- Control Panel includes: Warning, Power “on/off” Switch, ± 1°C variance (ideal for simmering), L.E.D. Indicators for Heat Cycle and Low Water and Precise, consistent temperature control: less than
Options & Accessories
- Drain Strainers
- Measuring Strip
- Heat Deflector Shield
- Correctional Package
- Automatic Water Meter
- Option for Propane Gas operation
- Cooking Baskets and Tri-Basket Supports
- Hot and Cold Water Faucet with Swing Spout
- 3" diameter Tangent Draw-off Valve with Drain Strainer
- Type 316 Stainless Steel Kettle Liner for high acid food products
- Kettle Accessory Kit (KAK) includes: 24 oz. Ladle, Clean-up Brush, Draw-off Brush, 36” Kettle Whip, 36” Kettle Brush and 36” Kettle Paddle
