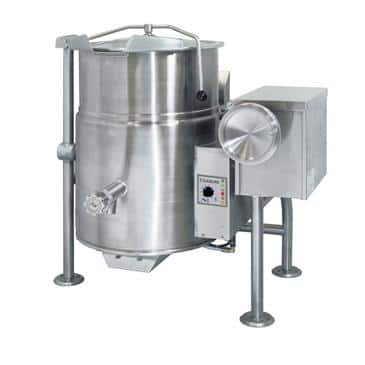

Cleveland Range KGL25T Kettle
MPN#: KGL25T
Free Freight?
Quick Ship
$35,424.40 /
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
- Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
Cleveland Range KGL25T Specifications
Installation Type | Floor Model |
---|---|
Kettle Jacket | Partial |
Type | Single Kettle |
Brand | Cleveland Range |
Kettle Material | Stainless Steel |
Certifications | CE |
Power Type | Gas |
BTU | 90,000 BTU |
Capacity | 25 Gallon |
Style | Tilting |
Width (in) | 420 |
Height (in) | 42.63 |
Depth (in) | 410 |
Weight | 420 |
Additional Information on Cleveland Range KGL25T
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Cleveland Range KGL25T Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
Cleveland Range KGL25T Description
Kettle, gas, manual tilting, 25-gallon capacity, 2/3 steam jacket design, electronic spark ignition, solid-state control panel, floor mounted control console supports, 304 stainless steel construction with 316 series stainless steel liner, flanged feet, 50 psi rating, cover & draw-off optional, 90,000 BTU, CEKettle, gas, tilting, 25-gallon capacity, 2/3 steam jacket design, floor mounted control console supports, stainless steel exterior finish, standard with flanged feet, 50 psi rating, electronic spark ignition, cover & draw-off optional, 90,000 BTUStandard Features:
- Standard for natural gas operation.
- Supplied with Gas Pressure Regulator.
- Automatic Electronic Spark Ignition System.
- Supplied with cord and plug for 115 volt controls.
- "Splash-Proof" rear-mounted pressure/vacuum gauge.
- Typical approvals include AGA, CSA, CE, NSF and ASME.
- Support Legs with level adjustable feet, flanged for floor bolting.
- Kettle and all exterior surfaces are a 304 Stainless Steel with a #4 finish.
- Tilt Mechanism of roller bearings and case hardened self-locking worm and segment gear.
- 50 psi Steam Jacket Rating. Safety Valve mounted toward rear of kettle to avoid tampering.
- 50 psi Steam Jacket Rating. Safety Valve mounted toward rear of kettle to avoid tampering.
- Steam jacket permanently filled with treated distilled water; venting and/or refilling is not required.
- Self-contained gas tilting kettle is easily installed, only needs a gas connection and a 115 volt outlet.
- Twenty-five gallon model with 90,000 BTU firing rate and 58,500 BTU directly applied to the product.
- Energy-efficient (65%), high-performance gas-fired heating system for fast heat-up and recovery time.
- Large pouring lip for easier, faster, pouring. Heavy-duty Rolled Rim design provides strong reinforcement, prevents damages from abuse.
- Precise, consistent temperature control, less than 1ºC temperature variance (ideal for simmering). Operating temperature range from 145ºF-260ºF (63ºC-127ºC).
- "Splash-Proof" Solid-State Control Panel for temperature, Low Water Safety, and Power "On/Off" Switch. Accurate L.E.D. Indicators for Heat Cycle and Low Water Warning.
- Lift Off Cover (CL)
- Food Strainer (FS)
- Kettle Markings (KM)
- Measuring Strip (MS)
- Correctional Packages
- Propane Gas Option (LP)
- Spring Assist Cover (CHS)
- Basket Strainer (BS and TBS)
- 316 Stainless Steel Liner (316)
- 2" Tangent Draw-Off Valve (TD2)
- Hot and cold water faucet (DPK), or cold water (SPK). Requires faucet bracket (FBKT)
- Kettle Accessory Kit (KAK) includes:
- 36˝ Kettle Brush
- 24 oz. Ladle (KL)
- Clean-up Brush (CB)
- 36˝ Kettle Whip (KW)
- Draw-Off Brush (DB)
- 36˝ Kettle Paddle (KP)
