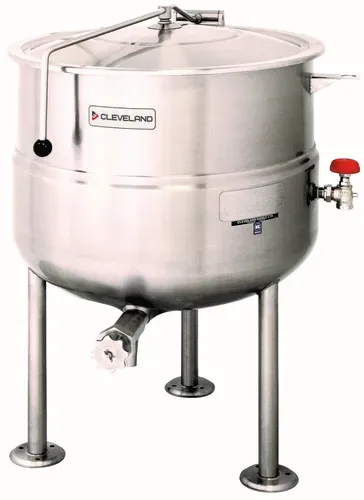

Cleveland Range KDL100 Tri-Leg Base 2/3 Jacketed Stationary Direct Steam Kettle - 100 Gallon Capacity
MPN#: KDL100
Free Freight?
Quick Ship
$25,807.10 /
Contact us for details
Calculate
Product Protection
Starting at
- Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
- Please see specification sheet for installation clearance requirements
Cleveland Range KDL100 Specifications
| Installation Type | Floor Model |
|---|---|
| Kettle Jacket | Partial |
| Type | Single Kettle |
| Construction | Stainless Steel |
| Power Type | Steam |
| Brand | Cleveland Range |
| Cover | 2/3 Jacketed |
| Kettle Material | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Base | Tri-Leg |
| Capacity | 100 Gallon |
| Style | Stationary |
| Weight | 360.00 |
Additional Information on Cleveland Range KDL100
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Cleveland Range KDL100 Description
Kettle, direct steam, 100-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, standard with flanged feet, steam control valve, 2" tangent draw-off, spring assist cover, 50 psi rating
Standard Features:
- Faucet Mounting Bracket
- Steam Control Inlet Valve
- Typical approvals include NSF and ASME
- Condensate Drain Valve with insulated handle
- 2" diameter Tangent Draw-off Valve with Drain Strainer
- Spring-assisted Cover: domed, hinged, one-piece rotatable (not available on KDL-250)
- Type 304 Stainless Steel Direct Steam Kettle construction, #4 finish on kettle and supports
- For Pedestal Models: Pedestal support of Type 304 Stainless Steel with .75" thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing
Options & Accessories
-
Lift-off Covers
-
Drain Strainers
-
Gallon Markings
-
Measuring Strips
-
Water Meter Stand
-
Correctional Packages
-
Insulated Outer Jacket
-
Automatic Water Meter
-
Swing Funnels for drain
-
3" diameter Butterfly Valve
-
Pre-Rinse Spray Head and Hose
-
Cooking Baskets and Tri-Basket Supports
-
3" diameter Tangent Draw-Off Valve w/ Strainer
-
Hot and cold or cold only Kettle Filler with 60˝ Hose
-
100 psi Pressure Option (PO) (for 125 gallons and larger)
-
Type 316 Stainless Steel Kettle Liner for high acid food products
-
Pressure Reducing Valve for regulating incoming steam pressure of over 45 psi
-
Chrome plated Steam Control Kit includes: Steam Traps, Condensate Strainers, Check Valves, nipples and fittings, factory assembled and mounted on kettle
