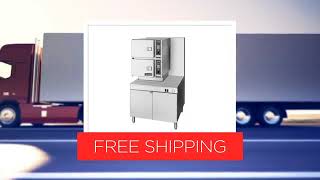

Cleveland Range 36CGM300 Pressureless Convection Steamer
MPN#: 36CGM300
Free Freight?
Quick Ship
$42,828.45 /
Contact us for details
Calculate
Product Protection
Starting at
- 3-Year Convection Steamer Door Warranty
- Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
- Please see specification sheet for installation clearance requirements
Cleveland Range 36CGM300 Specifications
| Pan Capacity | 3 Pans |
|---|---|
| Steam Source | Boiler |
| Type | Convection Steamers |
| Boiler | Yes |
| Brand | Cleveland Range |
| Number of Compartments | 2 |
| Power Type | Gas |
| BTU | 300,000 BTU |
| Interior Finish | Stainless Steel |
| Controls | Manual |
| Heat | Gas |
| Style | Floor |
| Voltage | 120 Volts |
| Wattage | 1 Kilowatts |
| Width (in) | 35.43 |
| Height (in) | 62 |
| Depth (in) | 37 |
| Weight | 755.00 |
Additional Information on Cleveland Range 36CGM300
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Cleveland Range 36CGM300 Description
Pressureless Convection Steamer, gas, 36", (2) compartments, (3) 12 x 20 x 2-1/2" pans/per compartment capacity, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, left-hand hinged door, controls on right, instant steam standby mode, auto drain, steam shut-off switch, stainless steel construction, FSS stainless steel base frame, 300,000 BTU
Pressureless Convection Steamer, gas, 36", (2) compartments, (3) 12 x 20 x 2-1/2" pans/per compartment capacity, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, left-hand hinged door, controls on right, instant steam standby mode, auto drain, steam shut-off switch, stainless steel construction, FSS stainless steel base frame, 300,000 BTU
Standard Features:
- Stainless Steel Base Frame (FSS)
- Modular Cabinet Base with Hinged Door.
- Separate Main Power Switch for “On/Off”
- All Controls are serviceable from the front.
- Gas Pressure Regulator and Control Valve.
- Solid State Controls operate water level and safety functions.
- Standard Voltage for Controls: 115 volts, 60 Hz, single phase.
- Cooking Capacity for up to six 12˝ x 20˝ x 21 ⁄2˝ deep Cafeteria Pans.
- Automatic Water Level Control System with Low Water Power Cut-off Circuit.
- Left Hand Door Hinging: Compartment Doors hinged left, controls on the right.
- NSF Certified 6˝ Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.
- Durable 14 Gauge Stainless Steel Construction: For Compartment Door and Steam Cooking Cavity.
- High Efficiency Gas Steam Generator, Electronic Spark Ignition and Automatic Water Fill on start up.
- Pressureless cooking with forced convection steam, permitting doors to be opened while cooking continues.
- Instant Steam Standby Mode: Holds generator at steaming temperature. Allows unit to start cooking instantly.
- Automatic Generator Drain at shutdown: Contains a “Water Jet” Spray Rinse Cleaning Cycle to keep drain clear.
- Steam generator equipped with High Limit Pressure Safety Switch, 15 psi Safety Valve, and Steam Generator Pressure Gauge.
- Each compartment is equipped with a 60 minute mechanical timer, separate bypass switch for constant steaming and a cold water condenser for superior cooking results.
- Exclusive “Cool to the Touch” Compartment Door Design: Free floating inner door with reversible door gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism provides greater reliability.
- Secondary Low Water Cut-Off, factory installed (CALG) (Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI. MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY, Wash. DC)
- Exclusive Steam Cooking Distribution System: The exclusive Convection Jets produce a high velocity convection steam without fans. Curved Corner design in cooking compartment distributes heat evenly and is easy to keep clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks for easy cleaning.
Options & Accessories:
- Water Filters
- Correctional Packages
- Boiler Descaling Pump Kit (107142)
- Quick Disconnect for gas line (QDC)
- Cafeteria pans in depths of 1˝, 2 1⁄2˝, 4˝ and 6˝
- Power Take Off Kit (GPTO), Kettle Interconnecting Kit (IMK)
Cleveland’s “Best-in Class” product line offers the industry’s overall best “Standard Warranty Program” featuring:
- Free Performance Start Up with Water Quality Check
- Free Water Quality Check included with start up
- 1-Year Door Gaskets and Adjustments included
- 3, 5, 6 pan and 10 pan compartment steamers, non-part adjustments
- 2-Year K-12 School Warranty included
- 3-Year warranty included with purchase of Filter
- 2-Year Warranty with Filter Purchase from Cleveland
- Full 2-years parts and labor coverage
- 5-Year Prorated for Pressure Boilers and Steam Generators
- 100% covered for first 2 years with filter purchase
Specifications:
Two Compartments, CLEVELAND Convection Steamer, Model 36-CGM- _____, Gas-fired Steam Generator, _____ M BTU. Solid State Controls operate timing, water level and safety functions. Steam Generator with Automatic Water Fill on start-up, Automatic Blowdown with additional Manual Drain Valve and Electronic Spark Ignition. For each cooking compartment: 60 minute Mechanical Timer, Manual Operation Mode and Cold Water Condenser. Type 304 Stainless Steel cooking compartment.
