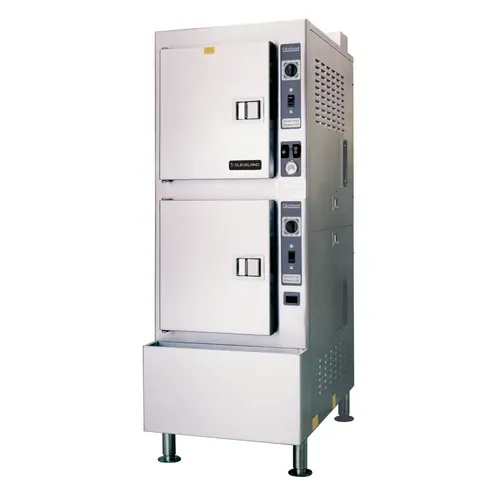

Cleveland Range 24CDP10 Steamcraft® Ultra 10 D Pressureless Steamer

MPN#: 24CDP10
Cleveland Range 24CDP10 Steamcraft® Ultra 10 D Pressureless Steamer

Call us for price

1-800-555-0666
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Cleveland Range 24CDP10 Specifications

Pan Capacity10 Pans
TypeConvection Steamers
Steam SourceDirect Steam
Power TypeSteam
BoilerYes
BrandCleveland Range
Number of Compartments2
ControlsElectro-mechanical
HeatDirect Steam
StyleFloor
Voltage115 Volts
Wattage2 Kilowatts
Width (in)24
Height (in)65.44
Depth (in)35.14
Weight528.00

Additional Information on Cleveland Range 24CDP10

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Cleveland Range 24CDP10 Description

Steamcraft® Ultra 10 D Pressureless Steamer, direct steam, 2 compartments, (5) 12 x 20 x 2-1/2 pans/compartment, electro-mechanical 60 minute timers, stainless steel construction, 6" stainless steel legs, 20-50 psi incoming steam pressure, requires CLEAN steam, 51 watts, 115v/60/1-ph (contact factory for price)

Standard Features:
  • Single Cold water Connection.
  • Separate Switch for Power “on/off.”
  • Moisture Separator for incoming steam.
  • Compartment Door Steam Shut Off Switch (SCS)
  • Standard voltage for controls: 115 volts, 60 Hz. single phase.
  • Cooking Capacity for up to ten 12˝ x 20˝ x 2 1⁄2˝ deep Cafeteria Pans.
  • Left Hand Door Hinging: Compartment Doors hinged left, control on the right.
  • Clean non-toxic, uncontaminated steam is required for all “Direct Steam” steamers.
  • Pressure reducing Valve or 20-50 psi steam supply pressure, based on a 3⁄4˝ line size.
  • Durable 14 Gauge Stainless Steel Construction: For compartment door, cavity and front.
  • Condensate Drip Trough: Provided under lower compartment door to collect condensate.
  • NSF Certified 6˝ Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.
  • One 60 Minute Electro-Mechanical Timer and Switch for manual operation. Audible signal for cooking time completion.
  • Exclusive “Cool to the Touch” Compartment Door Design: Free floating inner door with reversible door gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability.
  • Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Coved Corner design in cooking compartment distributes heat evenly, and is easy to keep clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks.
Options & Accessories
  • Correctional Packages
  • Cafeteria Pans in depths of 1˝, 2 1⁄2˝, 4˝ and 6˝
  • Right Hand Door Hinging, Controls on the Right
  • Electronic Timer with Compensating Load Feature
  • Second Pressure Reducing Valve for 50-120 psi steam pressure.

Options for Cleveland Range 24CDP10

New Construction or Replacement
Pans & covers
Correctional packages
K-12 warranty
Additional installation kits and services
Extended warranty
Door hinging
What is included
  • Warranty: 1-year parts & labor warranty, standard
  • Performance start-up: Performance start-up included at customer request after equipment is installed (Free Water Quality Check included) (contact Cleveland Sales Representative for details)
  • Generator warranty: 5 year pro-rated parts warranty on boilers & steam generators
  • Door warranty: 3 year Convection Steamer Door Warranty, standard
