Champion 86 PRO Pro Series

Name: Champion 86 PRO Pro Series
Brand: Champion
SKU: 86 PRO
Price: 78586.0 USD
Availability: LimitedAvailability

MPN#: 86 PRO

Champion 86 PRO Pro Series

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

Energy Star ?

Products with Energy Star certification are designed to be more energy-efficient to maximize savings.

$78,586.00 /

Sign-In here for more information

$68,430.85 /

or enjoy small payments $1,470.58/mo.

Calculate

Product Protection

Starting at

Reward Points

You will earn 78586

$$$ View Champion Promos

Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

View all Champion Conveyor Type Dishwashers

Champion 86 PRO Specifications

Brand	Champion
Energy Efficiency	Energy Star
Made in	USA
Certifications	cULus
Width (in)	102
Height (in)	65.25
Depth (in)	32.5

Additional Information on Champion 86 PRO

steamspecsheet.pdf

installation-manual.pdf

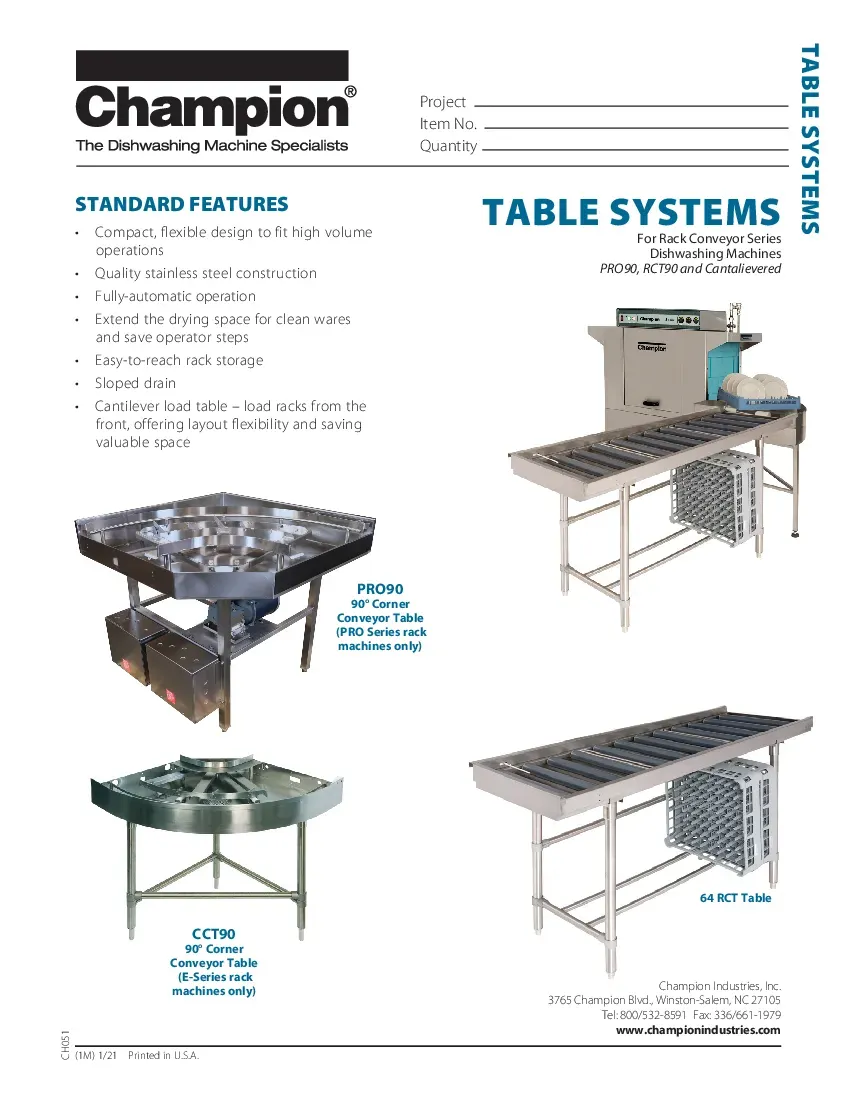

table-systems.pdf

replacement-parts.pdf

owner-s-manual.pdf

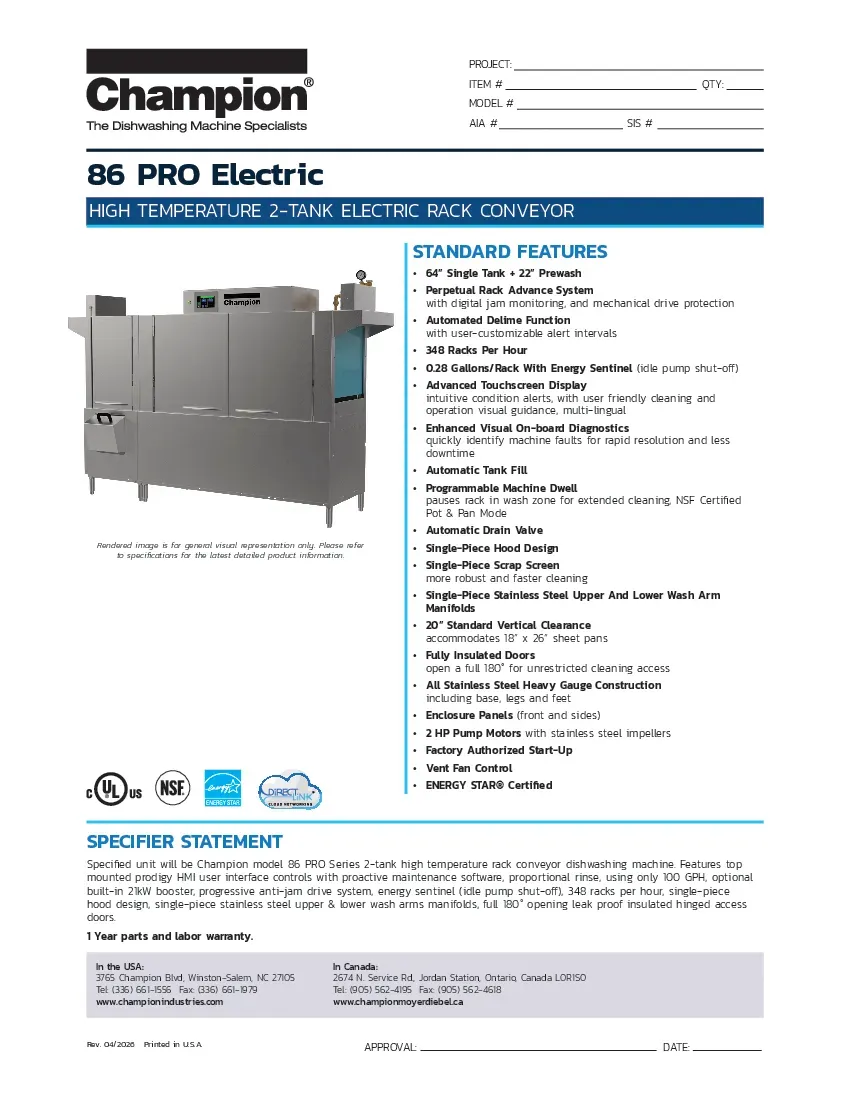

champion-86-pro.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Champion 86 PRO Certifications

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Champion 86 PRO Description

Pro Series, 64”W two-tank rack conveyor dishwasher, with 22” pre-wash, proportional rinse, progressive anti-jam drive system, top mounted Prodigy series HMI user interface, proactive maintenance software, (100) gallons per hour with energy sentinel (idle pump shut-off), (348) racks per hour, single-piece hood design, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket & dual-piece scrap screens, 20” standard vertical clearance, accommodates 18” x 26” sheet pans, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof ball valve drains, lower front & side enclosure panels, auto delime function, stainless steel heavy gauge construction including base & legs, electric tank heat,1 HP pre-wash, 2 HP wash & power rinse pumps, vent fan control, stainless steel rear manifolds, NSF, cULus, ENERGY STAR®, Made in USA

Pro Series, 64”W two-tank rack Conveyor Type Dishwasher, with 22” pre-wash, proportional rinse, progressive anti-jam drive system, top mounted Prodigy series HMI user interface, proactive maintenance software, (100) gallons per hour with energy sentinel (idle pump shut-off), (348) racks per hour, single-piece hood design, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket & dual-piece scrap screens, 20” standard vertical clearance, accommodates 18” x 26” sheet pans, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof ball valve drains, lower front & side enclosure panels, auto delime function, stainless steel heavy gauge construction including base & legs, electric tank heat,1 HP pre-wash, 2 HP wash & power rinse pumps, vent fan control, stainless steel rear manifolds, NSF, cULus, Made in USA, Energy Star®

Options for Champion 86 PRO

Ventilation options

Extended stainless steel vent cowl with 7" stack & locking damper (set) +$1,838.33 Stainless steel vent cowl with 7" stack & locking damper (set) +$1,691.03 Custom stainless steel vent cowl with 7" stack to match non-Champion, machine centerline (set) +$1,881.81 Custom Extended stainless steel vent cowl with 7" stack to match non-Champion, machine centerline (set) +$2,011.59

Feet option

Flanged feet +$180.39

Splash shield

Splash shield (set) +$421.14

Automatic loading/unloading options

Cantilever side loader, 24", no hood +$6,343.00 Cantilever side loader, 30", no hood +$9,818.51

Detergent & Rinse option

Detergent and Rise Pumps +$1,316.62

Tank heat options

Electric tank heat with heat recovery +$5,173.03 Electric tank heat, standard Stainless steel steam coil tank heat +$2,620.26

Water Conditioner

Champion ION Scale Prevention System +$1,745.54

Additional racks

Flat Bottom Dishrack, 20" x 20", additional +$96.69 Peg Dishrack, 20" x 20", additional +$96.69

Hood options

20" High hood vertical clearance (standard) 24" Vertical clearance through machine +$2,249.09

Connectivity

Direct Link: Features remote access service & performance diagnostics by the Champion factory technical support team +$2,005.10 Direct Link Plus: Features remote access service & performance diagnostics by the Champion factory technical support team. Includes cloud storage & online user access. Temperature & performance data is stored via the cloud and is accessed through an online portal. Initial term for this upgrade is three years +$2,920.05

Clean dish roller table options

Roller Conveyor Table, 64", stationary, unload end, includes: whisker style table limit switch +$5,376.79 Roller Conveyor Table, 84", stationary, unload end, includes: whisker style table limit switch +$7,021.10 Roller Conveyor Table, 144", stationary, unload end, includes: whisker style table limit switch +$12,461.48

Machine voltage

208v/60/3-ph 240v/60/3-ph 480v/60/3-ph Export voltage (consult factory for price)

Direction of operation

Left-to-right operation Right-to-left operation

Back panel

Stainless steel rear enclosure panels, priced per foot of machine (consult factory for price)

Limit switch options (must choose one)

Table Limit Switch (Whisker Style) Table limit switch, includes: 12 ft. pre-wired cord standard (unmounted) (recommended on all conveyor models) +$487.97 Table Limit Switch (Buttom Style) Table limit switch, includes: 12 ft. pre-wired cord standard (unmounted) (recommended on all conveyor models) +$487.97

Water related options

Water pressure regulating valve (unmounted) +$310.82 Drain Water Tempering Kit (Unmounted) +$1,363.34 Shock Arrestor (unmounted) +$123.94

Correctional package

Low to Medium Security Package: Includes stainless steel locking grid over control cabinet, tamper proof screws, hinged lid on PW basket, welded curtain hooks, lockable doors (Locks by others), mesh cover on pressure gauge (consult factory for price) High Security Package: Includes stainless steel locking grid over control cabinet, tamper proof screws, hinged lid on PW basket, welded curtain hooks, lockable doors (Locks by others), mesh cover on pressure gauge, stainless steel grid underneath, metallic lined flexible conduit (consult factory for price)

Extended warranty

2nd year limited parts & labor warranty +$3,092.06 End of Warranty Tune-Up: Initial, then follow up resolution visit, during normal 8-5 business hours, at the end of the normal warranty period. Thorough diagnosis of all machine components, with proactive replacement of specific parts, including wearable parts (consult factory for wear parts). Full parts & labor coverage. If customer is beyond 60 miles from Champion authorized service agent, consult factory. +$3,861.47

What is included

Warranty: 1 year parts & labor warranty, standard
Note: Complimentary factory authorized performance test included, upon equipment start-up. Consult local Champion sales representative for coordination of the start-up. If customer is beyond 60 miles from Champion authorized service agent, consult factory.
Electrical connection: Two-point electrical connection, standard (1a Machine & Tank heat, 1b Booster)
Water Treatment Options:: Note: For water of 3-grains of hardness or more, Champion recommends adding a water treatment device.
