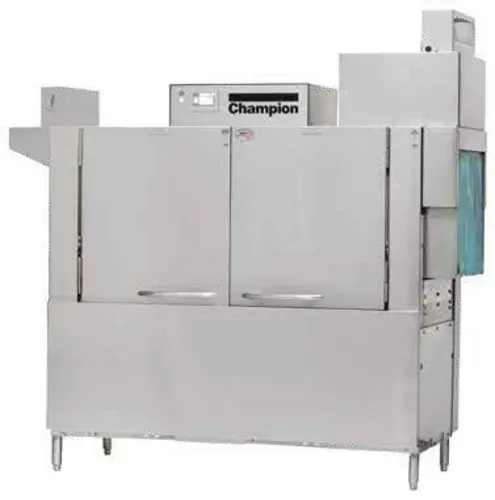

Champion 64 PRO Pro Series

Pro Series, 64”W two-tank rack conveyor dishwasher, proportional rinse, progressive anti-jam drive system, top mounted Prodigy series HMI user interface, proactive maintenance software, (100) gallons per hour with energy sentinel (idle pump shut-off), (348) racks per hour, single-piece hood design, single-piece stainless steel upper & lower wash arm manifolds, internal removable scrap basket & dual-piece scrap screens, 20” standard vertical clearance, accommodates 18” x 26” sheet pans, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, automatic delime function, leak-proof ball valve drains, lower front & side enclosure panels, stainless steel heavy gauge construction including base & legs, electric tank heat, 2 HP wash & power rinse pumps, vent fan control, stainless steel rear manifolds, NSF, cULus, Made In USA

For establishments that need to wash a truly large number of dishes on a daily basis a reliable rack Conveyor Type Dishwasher like the 64 PRO Pro Series from Champion is the best solution. This unit is designed to handle up to 344 racks per hour while only using water at a rate of 100 GPH which makes it ENERGY STAR® qualified.

Users can easily manage and monitor the settings via the top-mounted Prodigy HMI display. Visual guidance is provided by a user-friendly touch interface for operation and cleaning. To keep the unit running optimally the control system will let users know when proactive maintenance tasks are needed and if the unit runs into an error the self-diagnostics will quickly identify the issue and recommend the necessary repairs.

To keep users safe door safety switches come standard. The doors open to 180° providing easy access. The washer is constructed from heavy-gauge stainless steel to stand up to the rigors of daily use.

Racks move through the system through a perpetual rack advance system featuring an intuitive jam alert to prevent damage. 18” x 26” sheet pans fit without any issue thanks to the unit’s 20” of vertical clearance. Racks are positioned automatically into the optimal wash zone inside the wash chamber for the best results.

The electrically-heated wash and power rinse tanks have 17 gallons of capacity and an electric booster maintains the temperature of rinse water to provide ideal sanitation. To efficiently use rinse water, this unit uses a proportional rinse system that relies on digital pattern cloning to deliver optimal coverage.

To maintain high pressure for the best results this washer uses a 2 HP pump motor with a stainless steel impeller. To prevent the pump from running unnecessarily, this unit has the energy sentinel system.

This dishwashing machine is offered in a variety of voltage configurations to meet the requirements of your establishment.

• Vent fan control
• Made in America
• 344 racks per hour
• Single-piece hood design
• NEW Auto Delime Function
• ENERGY STAR® Qualified
• Factory Authorized Start-up
• Automatic drain valve Exclusive!
• Enclosure panels (front and sides)
• 2 HP pump motors, with stainless steel impeller
• 100 GPH with energy sentinel (idle pump shut-off)
• Full 180° opening leak proof insulated hinged access doors
• Single-piece stainless steel upper and lower wash arm manifolds
• Two point electrical connection, machine and built-in booster heater
• Progressive drive system, with intuitive jam alert, and drive protection
• Stainless steel heavy gauge construction including base, legs and feet
• 20" standard vertical clearance which accommodates 18" x 26" sheet pans
• Programmable machine dwell with automatic rack alignment into the optimal wash zone
• Proportional rinse, delivering unmatched total ware coverage, utilizing digital pattern cloning, stainless steel nozzles
• Proactive maintenance interface, self-diagnostics, problem recognition, with repair recommendation, from HMI touch screen
• Prodigy series HMI display, intuitive condition alerts, with user friendly cleaning and operation visual guidance, multi-lingual, touch control

• Booster Heaters (completely inter-plumbed, controls are inter-wired)
  • Electric: 40-70°F rise (built-in only)
  • Steam: 40°F or 70°F rise (see spec sheet)
• Cantilever sideloader for 90° operation
  • 24" cantilever sideloader
  • 30" cantilever sideloader
• Button style
• Whisker style
• Splash shields
• Extended Vent Cowls
• Racks: Peg (specify qty)
• Racks: Flat (specify qty)
• Racks: Sheet pan (specify qty)
• Water hammer kit (unmounted)
• Drain tempering kit (unmounted)
• 48" Blower-dryer – steam or electric
• Tank heat: choice of steam coil or electric
• ION scale prevention device (unmounted)

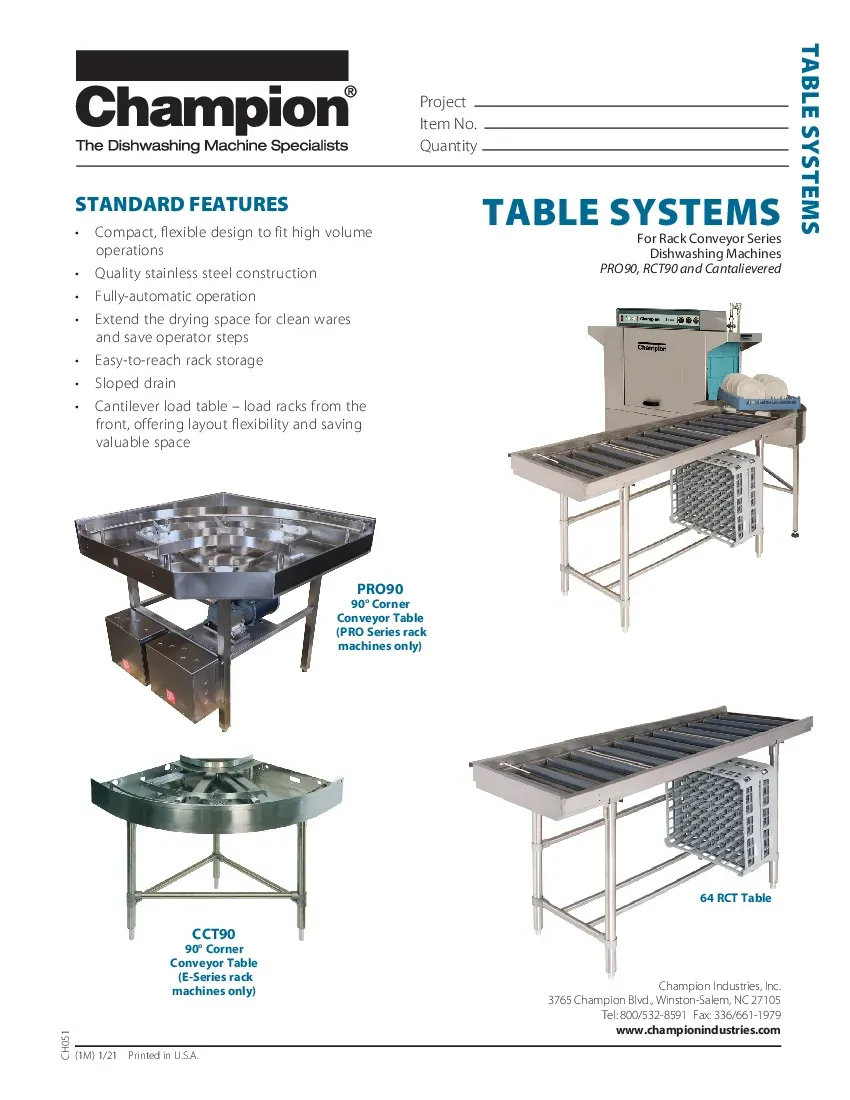

• Model PRO 90 (90° Corner Conveyor Table)
• Vent cowls, stainless steel with 7" stack and locking damper
• Water pressure regulating valve (unmounted) (standard with booster)
• Table limit switch (recommended on all rack conveyor installations) (unmounted)
• Model RCT 64 or RCT 84 Roller Conveyor Table (Contact factory for custom length)
