Name: Berner CLC08-1042A Commercial Series Low Profile Air Curtain
Brand: Berner
SKU: CLC08-1042A
Price: 787.8 USD
Availability: LimitedAvailability

Berner CLC08-1042A Commercial Series Low Profile Air Curtain

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$787.80

Product Protection

Starting at

Reward Points

You will earn 811

$$$ View Berner Promos

View all Berner Air Curtains

Berner CLC08-1042A Specifications

Number of Motors	1
Horsepower	1/5 HP
Speeds	2
Series	Commercial Series
Mounting	Indoor Mounting Only
Heat Type	Unheated
Brand	Berner
Made in	USA
Certifications	cULus
Style	Low Profile
Length (in)	42" Long
Weight	58.00

Additional Information on Berner CLC08-1042A

air-curtain-flyer.pdf

installation-manual.pdf

replacement-parts-diagram.pdf

warranty.pdf

terms-conditions.pdf

berner-clc08-1042a.specsheet.pdf

berner-9503sd020-ra-nema-1roller-arm-door-switch.pdf

berner-9503sd020-p-nema-1-plunger-style-door-switch.pdf

berner-9503mrs1f2-nc-k-magnetic-reed-door-switch.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Berner CLC08-1042A Certifications

cULus

UL (Underwriters Laboratories) approval for the US and Canada

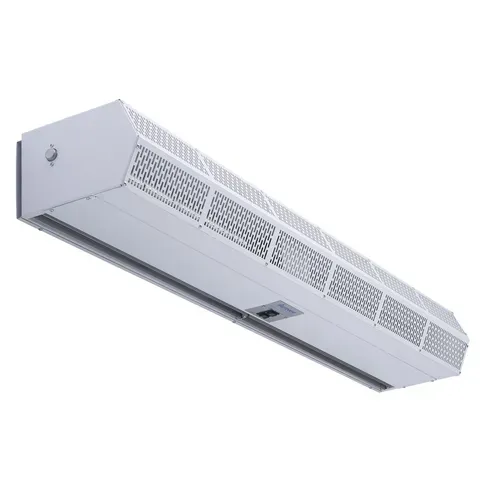

Berner CLC08-1042A Description

Commercial Series Low Profile Air Curtain, 42"L, unheated, (1) 1/5 hp 2-speed motor, for doors up to 8' high, interior mounting only, cULus, Made in USA

The Commercial Series Low Profile Air Curtain is designed for 42” wide doorways of up to 8ft in height for environmental control or 7ft for insect control. Ideal for walk-in coolers, main entrances, service doors, ghost kitchens, conveyor systems, shipping doorways, and other high traffic areas. This air curtain is UL certified, AMCA certified performance, and is made in the USA with a limited 5 year warranty. It creates a steady stream of air over your doorway, keeping outside air separate from your AC or heated air. Features an aluminum housing in white and is designed for indoor mounting only.

Standard Features:

Wall & Top Mounting
8 1/2” high x 13 1/2” deep
1/5 hp two speed motor(s)
Optional: Filter (washable)
Factory installed fan speed switch
White or black powder coated exterior (Optional: Custom Color or Stainless)

Options for Berner CLC08-1042A

Mechanical accessories

Correctional Tamper Proof Package (add suffix -TP to model #) +$153.28 Vibration isolators, (4) required per unit (priced per isolator, for quantities 17+) +$70.79 Vibration isolators, (4) required per unit (priced per isolator, for quantities between 1 - 16) +$91.66 Tandem Mount Performance Kit, includes left & right hand diverter, enhances performance when tandem mounting units, Factory Mounted, one kit required per air curtain +$13.76

Special freight fees

Residential Delivery (Includes Lift Gate) +$367.50 24-48 Hour Call Ahead Fee +$55.65 Lift gate delivery +$215.25 Inside delivery +$184.80 Limited access fee +$185.85 Big city delivery ($50-$500)(contact factory for price) Construction site delivery +$184.80 Remote delivery +$84.00 Detention ( 0-30 minutes) (if the company receiving the delivery causes delays in the unloading of the freight) Detention ( 31-45 minutes) (if the company receiving the delivery causes delays in the unloading of the freight) +$147.00 Detention ( 46+ minutes)( +$160 for every additional 15 minutes) (if the company receiving the delivery causes delays in the unloading of the freight) +$168.00 Re-delivery ($128 Min + Variable Adder Per Wt + Variable Adder Per Zip Code) +$151.20 Re-consignment ($84 min + variable adder per wt + variable adder per zip code) +$102.90 Appointment fee +$52.50 Homeland Security Border Fee +$32.55 Storage/Warehouse Fees (per day) +$88.20 Government Location or Guard Shack +$138.60 Correction of Bills Fee +$42.00

Wall bracket

Tandem Wall Mounting Bracket - used in tandem mounting to join wall mounting plates, requires an independent support per wall plate, One required per pair of air curtains +$6.11

Exterior cabinet finish

Stainless steel exterior finish, add suffix "SS" to model no. (contact factory for lead time) +$233.49 Custom color (from standard color chart) exterior finish, add suffix "CC" to model no. (contact factory for lead time) +$58.82 White powder coat exterior finish, standard Black powder coat exterior finish, add suffix "BK" to model no.

What is included

Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Warranty: Five year parts warranty (unheated units)
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Voltage

120v/50/1-ph 120v/60/1-ph 208v/60/1-ph 220v/50/1-ph 240v/60/1-ph 480/60/3-ph +$394.67 600v/60/3-ph +$394.67
