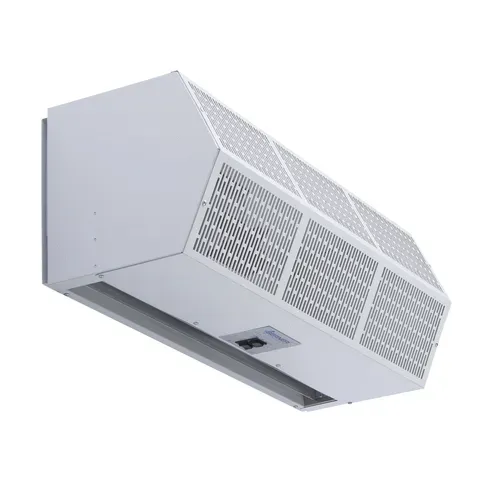

Berner CHD10-2120A Commercial Series High Performance Air Curtain

SKU#: CHD10-2120A
Made in USA
Berner CHD10-2120A Commercial Series High Performance Air Curtain
Free Freight?
Quick Ship
$1,993.06
or enjoy small payments $42.83/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 2034
$$$ View Berner Promos
Berner View all Berner Air Curtains

Berner CHD10-2120A Specifications

Number of Motors2
Speeds3
SeriesCommercial Series
MountingIndoor Mounting Only
Heat TypeUnheated
BrandBerner
Horsepower1/2 HP
Made inUSA
CertificationscULus
StyleHigh Performance
Length (in)120" Long
Weight138.00

Additional Information on Berner CHD10-2120A

air-curtain-flyer.pdf air-curtain-flyer.pdf warranty.pdf warranty.pdf installation-manual.pdf installation-manual.pdf terms-conditions.pdf terms-conditions.pdf replacement-parts-diagram.pdf replacement-parts-diagram.pdf berner-chd10-2120a.specsheet.pdf berner-chd10-2120a.specsheet.pdf berner-9503sd020-ra-nema-1roller-arm-door-switch.pdf berner-9503sd020-ra-nema-1roller-arm-door-switch.pdf berner-9503sd020-p-nema-1-plunger-style-door-switch.pdf berner-9503sd020-p-nema-1-plunger-style-door-switch.pdf berner-9503mrs1f2-nc-k-magnetic-reed-door-switch.pdf berner-9503mrs1f2-nc-k-magnetic-reed-door-switch.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Berner CHD10-2120A Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

Berner CHD10-2120A Description

Commercial Series High Performance Air Curtain, 120" long, unheated, (2) 1/2 hp three speed motors, for door height up to 10-feet high, indoor mounting only, cULus, MADE IN USA
The Commercial Series High Performance Air Curtain is designed for 120” wide doorways of up to 10ft in height for environmental control or 8ft for insect control. Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, as an alternative to vestibules, main entrances, and other high traffic areas. This air curtain is UL certified, AMCA certified performance, complies with ASHRAE 90.1 requirements, and is made in the USA with a limited 5 year warranty. It creates a steady stream of air over your doorway, keeping outside air separate from your AC or heated air. Features an aluminum housing in white and is designed for indoor mounting only.

Options for Berner CHD10-2120A

Mechanical accessories
Special freight fees
Exterior cabinet finish
What is included
  • Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
  • Warranty: Five year parts warranty (unheated units)
  • Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order
Voltage

Berner CHD10-2120A Accessories

Berner 80LWB120C Washable Air Inlet Filter
Berner 80LWB120C Washable Air Inlet Filter 80LWB120C
$223.66
Berner 65VS-120NE Nozzle Extension
Berner 65VS-120NE Nozzle Extension 65VS-120NE
$220.00
Berner 66ADS000DMB Mounting Bracket
Berner 66ADS000DMB Mounting Bracket 66ADS000DMB
$11.00
Berner 66LWA000WMB-AZ-007-SS Z Wall Bracket
Berner 66LWA000WMB-AZ-007-SS Z Wall Bracket 66LWA000WMB-AZ-007-SS
$101.09
Berner 66LWA000WMB-AZ-007-WP Z Wall Bracket
Berner 66LWA000WMB-AZ-007-WP Z Wall Bracket 66LWA000WMB-AZ-007-WP
$93.24
