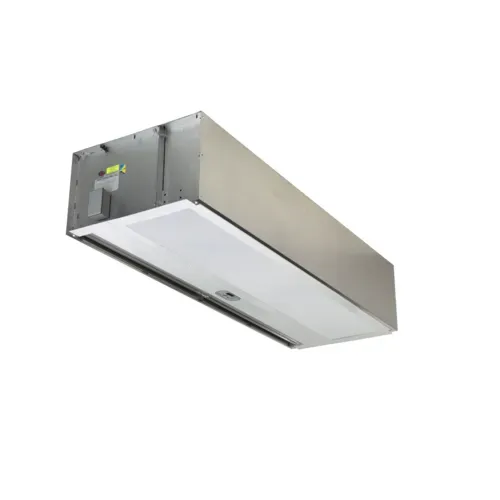

Berner ARD12-1036E Architectural Series Recessed 12 Air Door

Name: Berner ARD12-1036E Architectural Series Recessed 12 Air Door
Brand: Berner
SKU: ARD12-1036E
Price: 2404.77 USD
Availability: LimitedAvailability

MPN#: ARD12-1036E

Berner ARD12-1036E Architectural Series Recessed 12 Air Door

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).

Free Freight?

Quick Ship

$2,404.77

or enjoy small payments $51.68/mo.

Product Protection

Starting at

Reward Points

You will earn 2405

$$$ View Berner Promos

View all Berner Air Curtains

Berner ARD12-1036E Accessories

Berner 9502SC1600-R Digital Thermostat 9502SC1600-R

$110.00

Berner 9503MRS1F2-NC-K Magnetic Reed Door Switch 9503MRS1F2-NC-K

Call for price

Berner 9503MRS1F2NCK-BR Magnetic Reed Door Switch 9503MRS1F2NCK-BR

$10.48

Details
Options
Q & A (0)

Description

Berner ARD12-1036E Description

Architectural Series Recessed 12 Air Door, 36" long, electric heated, (1) 1/2 hp motor, ten speed, hinged white aluminum bottom access panel, for mounting heights up to 12', 14kW, cULus, MADE IN USA

Options

Options for Berner ARD12-1036E

Special freight fees

Residential Delivery (Includes Lift Gate) +$367.50

24-48 Hour Call Ahead Fee +$55.65

Lift gate delivery +$215.25

Inside delivery +$184.80

Limited access fee +$185.85

Big city delivery ($50-$500)(contact factory for price)

Construction site delivery +$184.80

Remote delivery +$84.00

Detention ( 0-30 minutes) (if the company receiving the delivery causes delays in the unloading of the freight)

Detention ( 31-45 minutes) (if the company receiving the delivery causes delays in the unloading of the freight) +$147.00

Detention ( 46+ minutes)( +$160 for every additional 15 minutes) (if the company receiving the delivery causes delays in the unloading of the freight) +$168.00

Re-delivery ($128 Min + Variable Adder Per Wt + Variable Adder Per Zip Code) +$151.20

Re-consignment ($84 min + variable adder per wt + variable adder per zip code) +$102.90

Appointment fee +$52.50

Homeland Security Border Fee +$32.55

Storage/Warehouse Fees (per day) +$88.20

Government Location or Guard Shack +$138.60

Correction of Bills Fee +$42.00

Toggle disconnects

Toggle disconnect (contact factory for part numbers and pricing)

Electrical accessories

Wi-Fi Controller – Factory Installed (add WCA to model #), enables wireless control of the air curtain(s) via the Berner App. NOTE: Requires on-site, secure Wi-Fi connection (provided by others), the Berner App – allows air curtain(s) to be programmed & operated via smart phone +$276.01

Intelliswitch Display Kit – Remote Mounted Kit, with 20' cable for LED display +$111.53

Serial Connection Cable, for programming multiple air curtains from a single Intelliswitch +$140.55

Thermostat

Thermostat, 2-pole, remote mounted +$43.80

Finishes

Custom painted hinged bottom cover finish +$117.64

SS Stainless steel hinged bottom cover finish +$146.66

White aluminum hinged bottom cover finish, standard

What is included

Warranty: Two year parts warranty (heated units)
Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Voltage

208v/60/1-ph

208v/60/3-ph

220v/50/1-ph

240v/60/1-ph

240v/60/3-ph

380V/50/3-ph (contact factory for price)

480/60/3-ph +$270.42

600/60/3-ph +$270.42

Q & A

Berner ARD12-1036E Architectural Series Recessed 12 Air Door

Berner ARD12-1036E Specifications

Number of Motors	1
Speeds	10
Series	Architectural Series
Heat Type	Electric Heat
Mounting	Mounting Heights up to 12'
Brand	Berner
Horsepower	1/2 HP
Made in	USA
Certifications	cULus
Style	Recessed
Length (in)	36" Long
Weight	135.00
